GW Instek  |  SKU: 03UNDM533000

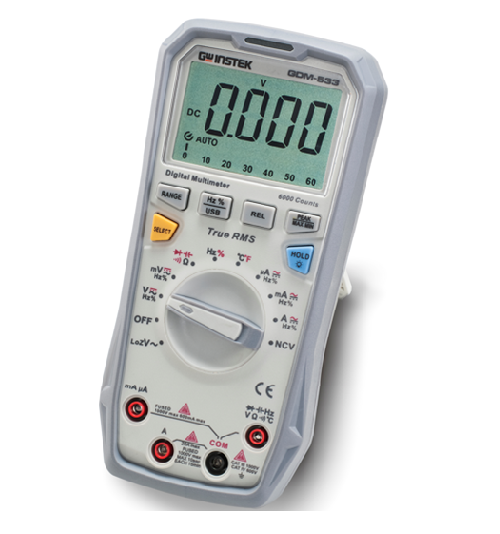

GW Instek GDM-533 6000 Counts Handheld Digital Multimeter with True RMS Measurement and USB Interface

The GDM-500 series portable multimeter is a compact, high-accuracy, battery-powered multimeter designed to meet the application requirements of service technicians. The design of the GDM-500 series follows some features typical of mobile devices : automatic power off to preserve battery life, a large backlit display for a crisp view, a rotary and push-button selector for ease of use, and NCV (non-contact voltage detection) function for outdoor use.

The basic functions of the series match the extended functionality of benchtop multimeters: fuse-protected current input, true rms for accurate AC measurements, audible/visual overload alarm, automatic measurement, duty cycle and relative mode. The compact, reliable and economical GDM-500 series is ideal for a variety of uses.

Description
MODEL GDM-533
SKU 03UNDM533000
Max. Display 6000
Auto Ranging √
Analog Bar √
True RMS √
Display Backlight √
Auto Power off √
Curr. Range Protection Varistor & PTS
DC Voltage 1000V
AC Voltage 1000V
DC Current 20A
AC Current 20A
Resistance 60MΩ
Capacitance 60mF
Frequency 10MHz
Diode √
Continuity √
Temperature √
Duty Cycle(%) √
Transistor(hFE)
NCV Function √
REL √
Data Hold √
Peak Hold √
MAX MIN √
LoZ ACV √
LPF ACV
Audible / Visual Alarm √
AC+DC Measurement
Interface USB
Safety Rating CAT III 1000V
CAT IV 600V

Features

GDM-533 FEATURES

  • 6000 Counts Auto/Manual Ranging
  • 31 Segments Analogue Bar
  • LoZ ACV Measurement
  • ACV Measurement up to 1000V
  • Current Measurement up to 20A
  • Temperature Measurement
  • Audible/Visual Alarm when Overload
  • True RMS/USB Interface
  • GDM- PC free Remote Software
