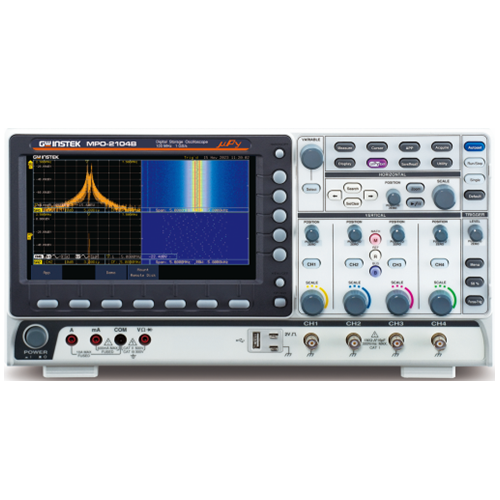

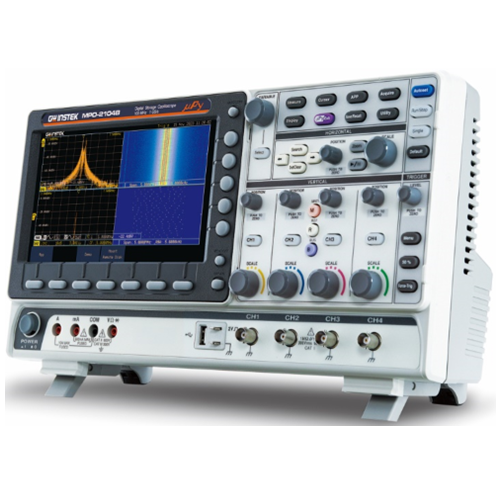

GW-Instek MPO-2104B 4 Channel Multifunction Programmable Digital Oscilloscope

€1.905,00
Tax included Shipping calculated at checkout.

GW Instek launches the MPO-2000 series multifunctional programmable oscilloscope. This oscilloscope also includes a spectrum analyzer, arbitrary waveform generator, digital multimeter and DC power supply. In addition to the five-in-one multifunctional architecture, a Python script function has also been innovatively introduced in the MPO-2000, so that users can develop program control of a small automated test system by setting up a single or multi-unit test without a PC, hence the name MPO.

The MPO-2000 series provides Basic and Professional versions (model suffixes are represented by B and P). In terms of bandwidth, the Basic version is 100 MHz and the Professional version is 200 MHz, and the main difference is that the Professional version provides a larger program memory and system resources to process larger waveform data. The series provides USB CDC device control to meet the needs of integrated multi-unit testing.

A Python GUI library is provided to allow users to modify the original built-in Python APP or write their own custom programs. The Basic version features the provided demo programs that can be run (including programs with USB device control and GUI) and Python programs provided by third parties. In addition, the Professional version offers more diverse bus decoding functions, including FlexRay, USB-PD and I2S. Several free bus decoding functions are included in the standard configuration, making MPO-2000 even more competitive.

Description
model

MPO-2104B
SKU 01MP214B00GS
Digital Storage Oscilloscope 100MHz, 4-channel
Spectrum Analyzer yes
dual channel 25MHz AWG yes
5,000 counts DMM yes
Power Supply yes









Features

MPO-2000 series features

  • MPO-2000P:200MHz;4CH/2CH
    MPO-2000B:100MHz;4CH/2CH
  • Allow to use Python scripts to control for automation purpose
  • Dual Channel Spectrum analyzer with Spectrogram
  • I2C/SPI/UART/CAN/LINserial bus trigger and decoding function
  • MPO-2000P:CAN FD, USB 2.0(full speed), FlexRay, USB-PD, I2Sdigital decoding
  • MPO-2000B: CAN FD, USB 2.0(full speed) digital decoding.
  • MPO-2000P: Supports USB HID Protocol Which can be used to connect Keyboard, Mouse and Barcode Scanner Under Python Script Control
  • MPO-2000P: Supports USB Host CDC-ACM Protocol, which Controls Other GW Instek Instruments.
  • Data log function is able to track signal changes up to 1000 hours
  • Network storage function
  • Equips with a spectrum analyzer; a dual channel 25MHz AWG; DMM and power supply.
  • Power Supply: Dual channel output, 1V to 20V continuously adjustable (0.1V step)

Interface

  • USB Host port: front panel, for storage device,
  • Supports USB HID protocol, which can be used to connect keyboard, mouse and barcode scanner under Python script control
  • Supports USB Host CDC-ACM protocol, and can control other GW Instek instruments under Python script control, such as PSW, PFR, PPX, PEL, GDM series.
  • USB Device port: rear panel, for remote control (USBTMC protocol).
  • Ethernet port as standard.

Software and Drivers

  • PC software (OpenWave software)
  • LabVIEW driver

Standard Accessories
Power Cord, Certificate of Calibration,
Passive probe (one probe per channel)
GTL-110 BNC-BNC cable*2
GTL-105A Alligator Clip test lead
GTL-207 Banana plug test lead

Option
MP2-PRO: Basic version upgrade to Professional version
Part No:11MP-2PRO0C01

Manuals

MPO-2000_User_ManualMPO-2000_DatasheetMPO-2000_Programming_Manual_ENMPO-2000_Python_Tutorial_and_Application_Handbook_EN
