Rigol  |  SKU: DS8034-RSKU

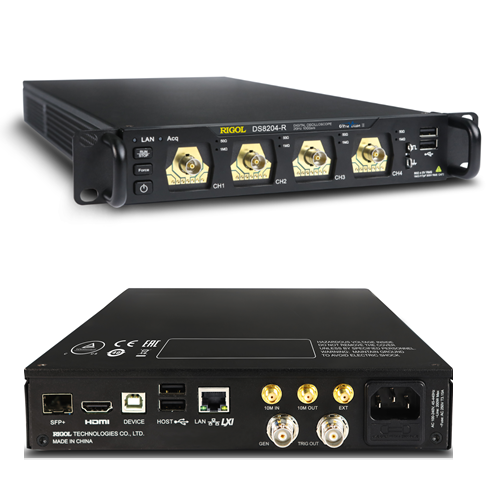

Rigol DS8000-R

DS8000-R series is a medium and high-end digital oscilloscope with a compact size designed on the basis of the ASIC chip (RIGOL self-owns its intellectual property right) and UltraVision II technical platform developed by RIGOL. It is compact and thin in
design. It supports system integration of multiple devices, rack mount installation, and remote system operation to meet the
system requirements for industrial automation test system. DS8000-R series oscilloscope has an analog bandwidth of up to 2 GHz, supporting multi-device synchronous triggering, available to be extended to 512 channels. It provides an excellent solution
for users to meet their middle and high-speed requirement for the system integration test and synchronization requirement for multi-channel data acquisition.

Configuration

Description
Model DS8104-R DS8204-R DS8034-R
Bandwidth 1 GHz 2 GHz 350 MHz
Rising Time (50 Ω) ≤ 350 ps ≤ 225 ps ≤ 1 ns
Max. Sample Rate 10G (Single)
5G (Half)
2.5G (Full)		 10G (Single)
5G (Half)
2.5G (Full)		 10G (Single)
5G (Half)
2.5G (Full)
Peak Detection 400 ps glitches 400 ps glitches 800 ps glitches
Memory Depth 500 Mpts 500 Mpts 500 Mpts
Recording/Playback ≥ 450k wfms ≥ 450k wfms ≥ 450k wfms
Capture Rate ≥ 600k wfms/s ≥ 600k wfms/s ≥ 600k wfms/s
Analog Channels 4 4 4
Sampling Mode Real-time Real-time Real-time

Features

DS8000-R series features

  • Analog channel bandwidth: 350 MHz, 1 GHz, and 2 GHz
  • Up to 10 GSa/s real-time sample rate (for DS8104-R/DS8204-R), 5 GSa/s (for DS8034-R)
  • 4 analog channels, 1 EXT input channel
  • Standard memory depth up to 500 Mpts
  • High waveform capture rate (over 600,000 wfm/s)
  • Low jitter, multiple-device synchronization (<200 psRMS, typical)
  • High-speed data communication interface (10 GE SFP+), ensuring the reliable transmission of massive data
  • Integrates 6 independent instruments into 1, including digital oscilloscope, spectrum analyzer, AWG (option), digital voltmeter,,6-digit counter and totalizer, and protocol analyzer (option)
  • Available to be extended to 512 channels, supporting synchronous acquisition (with the multi-channel synchronization module)
  • Real-time eye diagram and jitter analysis software (option for DS8104-R/DS8204-R, but unavailable for DS8034-R)
  • Built-in advanced power analysis software (option)
  • Operating temperature low below -40℃, available to be used for signal monitoring in some special conditions
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), 10 GE SFP+, HDMI, TRIG OUT, 10 MHz In, and 10 MHz Out
    Web Control remote command
  • Compact and thin design, save rack space, 1U rack mount kit (standard)
  • Software development kit available for users to meet their customized development according to their specific scenarios
  • Easy-to-use on-site multi-channel synchronization calibration kit, enabling you to view multiple channels synchronously
