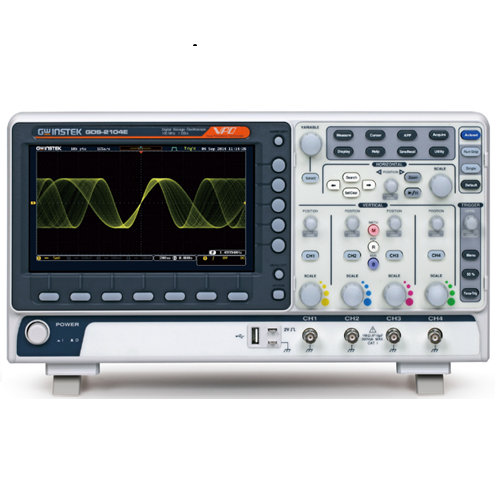

GW-Instek GDS-2204E 200MHz Digital Oscilloscope . 4 Channels

The GDS-2000E series of digital oscilloscopes offers bandwidth configurations of 200MHz, 100MHz and 70MHz with 2 and 4 channels. The two-channel model allows a real-time sampling rate of 1GSa/s for each channel; the four-channel model allows the maximum real-time sampling rate of 1GSa/s. The 8-inch 800*480 TFT LCD display and minimum vertical range of 1 mV/div enable the GDS-2000E series to measure complex weak signals and clearly display measurement results.

With respect to memory depth, the GDS-2000E series digital oscilloscopes offer 10Meg memory to enable users to fully store and analyze waveforms. Users, depending on what the application requires, can select 1K, 10K, 100K, 1M or 10M as the memory depth value. The short selected memory depth with the high sampling rate , enable users to observe rapidly changing waveforms, and on the other hand, the high memory depth selection allows users to analyze entire waveforms that are constantly changing. The GDS-2000E series features waveform search functions and functions for segmented memory analysis. The segmented memory can be divided into up to 29,000 sections to enable users to bypass any unimportant waveforms and quickly search for all required waveforms. With the waveform search function, users can quickly search for the desired waveforms based on the required trigger conditions.
Acquisition and display of waveforms is optimized through the use of VPO (Visual Persistence Oscilloscope) technology
