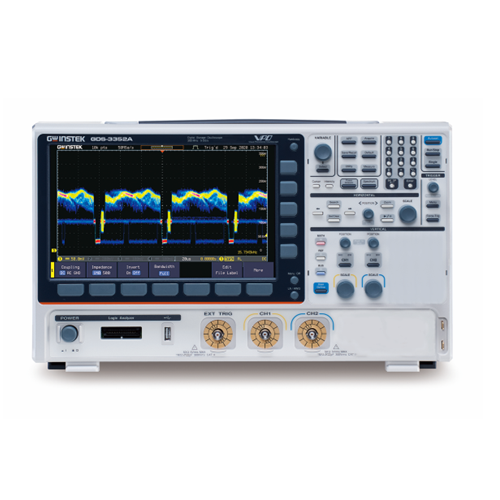

GW-Instek GDS-3352A 350 MHz digital oscilloscope . 2 Channels

The GDS-3000A series is GW-Instek's flagship product of next-generation digital memory oscilloscopes. 650 MHz and 350 MHzmodels are available with two channels, four channels and the 16-channel option of the logic state analyzer.
The deep acquisition memory of each channel is up to 200 Mpts and is the best feature when compared with instruments in the same category.
The sampling rate is 5GSa/s on half channels and 2.5GSa/s on all channels . The display is 10.2" LCD and TFT and the RGB display output is 8 bits for both allowing users to clearly analyze the magnitude of the measured signal.

As for the waveform update rate, GDS-3000A reaches up to 200,000 wfm/s, which allows users to easily observe sporadic abnormal signals. Segmented memory can continuously capture up to 490,000 segments, which can be combined with trigger condition settings to circumvent unchanged waveforms over a long period and record only significant waveforms, providing the most efficient way to use memory. Standard input impedance selections of 1 M ohm and 50 ohm allow users to select the input impedance according to different measurement requirements in order to achieve impedance matching.

For frequency domain measurement, the instrument is equipped with a dual-channel spectrum analyzer, which allows users to measure and analyze frequency domain signals from two channels simultaneously. It is also equipped with the Spectrogram function, which allows users to easily observe the complex frequency domain fluctuations that we proportionally decompose into simple overlapping waves in order to understand the signal power distribution.

Power is available on one side of the GDS-3000A for 50 MHz (GCP-530) and 100 MHz (GCP-1030) current probes . This feature saves users the cost of buying the power supply for current probes and saves the user from carrying the power supply separately.

The GDS-3000A series, a high-tech platform offering thoughtful functionality, provides very high performance and finds use in both the general and professional markets.
