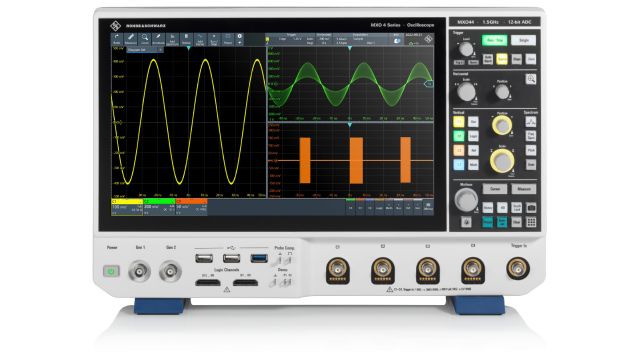

R&S® MXO4-BNDL 1.5 GHz Oscilloscope, 4 Channels

The package includes :

MXO44 series digital oscilloscope 4 channel 200 MHz
MXO-B2415 1.5 GHz Bandwidth option (1)
MXO4-PK1 Application Bundle, containing:
- MXO4-B6 ARB GENERATOR,
- MXO4-K31 POWER ANALYSIS,
- MXO4-K510 LOW SPEED SERIAL BUSES,
- MXO4-K520 AUTOMOTIVE PROTOCOLS,
- MXO4-K530 SERIAL TRIGGER AND DECODING AEROSPACE AND DEFENSE MIL-STD-1553/ARINC 429
- MXO4-K36 FREQUENCY RESPONSE ANALYSIS (Bode Plot).

(1) 1.5 GHz analog bandwidth in interleave mode with 5 Gsample/s real-time sampling rate.

Features common to the entire series

• Channels: 4 on all models
• Bandwidth: 200 MHz to 1.5 GHz
• Sampling rate: up to 5 Gsample/s
• Display refresh rate: 4.5 million waveforms per second
• Vertical resolution: 12 bits standard up to 18 bits in HD mode
• Acquisition memory: 400 Mpt per channel (optional up to 800 Mpt interleaved)
• Trigger: digital with reset frequency <21ns and jitter equal to 1ps
• Screen: 13.3" Full HD capacitive touchscreen
