Rohde & Schwarz | SKU: 1802.1008P41

R&S® MXO54 1GHz Oscilloscope, 4 Channels

Name: R&S® MXO54 1GHz Oscilloscope, 4 Channels
Brand: Rohde & Schwarz
SKU: 1802.1008P41
Price: 27720.00 EUR
Availability: InStock

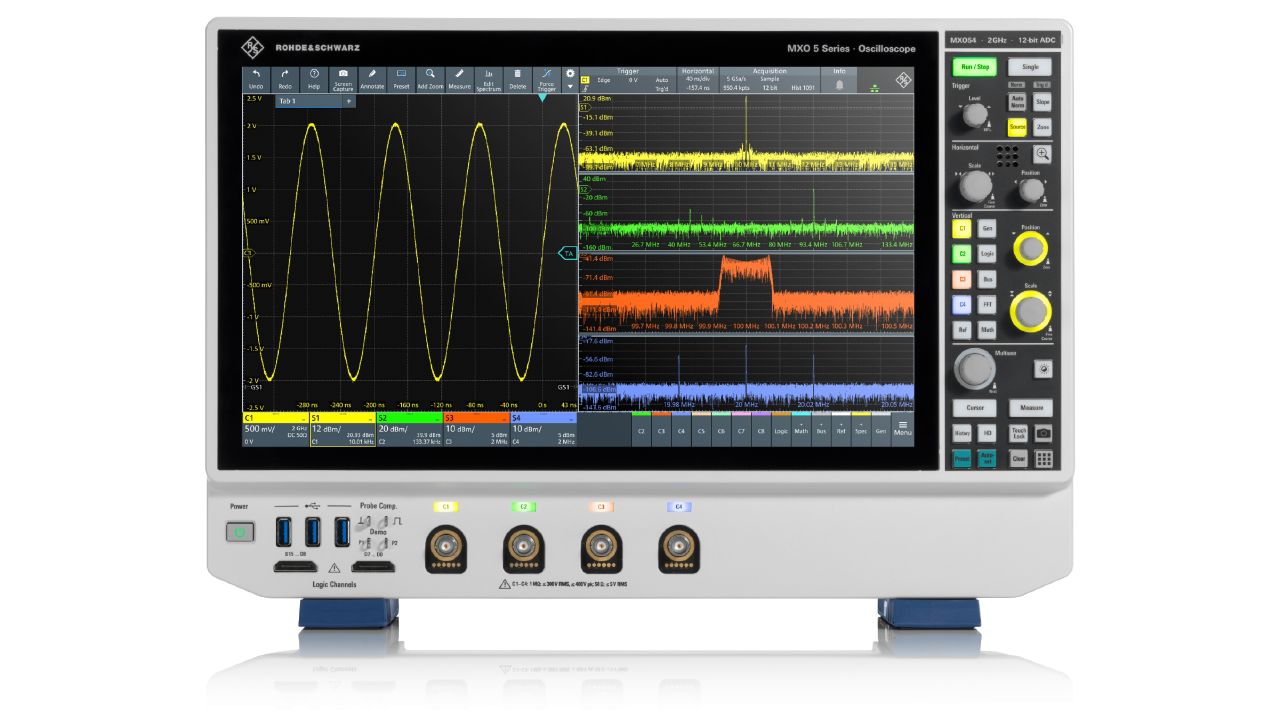

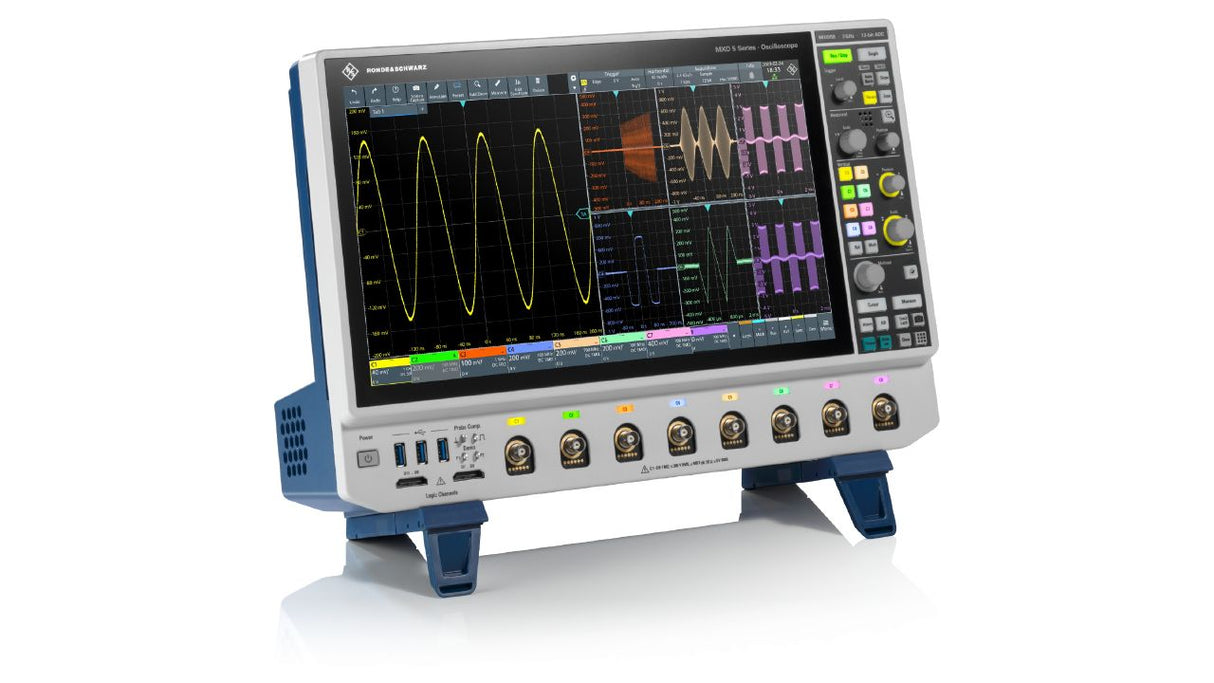

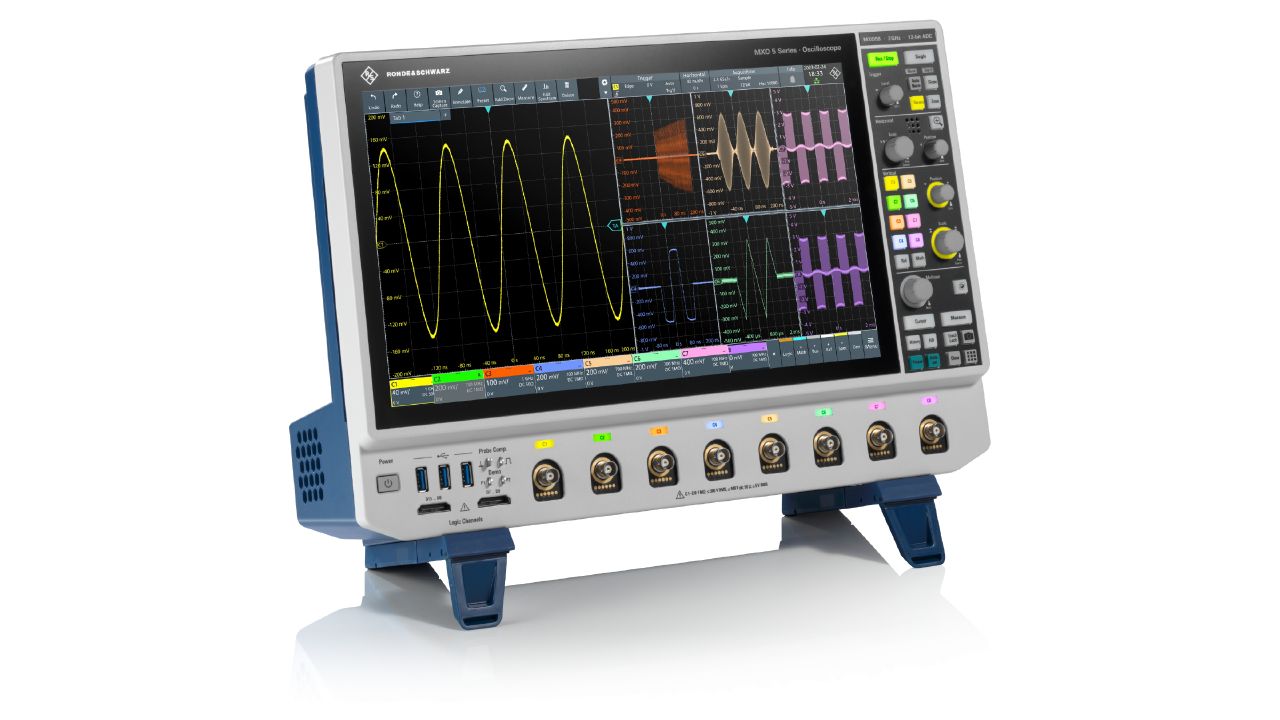

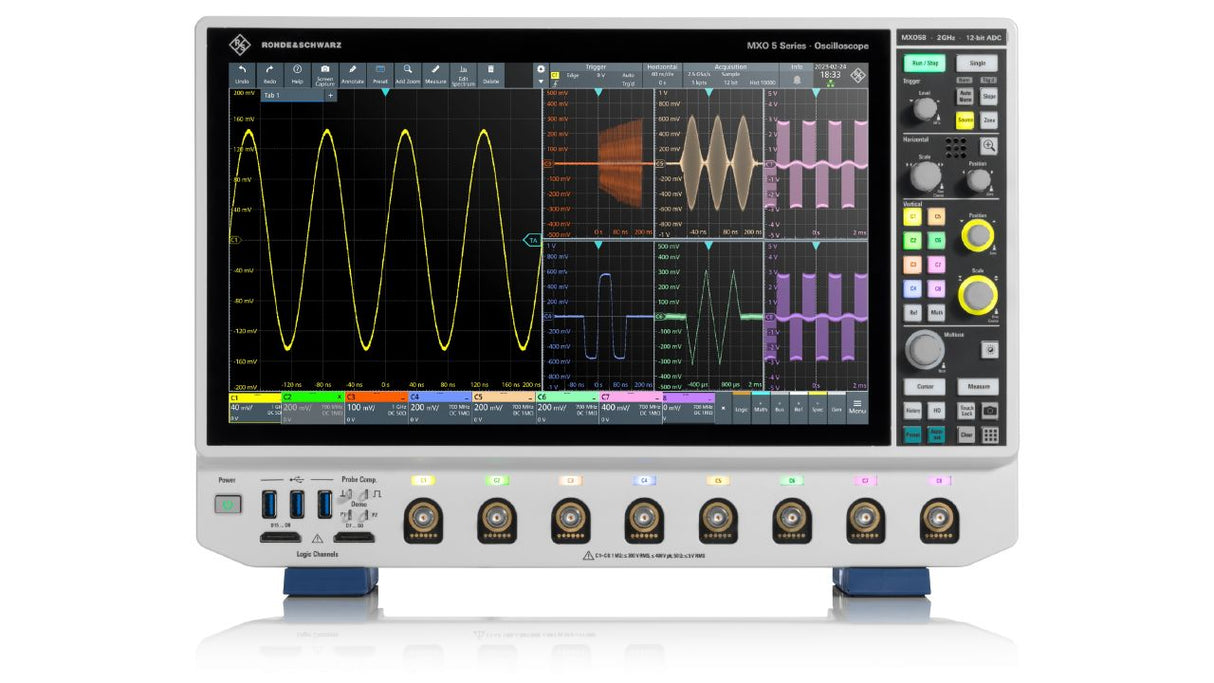

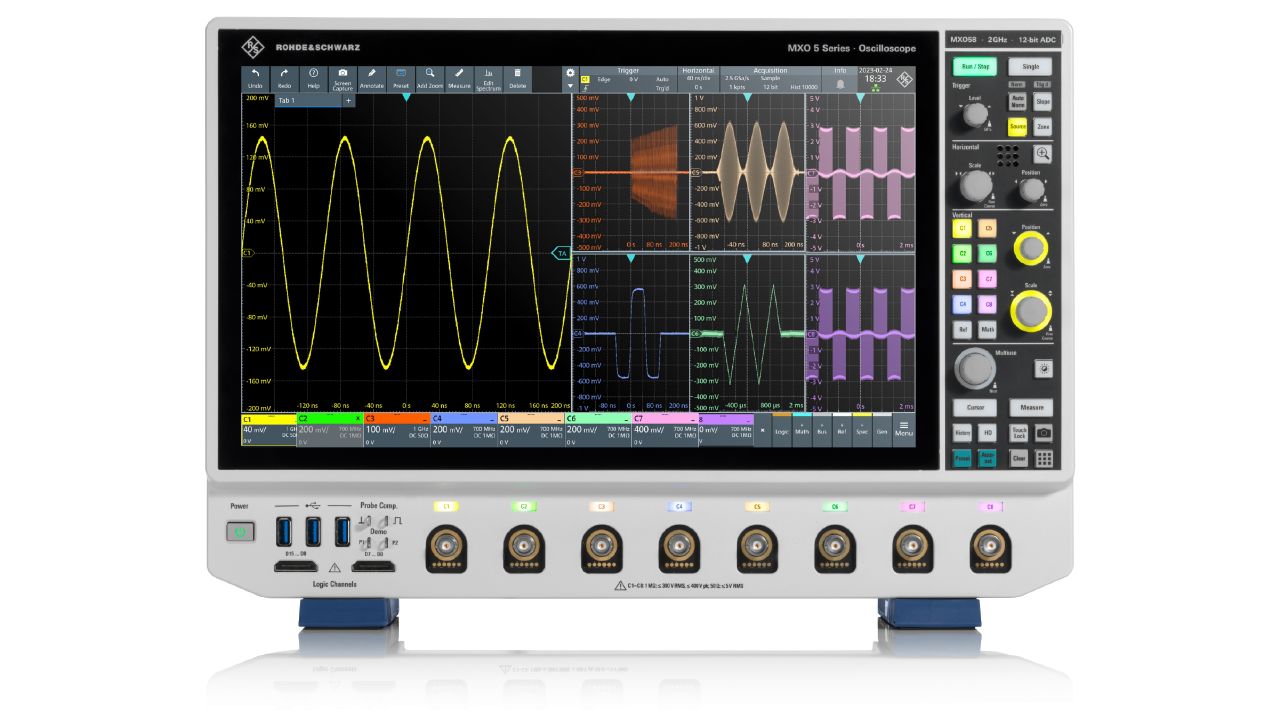

The Rohde & Schwarz MXO 54oscilloscope complete with the MX05-B2410 upgrade is a 12-bit oscilloscope with 1GHz bandwidth, 4 analog channels and 16 digital channels ( which can be activated with option B1 , optional logic probes), 15.6" capacitive Full HD touchscreen , with a sampling rate of up to 5 Gsa/s and a standard memory depth of 500 Megapoints. The MXO 5 series thus comes with innovative technology that guarantees in 'analysis fast and accurate results. 4- or 8-channel oscilloscopes are available in the series. The extraordinary screen and minimal noise during operation maximize its performance and minimize power consumption.

The MXO 54 350 MHz model represents the basic version of the MXO5 series.

Description

R&S®MXO 54 basic vers.	4 ch	≥ 350 MHz
R&S®MXO 54 with -B245 option	4 ch	≥ 500 MHz
R&S®MXO 54 with -B2410 option	4 ch	≥ 1 GHz
R&S®MXO 54 with -B2420 option	4 ch	≥ 2 GHz
R&S®MXO 58 basic vers.	8 ch	≥ 100 MHz
R&S®MXO 58 with -B282 option	8 ch	≥ 200 MHz
R&S®MXO 58 with -B283 option	8 ch	≥ 350 MHz
R&S®MXO 58 with -B285 option	8 ch	≥ 500 MHz
R&S®MXO 58 with -B2810 option	8 ch	≥ 1 GHz
R&S®MXO 58 with -B2820 option	8 ch	≥ 2 GHz
