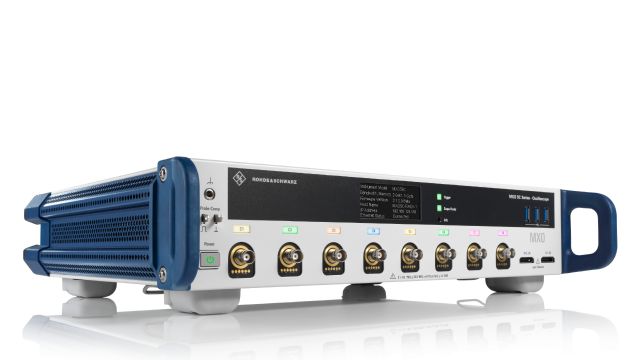

R&S®MXO5C-410 oscilloscope, 1 GHz, 4 channels
R&S®MXO5C-410 oscilloscope, 1 GHz, 4 channels is backordered and will ship as soon as it is back in stock.
R&S®MXO5C-410 oscilloscope, 1 GHz, 4 channels
Description
Description
The R&S®MXO 5C series from Rohde & Schwarz uses the same building blocks as the MXO 5 series oscilloscopes. It offers the same outstanding specifications in a compact form. Four- and eight-channel MXO 5C models and bandwidths ranging from 100 MHz up to 2 GHz provide superior time and frequency measurements. The series' 2U height, offers the high channel density you need. It can be placed on a rack with other test equipment or used in benchtop applications for more vertical space. The low-power, paper-like e-ink display shows key information such as connectivity status. The oscilloscope can be remotely controlled via LAN using the built-in web browser and virtual front panel.
R&S®MXO5C-410 OSCILLOSCOPE , 1 GHz
| R&S®MXO5C-43 | 4 ch | ≥ 350 MHz (upgradable) |
| R&S®MXO5C-45 | 4 ch | ≥ 500 MHz (upgradable) |

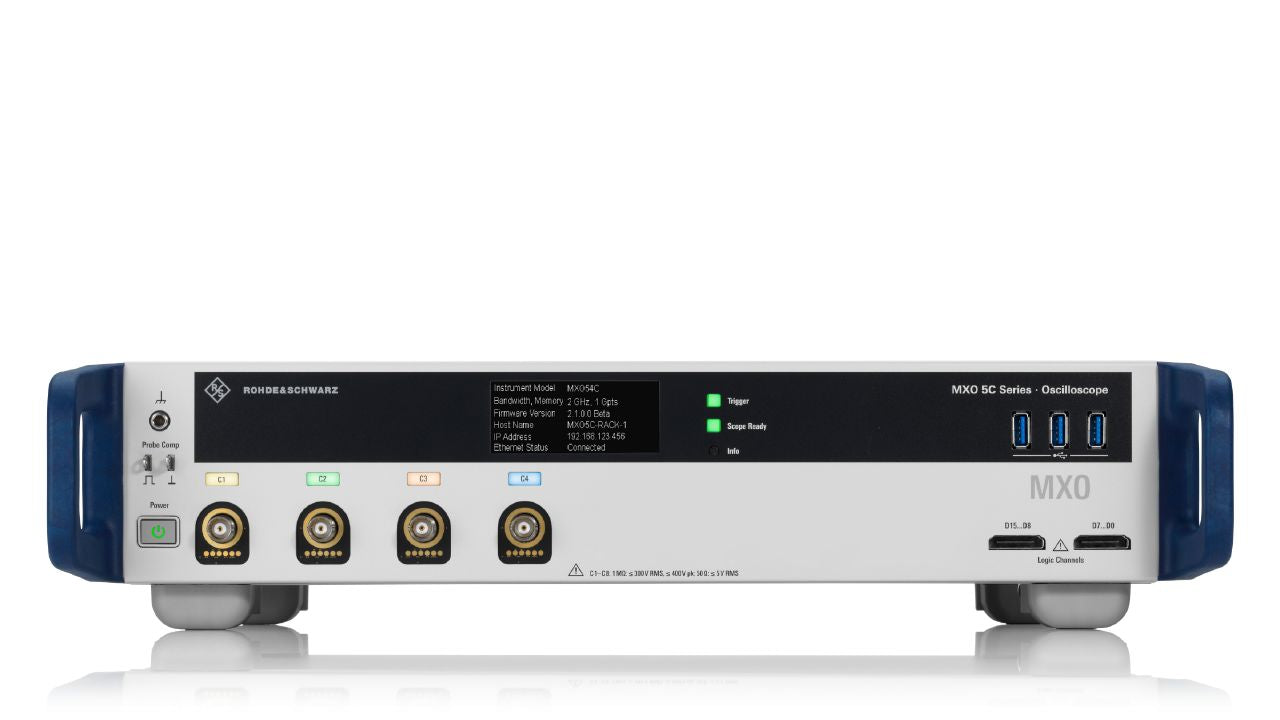

| R&S®MXO5C-410 | 4 ch | ≥ 1 GHz (upgradable) |
| R&S®MXO5C-420 |
4 ch | ≥ 2 GHz |

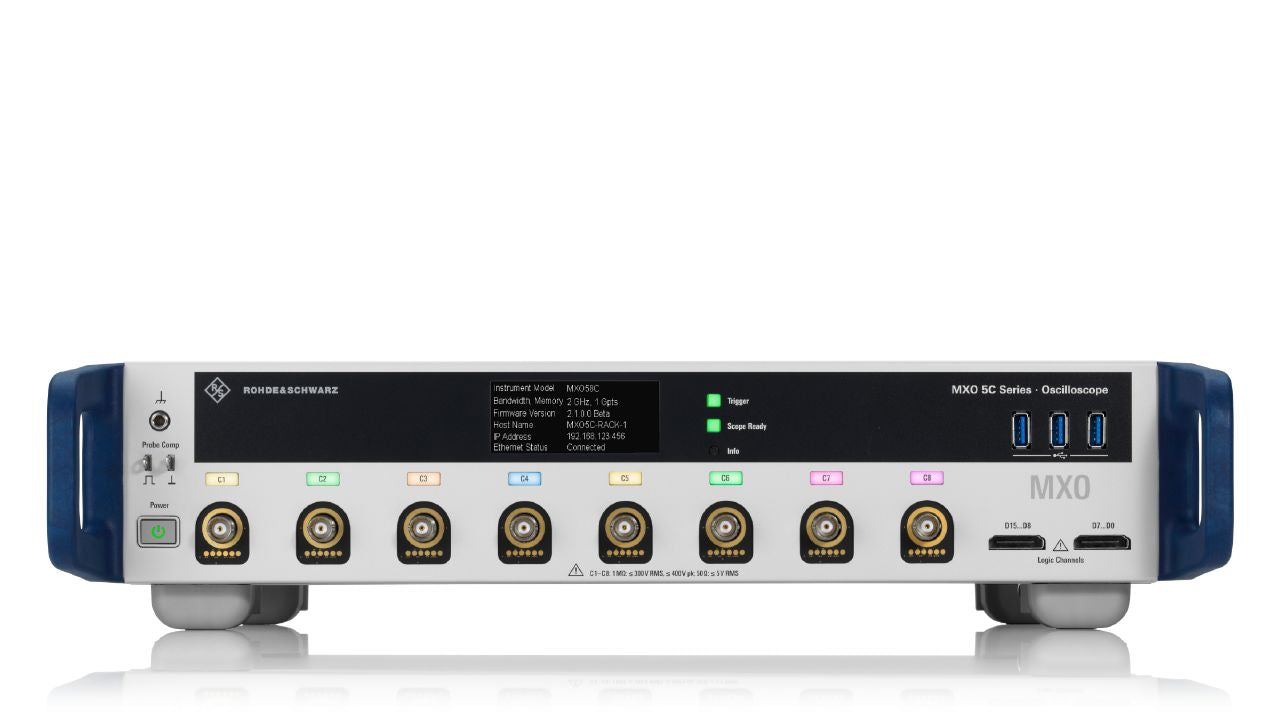

| R&S®MXO5C-81 | 8 ch | ≥ 100 MHz(upgradable) |
| R&S®MXO5C-82 | 8 ch | ≥ 200 MHz(upgradable) |
| R&S®MXO5C-83 | 8 ch | ≥ 350 MHz (upgradable) |
| R&S®MXO5C-85 | 8 ch | ≥ 500 MHz (upgradable) |
| R&S®MXO5C-810 | 8 ch | ≥ 1 GHz (upgradable) |
| R&S®MXO5C-820 | 8 ch | ≥ 2 GHz |
Features of the Rohde & Schwarz MXO 5C series:
- Bandwidth: 4 channels: 350 MHz - 2 GHz | 8 channels: 100 MHz - 2 GHz

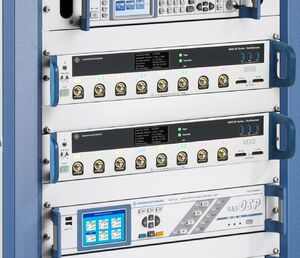

- 2U height making it an ideal choice for rack applications
- Built-in e-ink display with key information such as IP and instrument status for quick setup
- The same outstanding specifications as the MXO5 series oscilloscope:
- World's fastest oscilloscope: 4.5 million waveforms/sec
- Industry-leading system architecture: 12-bit ADC
- The deepest standard memory in its class: 500 million points
- Industry-leading spectrum acquisition speed: 45,000 FFT/s and up to 4 spectra
Accessories included:
1 x Quick Start Guide
1 x Power cable
4 x Passive probes
Downloads:
Datasheet
User Manual
Specification
Getting started
Brochures
