Rigol  |  SKU: DHO1072SKU

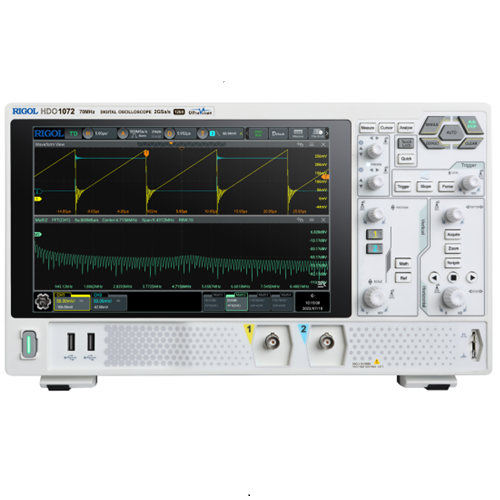

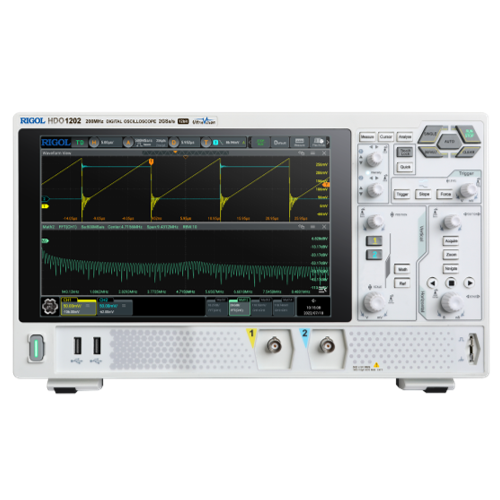

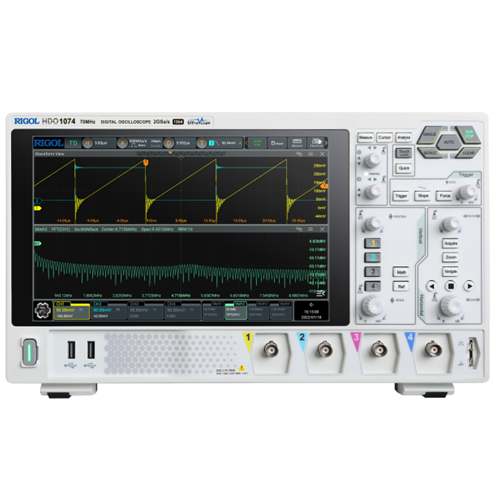

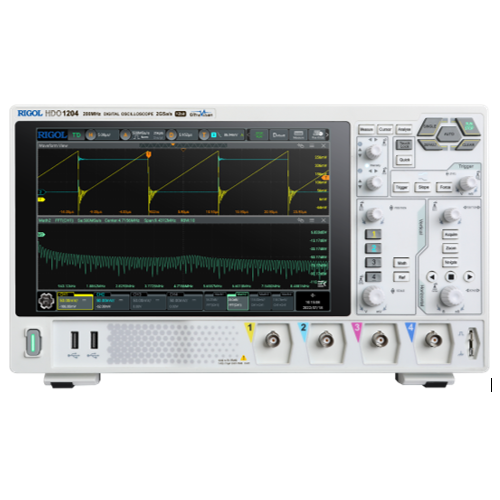

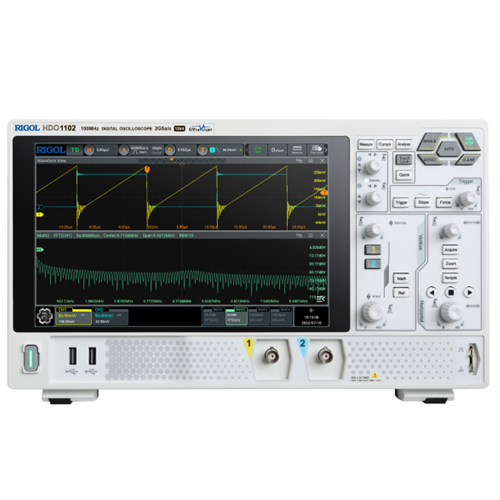

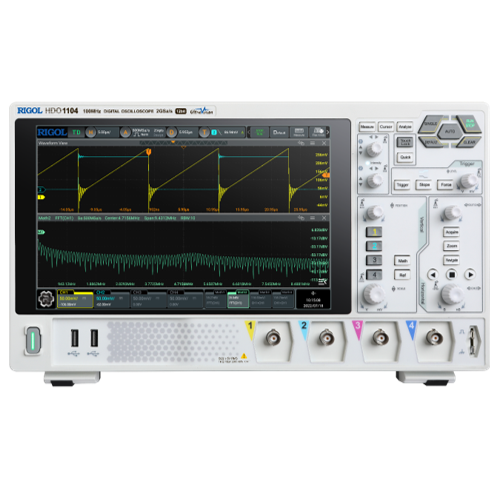

Rigol DHO1000

The DHO1000series digital oscilloscope is designed to meet the design, debugging, testing requirements of the main oscilloscope market.This new series employs the brand new "Centaurus" chipset developed by Rigol. It is capable of achieving a waveform acquisition rate of 1500000 wfms/s via UltraAcquire mode, possesses a memory depth of 100Mpts, 12-bit vertical resolution. All these features are combined with excellent performance of noise characteristic and excellent vertical accuracy. The maximum to meet a wide variety of use requirements and the highest accuracy allowing for an extraordinary experience in the T&M field.

Configuration

Description
Model DHO1072 DHO1074 DHO1102 DHO1104 DHO1202 DHO1204
Bandwidth 70 MHz 100 MHz 200 MHz
Channels 2+EXT 4+EXT 2+EXT 4+EXT 2+EXT 4+EXT
Rise Time ≤5 ns ≤3.5 ns ≤1.75 ns
Vertical Res. 12 bits
Sample Rate 2G (S) | 1G (A) 2G (S) | 1G (H) | 500M (A) 2G (S) | 1G (A)
Mem. (Std) 50M (S) | 25M (A) 50M (S) | 25M (H) | 12.5M (A) 50M (S) | 25M (A)
Mem. (Opt) 100M (S) | 50M (A) 100M (S) | 50M (H) | 25M (A) 100M (S) | 50M (A)
Capture Rate 50k (Vector) | 1.5M (UltraAcquire)
Rec/Playback Up to 500,000 frames
Peak Detect Capture glitches as narrow as 2 ns

Features

DHO1000 series features

  • Brand-new chipset "Centaurus" developed by RIGOL
  • Ultra-low noise floor for cleaner signals, measuring small signals accurately
  • 12-bit vertical resolution[1]
  • 70/100/200 MHz analog bandwidth (selectable), 2/4 analog channels, and 1 EXT channel
  • Up to 2 GSa/s real-time sample rate
  • Max. memory depth: 100 Mpts (optional)
  • Vertical sensitivity range: 500 μV/div to 10 V/div
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
  • 10.1'' 1280*800 HD touch display
  • User-friendly Flex Knobs, bringing smoother interaction
  • Standard photoelectric encoder operating knobs, effectively prolonging its service life
  • Standard USB Device & Host, LAN, and HDMI interfaces
