Rigol  |  SKU: DHO4204SKU

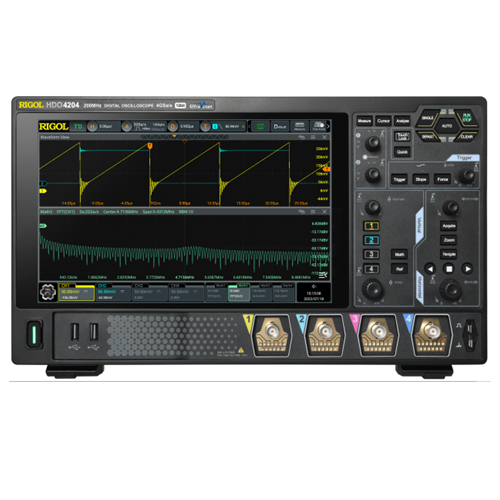

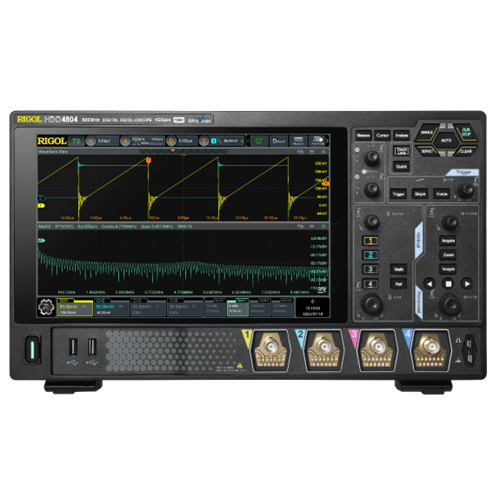

Rigol DHO4000

The DHO4000 series digital oscilloscope is designed to meet the design, debugging, testing requirements of the main oscilloscope market.This new series employs the brand new "Centaurus" chipset  developed by Rigol . It is capable of achieving a waveform acquisition rate of 1500000 wfms/s via UltraAcquire mode, possesses a memory depth of 500Mpts, 12-bit vertical resolution. All these features are combined with excellent performance of noise characteristic and excellent vertical accuracy. The maximum to meet a wide variety of application requirements and the highest accuracy allowing for an outstanding experience in the T&M field.

Configuration

Description
Model DHO4204 DHO4404 DHO4804
Bandwidth 200 MHz 400 MHz 800 MHz
Rise Time (50 Ω) ≤1.75 ns ≤875 ps ≤437 ps
Input Channels 4 Analog + 1 EXT
Vertical Res. 12-bit
Max Sample Rate 4G (Single) | 2G (Half) | 1G (Full)
Memory Depth 250 Mpts (Std) | 500 Mpts (Opt)
Capture Rate 50k (Vector) | 500k (Record) | 1.5M (Ultra)
Peak Detect Capture glitches as narrow as 500 ps
Rec/Playback Up to 500,000 frames
Display 10.1" Multi-touch (1280×800)

Features

DHO4000 series features

  • Brand-new chipset "Centaurus" developed by RIGOL
  • Ultra-low noise floor at 18 μVrms in minimum
  • 12-bit vertical resolution[1]
  • 200/400/800 MHz analog bandwidth (selectable), 4 analog channels, and 1 EXT channel
  • Up to 4 GSa/s real-time sample rate
  • Max. memory depth: 500 Mpts (optional)
  • Min. vertical sensitivity: 100 μV/div
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
  • 10.1'' 1280*800 HD touch display
  • User-friendly Flex Knobs, bringing smoother interaction
  • Standard photoelectric encoder operating knobs, effectively prolonging its service life
  • Standard USB Device & Host, LAN, and HDMI interfaces
  • Optional battery pack in a highly portable package for unlimited freedom
  • Support online version upgrade

Manuals

DHO4000_Datasheet

DHO4000_Quickguide

DHO4000_Userguide

DHO4000_Programming_manual
