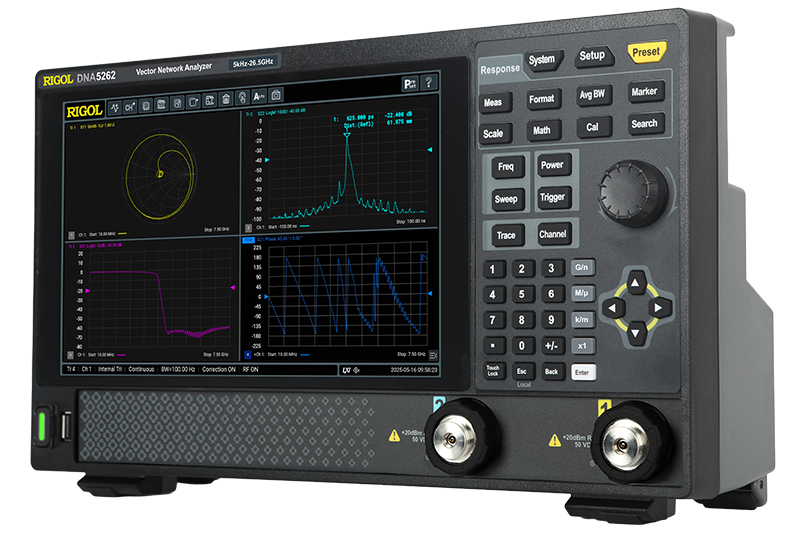

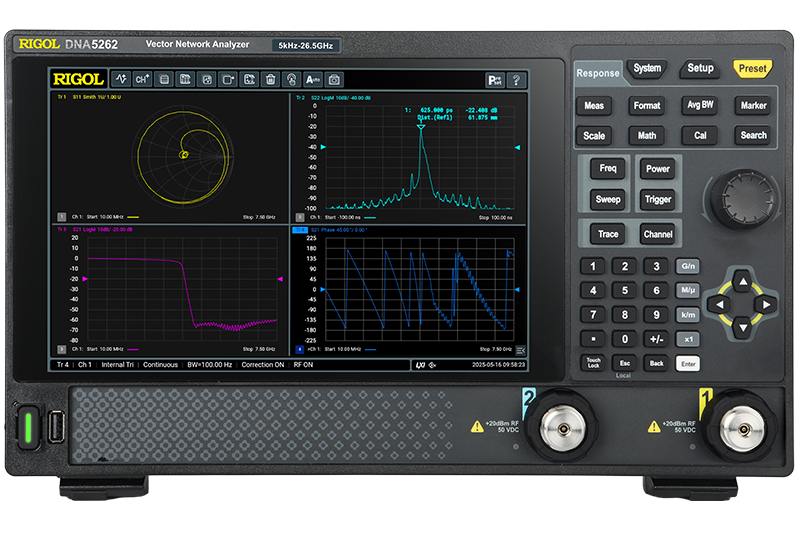

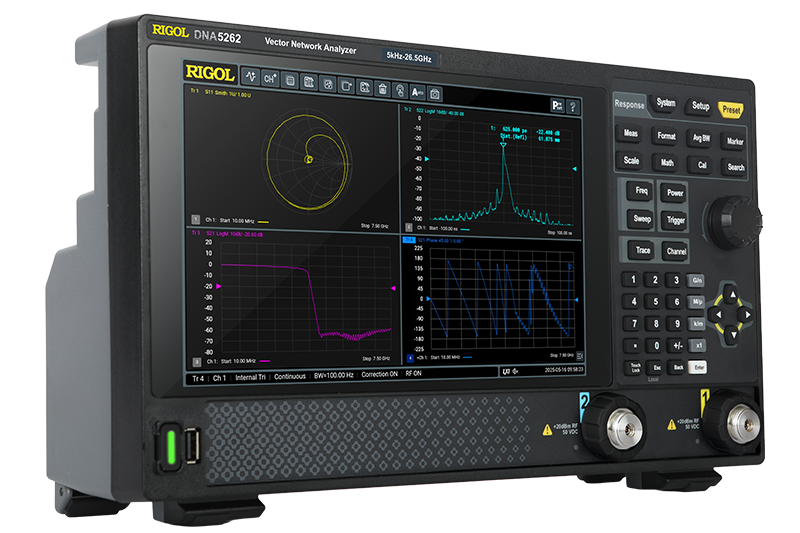

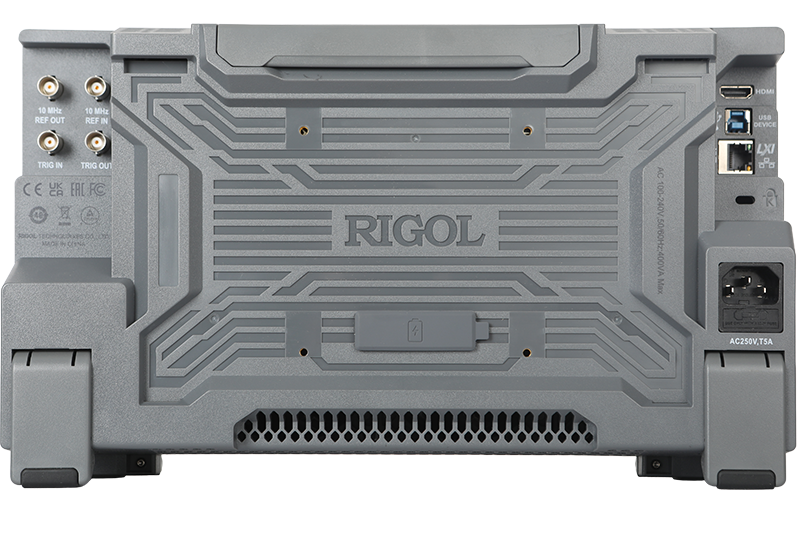

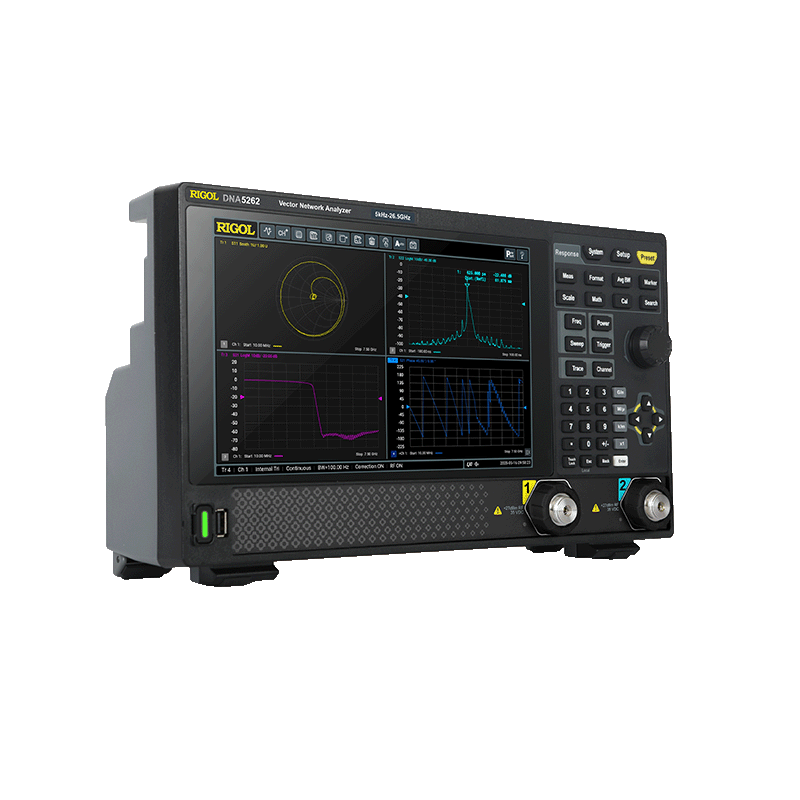

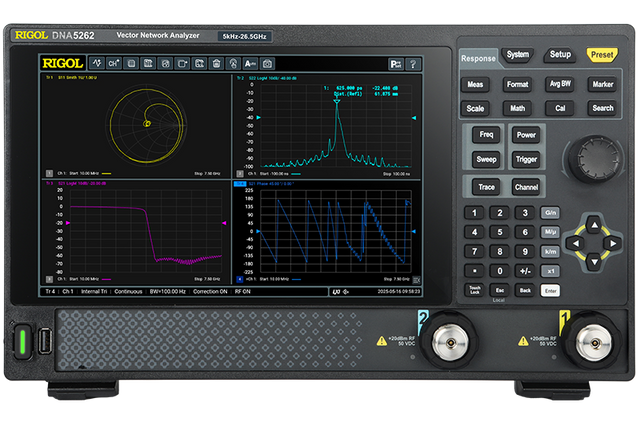

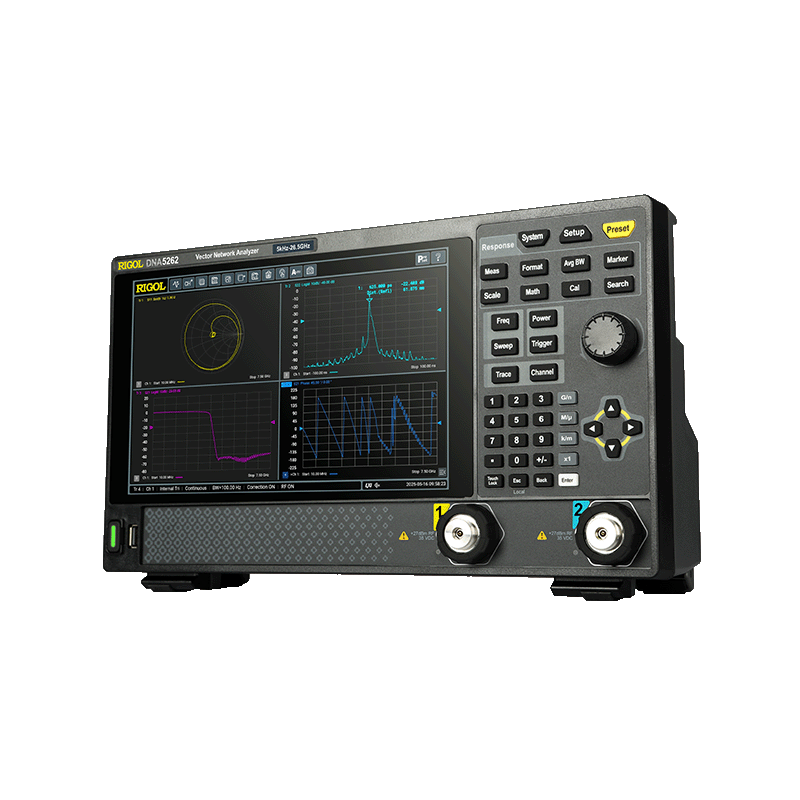

Rigol DNA5000 Vector Network Analyzer

DNA5000 Vector Network Analyzer
The DNA5000 series is a high-performance vector network analyzer (VNA) engineered for accurate and repeatable characterization of RF and microwave components and devices. Designed to support R&D, validation, and manufacturing test, it delivers excellent measurement stability, comprehensive S-parameter analysis, and industry-standard tools including Smith chart, VSWR, TDR, and DTF.
Built on an open, SCPI-compliant architecture, the DNA5000 integrates easily into automated test systems and production environments. Advanced calibration and de-embedding capabilities ensure high measurement confidence, improved repeatability, and reliable extraction of true device performance in demanding applications.

Configuration

Description
Model Frequency Range RF Connector
DNA5042 5 kHz to 4.5 GHz N female
DNA5082 5 kHz to 8.5 GHz N female
DNA5142 5 kHz to 14 GHz N female
DNA5202 5 kHz to 20 GHz 3.5mm male
DNA5262 5 kHz to 26.5 GHz 3.5mm male
Ports 2 ports (50 Ω nominal impedance)
Resolution 1 Hz
Dynamic Range Up to 127 dB (typical)
Max. Output Power Up to 10 dBm
IF BW Range 1 Hz to 10 MHz
Sweep Points 1 to 100,001 points
Display 10.1" HD capacitive multi-touch screen (1280x800)

Features

DNA5000 Series Features

• Frequency range: 5 kHz to 26.5 GHz
• Number of Ports: 2
• Frequency resolution 1 Hz
• Max. output power 10 dBm
• High dynamic range 127 dB (typ.)
• Trace noise: 0.005 dB
• IF BW: 1 Hz to 10 MHz
• Compatible with the mechanical calibration kit and the Ecal electronic calibration kit, supporting
various calibration types (SOLT, Response Short, Response Open, OSL, Enhanced Response 1 to
2, Response Through)
• Integrates S-parameters, impedance, VSWR, TDA, fixture embedding/de-embedding, antenna
test, and etc.
• Portable and light-weighted design, with the compact size of (358.1 mm x 214.8 mm x 121.4
mm) and light weight of 5.3 kg
• 10.1'' 1280x800 HD touch screen
• Supports LAN, USB Device, USB Host, and HDMI interfaces
• Supports standard SCPI instruction sets
• Supports Web Control for remote operation
• Supports both physical key operation and touch screen operation; allowing you to use externally
connected keyboard and mouse to input values
