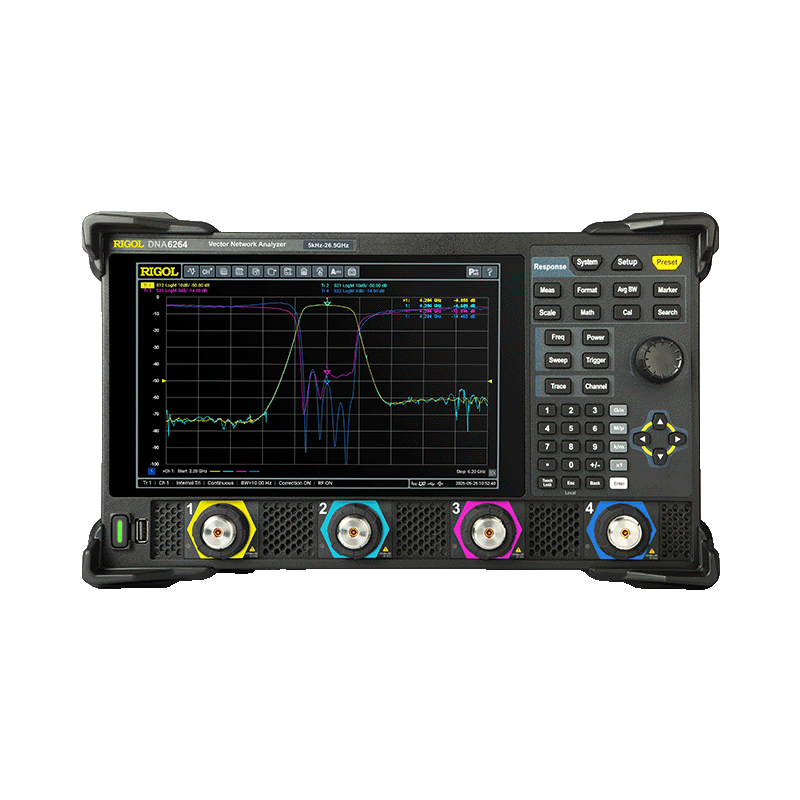

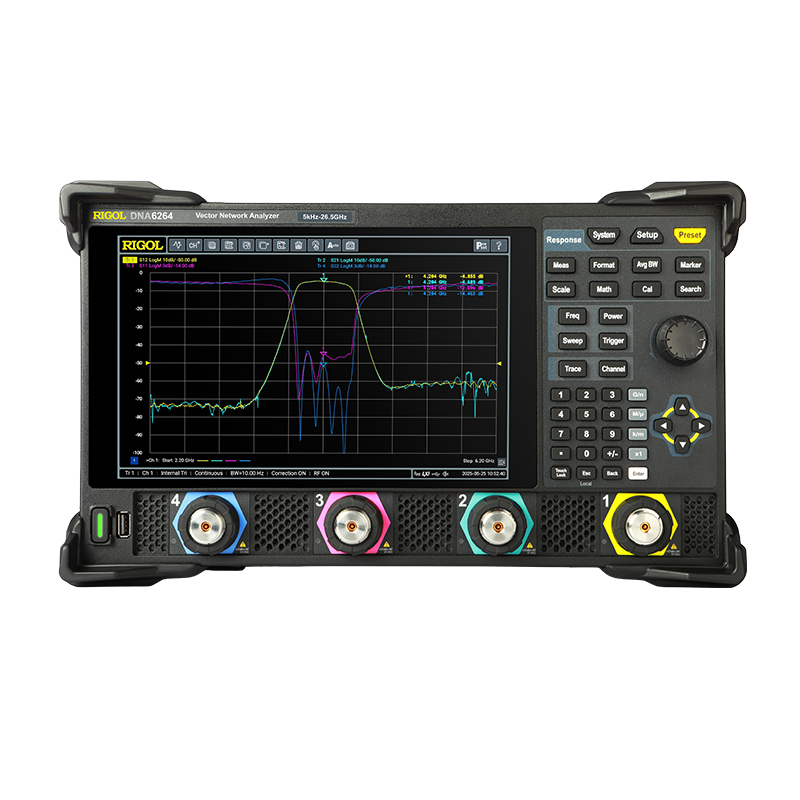

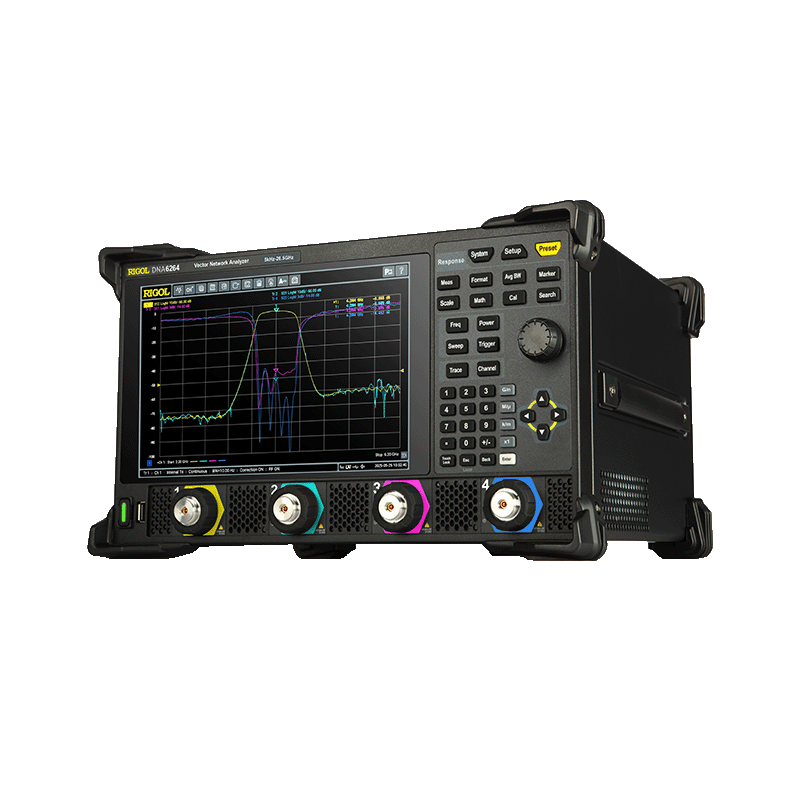

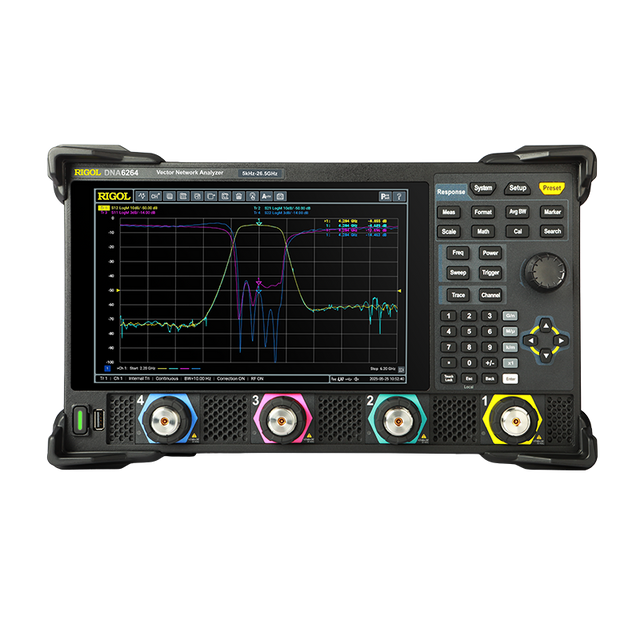

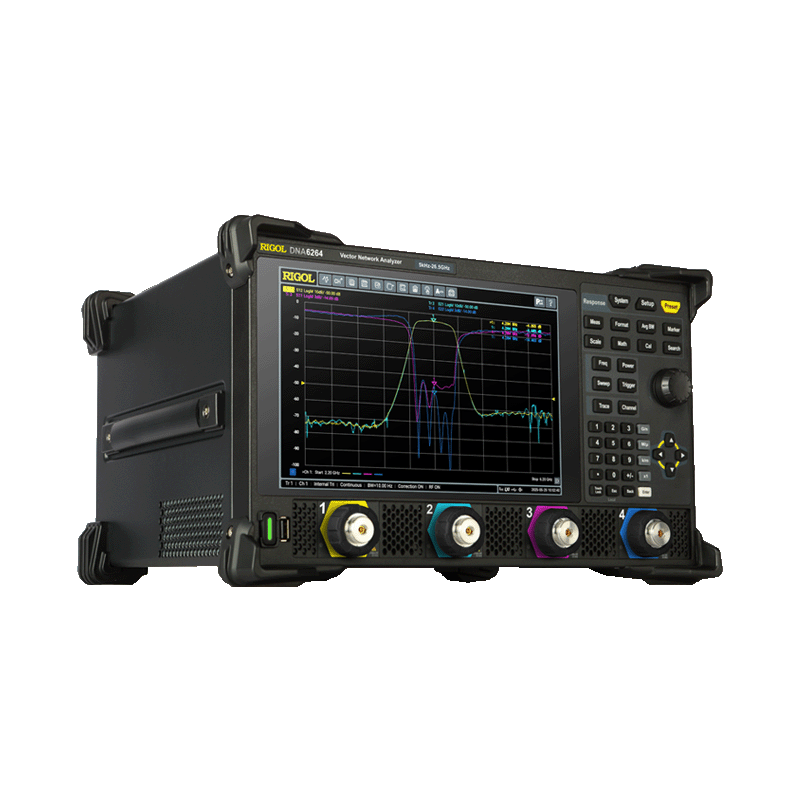

Rigol DNA6000 Vector Network Analyzer

DNA6000 High-Performance Multi-Port RF and Microwave Vector Network Analyzer
The DNA6000 series is a high-performance vector network analyzer engineered to deliver accurate, repeatable characterization of complex RF and microwave components and subsystems. Designed for advanced R&D, system verification, and high-reliability manufacturing environments, it offers true multi-port measurement capability, outstanding trace stability, and comprehensive S-parameter analysis performance.
An integrated suite of measurement tools—including Smith chart, VSWR, TDR, and DTF—combined with advanced calibration and de-embedding capabilities, ensures high measurement confidence and efficient integration into automated test systems and demanding RF validation workflows.

Configuration

Description
Model Frequency Range Ports RF Connector
DNA6082 5 kHz to 8.5 GHz 2 N female
DNA6084 5 kHz to 8.5 GHz 4 N female
DNA6142 5 kHz to 14 GHz 2 N female
DNA6144 5 kHz to 14 GHz 4 N female
DNA6202 5 kHz to 20 GHz 2 3.5mm male
DNA6204 5 kHz to 20 GHz 4 3.5mm male
DNA6262 5 kHz to 26.5 GHz 2 3.5mm male
DNA6264 5 kHz to 26.5 GHz 4 3.5mm male
Impedance 50 Ω nominal
Resolution 1 Hz
Dynamic Range Up to 127 dB (typical)
Max. Output Power Up to 10 dBm
Trace Noise 0.003 dB
IF BW Range 1 Hz to 10 MHz
Sweep Points 1 to 100,001 points
Display 10.1" HD capacitive multi-touch screen (1280x800)
OS / Memory Linux / 256GB internal mass storage
Interfaces LAN, USB Device, USB Host, HDMI, GPIB, Application I/O
Dimensions 358.1 mm × 214.8 mm × 300 mm
Weight 2-Port: < 11 kg | 4-Port: < 13 kg (excluding package)

Features

DNA6000 Series Features

• Frequency range: 5 kHz to 26.5 GHz
• Models with 2 or 4 ports are available for different test scenarios
• Frequency resolution 1 Hz
• Max. output power 10 dBm
• High dynamic range 127 dB (typ.)
• Trace noise: 0.003 dB
• IF BW: 1 Hz to 10 MHz
• Compatible with the mechanical calibration kit and the Ecal electronic calibration kit, supporting
various calibration types (SOLT, Response Short, Response Open, OSL, Enhanced Response 1 to
2, Response Through)
• Integrates S-parameters, impedance, VSWR, TDA, fixture embedding/de-embedding, antenna
test, and etc.
• Compact size: 358.1 mm x 214.8 mm x 300 mm
• 10.1'' 1280x800 HD touch screen
• Supports LAN, USB Device, USB Host, HDMI, GPIB, and Application I/O interfaces
• Supports standard SCPI instruction sets
• Supports Web Control for remote operation
• Supports both physical key operation and touch screen operation; allowing you to use externally
connected keyboard and mouse to input values
