Rigol  |  SKU: DS1054ZSKU

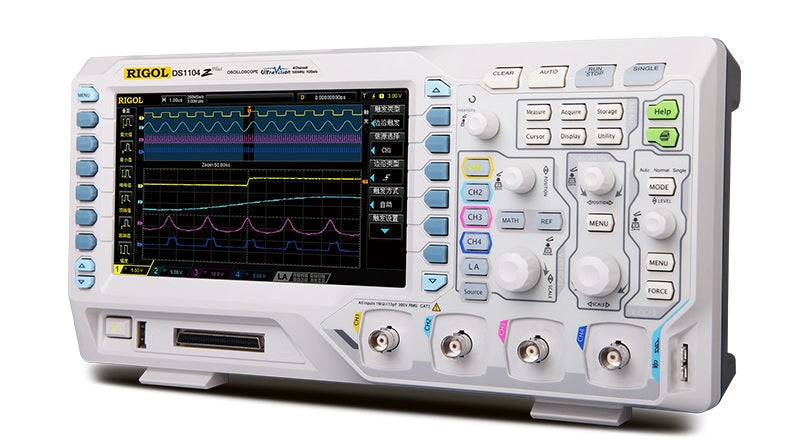

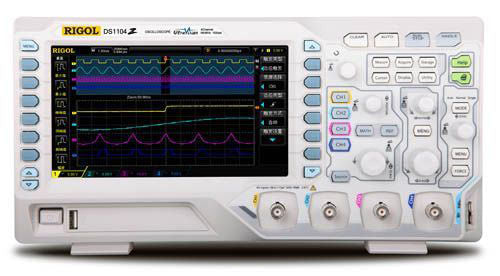

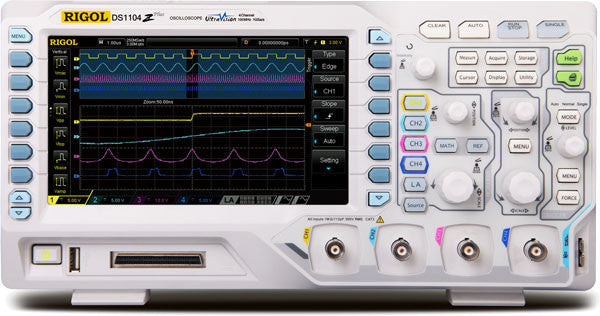

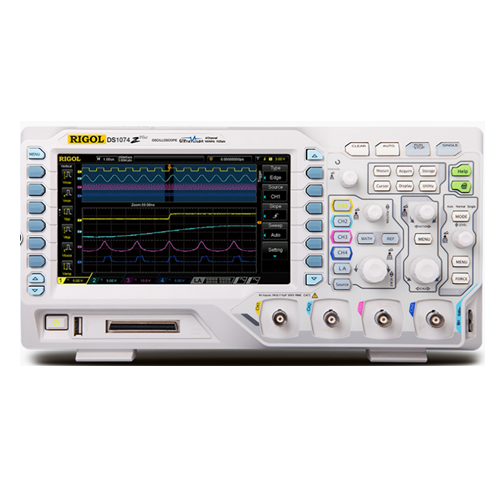

Rigol DS1000Z

DS1000Z series is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market. Wherein, the mixed signal digital oscilloscope aimed atthe embedded design and test fields is equipped with 16 digital channels and allows users to measure analog and digital signals at the same time.

Configuration

Description
Model DS1054Z DS1074Z+ DS1074Z-S+ DS1104Z+ DS1104Z-S+
Bandwidth 50 MHz 70 MHz 70 MHz 100 MHz 100 MHz
Channels 4 4 4 4 4
Sample Rate 1G-Single
500M-Half
250M-Full		 1G-Single
500M-Half
250M-Full		 1G-Single
500M-Half
250M-Full		 1G-Single
500M-Half
250M-Full		 1G-Single
500M-Half
250M-Full
Memory Depth 12 Mpts 12 Mpts 12 Mpts 12 Mpts 12 Mpts
Capture Rate 30k wfms/s 30k wfms/s 30k wfms/s 30k wfms/s 30k wfms/s
Rec/Playback 60k frames 60k frames 60k frames 60k frames 60k frames
Sample Mode Real-time Real-time Real-time Real-time Real-time
Display 7" (800x480) 7" (800x480) 7" (800x480) 7" (800x480) 7" (800x480)

Features

DS1000Z series features

  • Analog channel bandwidth: 100 MHz, 70 MHz, 50 MHz
  • 4 analog channels, 16 digital channels (only available for DS1000Z Plus that has been upgraded with the MSO upgrade option)
  • Real-time sample rate up to 1 GSa/s
  • Memory depth up to 24 Mpts
  • Up to 30,000 wfms/s waveform capture rate
  • Up to 60,000 frames hardware real-time waveform recording and playback functions
  • Innovative "UltraVision" technology
  • Various trigger and bus decoding functions
  • Low noise floor, vertical scale range: 1 mV/div to 10 V/div
  • Built-in dual-channel 25 MHz function/arbitrary waveform generator (only for digital oscilloscope with source channels)
  • Various interfaces: USB Host&Device, LAN (LXI), AUX
  • Compact size, light weight, easy to use
  • 7 inch WVGA (800x480) TFT LCD, intensity graded color display

Manuals

MSO1000Z_Datasheet

MSO1000Z_DS1000Z_UserGuide
