Rigol  |  SKU: DS81304 StationMaxSKU

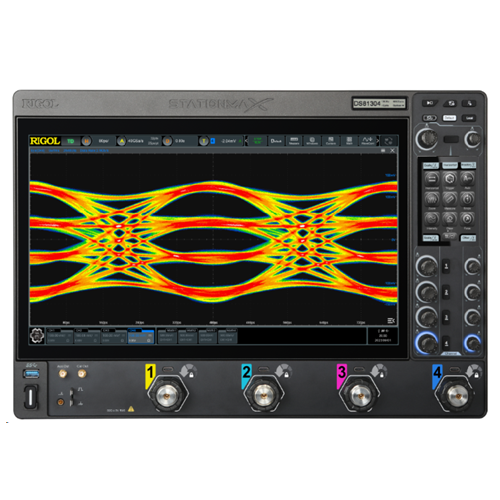

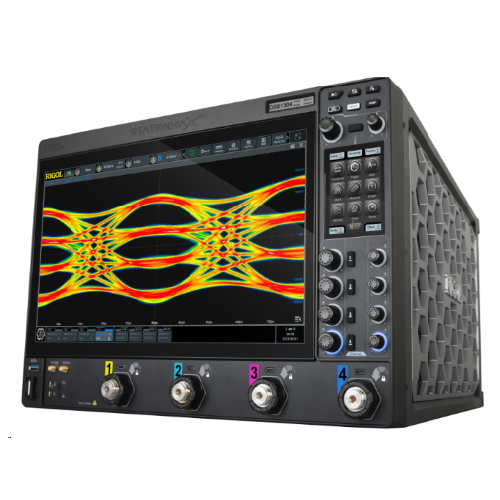

Rigol DS80000

DS80000 series high-bandwidth real-time digital oscilloscope is the 8th generation of RIGOL's selfdeveloped oscilloscopes. It provides 13 GHz analog bandwidth, 40 GSa/s real-time sample rate, 4 Gpts memory depth, and up to 250,000 wfms/s capture rate. It supports the compliance analysis of various protocols, helping you locate the problem in high-speed design and address the verification problem.


Model

Description
Model DS80604 DS80804 DS81004 DS81304
No. of Analog Channels 4 4 4 4
Max. Analog Bandwidth 6 GHz 8 GHz 10 GHz 13 GHz
Total Sample Rate 160 GSa/s
Max. Memory Depth Standard: 500 Mpts | Option: 2 Gpts or 4 Gpts
Sampling Mode Real-time sampling
Rise Time (10%-90%) ≤73 ps ≤55 ps ≤44 ps ≤33 ps
Vertical Resolution 8-16 bits, selectable
Max. Waveform Capture Rate 250,000 wfms/s
LCD Screen Main: 15.6" capacitive multi-touch | Secondary: 3.5" touch screen
Display Resolution Main: 1920x1080 | Secondary: 480x320

Features

DS80000 series features
• 4 analog channels, 1 EXT channel
• Analog channel bandwidth: Max. 13 GHz
• Up to 40 GSa/s sample rate
• Max. 2 Gpts or 4 Gpts memory depth (opt.)
• Max. waveform capture rate: 250,000 wfms/s
• Vertical resolution: 8-16 bits adjustable
• Vertical sensitivity range: 1 mV/div ~ 1 V/div (50Ω)
• Timebase range: 20 ps/div~1 ks/div
• N-in-1 instrument, including digital oscilloscope, digital voltmeter, 8-digit frequency counter
and totalizer, and protocol analyzer (option)
• Various trigger functions: Zone trigger, Edge trigger, Pulse trigger, Slopetrigger, Video trigger,
Pattern trigger, Duration trigger, Timeout trigger, Runttrigger, Window trigger, Delay trigger,
Setup/Hold trigger, Nth Edge trigger, RS232/UART, I2C, SPI, CAN, FlexRay, LIN, I2S, and MILSTD-1553
• Various serial bus decodings (opt.): RS232/UART, I2C, SPI, CAN, CAN-FD,FlexRay, LIN, I2S, MILSTD-1553, USB2.0; 4 decode channels
• Support Ethernet, USB2.0, and other protocol compliance analysis functions
• Auto measurement of 41 waveform parameters; full-memory hardware measurement function
• Various math operations: A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln,
Exp, Abs, AX+B, LowPass, HighPass, BandPass, and BandStop built-in peak search functions
• Real-time eye diagram and and jitter analysis (opt.)
• Recording and playback functions for a maximum of 2,000,000 frames of hardware real-time and
ceaseless waveforms
• Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, AUX OUT; Web Control
supported
• 15.6'' HD capacitive multi-touch screen with one-button electronic tilt; multi-pane windowing
• The photoelectric encoder operating knob prolongs its service life, guaranteeing more than
100,000 times of pressing operation and 1 million times of rotation operation, greatly improving
its service life
• High-definition smart and quick-responsive shortcut menu display
• Support online upgrade
