Rigol  |  SKU: MHO5054SKU

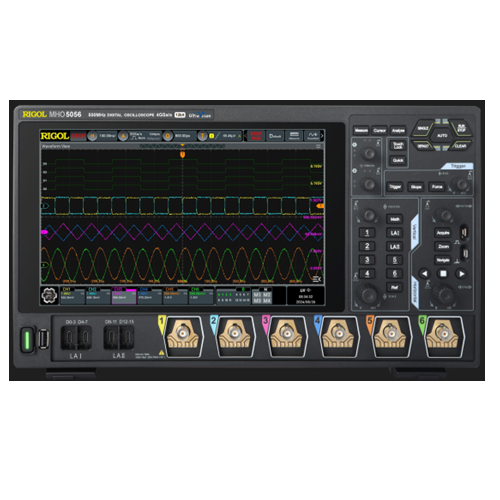

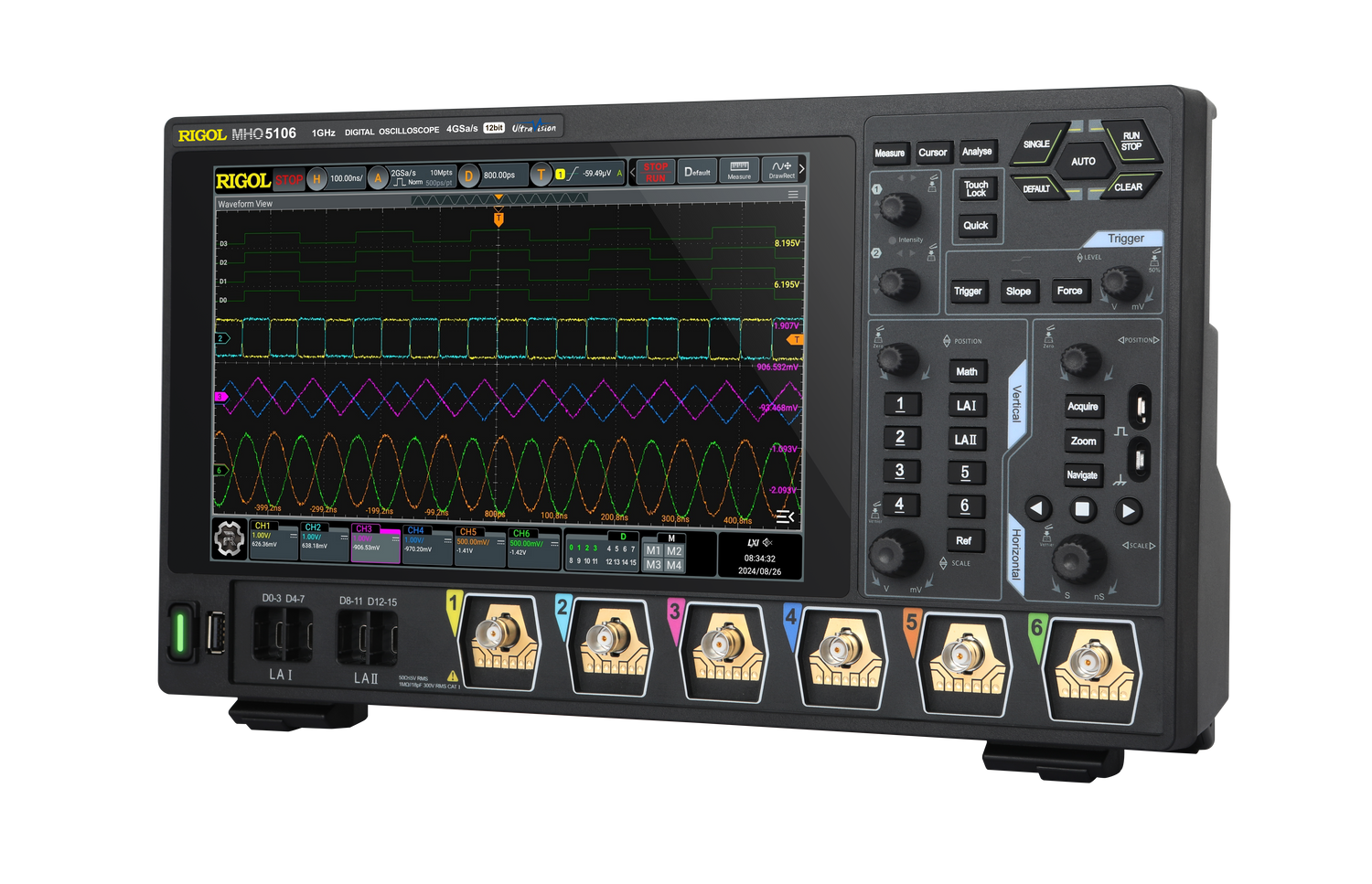

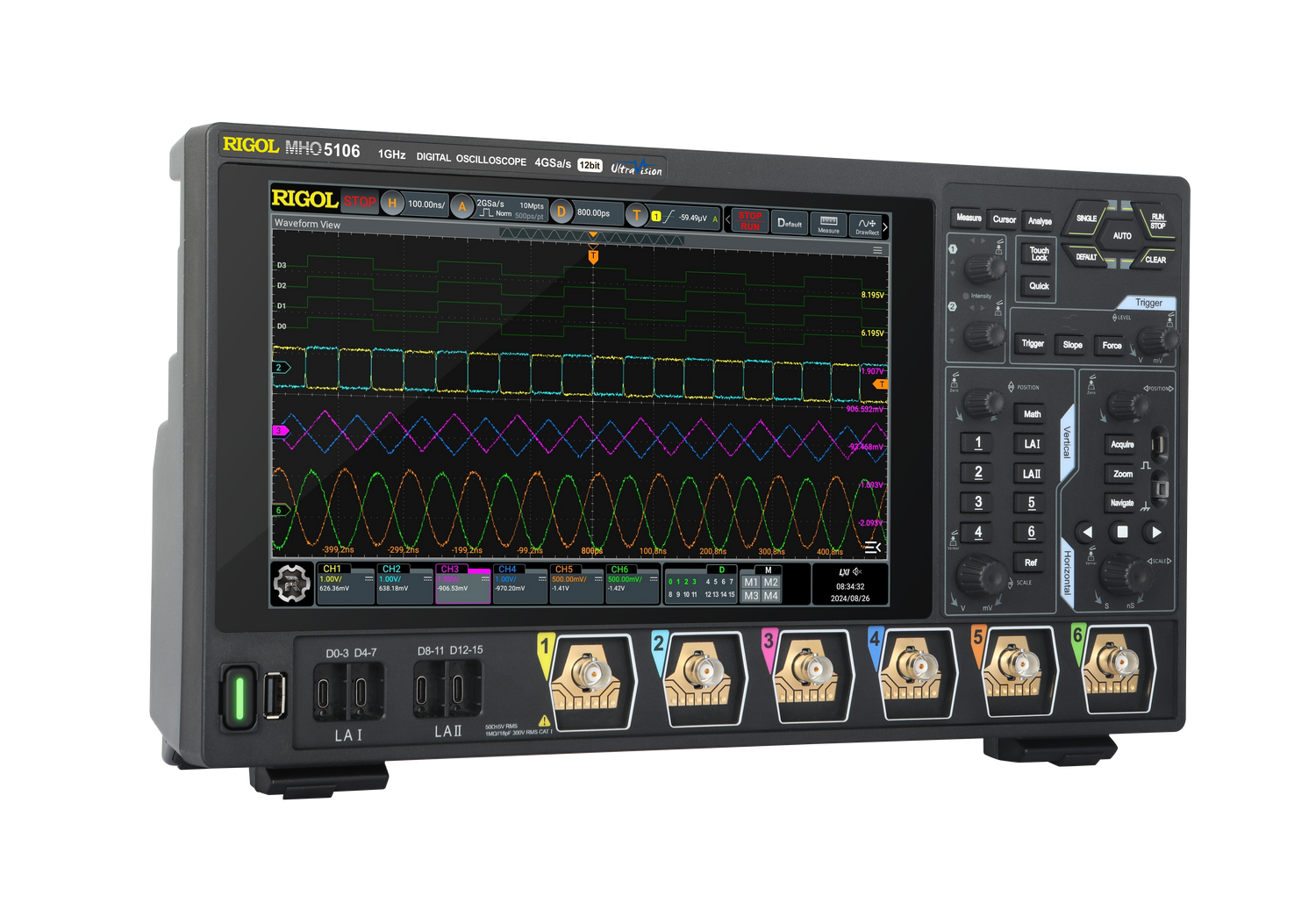

Rigol MHO5000

The MHO/DHO5000 series offers high-resolution digital oscilloscopes, designed to meet the market of traditional digital oscilloscopes, to satisfy all design debug and test needs.They are developed based on the brand new Centaurus technical platform developed independently by RIGOL.The waveform acquisition rate of 1.000,000 wfms/s (in fast recording mode), memory depth of 500 Mpts, 12-bit resolution, excellent noise floor and vertical measurement accuracy meet test requirements with the highest precision.The MHO/DHO5000 series digital oscilloscopes support AFG, digital signal analysis, Bode plot and other functions. They are battery powered, convenient to use and control, applicable to various complex test scenarios.

Configuration

Description
Model MHO5056 MHO5054 MHO5106 MHO5104
Bandwidth (50 Ω) 500 MHz 1 GHz
Bandwidth (1 MΩ) 500 MHz
Rise Time (50 Ω) ≤750 ps ≤350 ps (S/H) | ≤440 ps (F)
Input Channels 6 Ana + 16 Dig 4 Ana + 16 Dig 6 Ana + 16 Dig 4 Ana + 16 Dig
Max Sample Rate 4 GSa/s (Single/Half) | 2 GSa/s (Full)

Features

MHO/DHO5000 series features

  • Based on RIGOL's brand new self-developed Centaurus technical platform
  • 12-bit resolution for all the series
  • Max. 1 GHz bandwidth, 8 analog channels, and 1 external trigger channel
  • Standard configuration of 16 digital channels (required to purchase the logic analyzer probe) for the MHO models
  • Real-time sample rate: up to 4 GSa/s
  • Max. memory depth 500 Mpts
  • Vertical sensitivity up to 100 μV/div
  • Maximum waveform capture rate of 1,000,000 wfms/s in fast recording mode
  • Arbitrary Waveform/Function Generator (AFG), power analysis, histogram, and digital signal analysis, Bode plot, and protocol decodings
  • Search and navigation function helps users quickly search for the signals with exceptions and locate them accurately.
  • 256-level intensity grading display, with digital real-time fluorescence technology
  • 10.1" 1280*800 high-definition touch screen
  • Brand new Flex knob brings friendly user experience
  • Standard configuration of USB Device, USB Host, LAN, HDMI interfaces for all the series
  • Battery pack-powered, convenient to charge anytime and anywhere, providing a great feasibility for measurement
  • Online upgrade
  • Standard configuration of the photoelectric encoder operating knob for all the series to improve the service life of the instrument

Manuals

MHODHO5000_DataSheet

MHODHO5000_ProgrammingGuide

MHODHO5000_UserGuide

MHODHO5000_QuickGuide
