Rigol | SKU: MHO984SKU

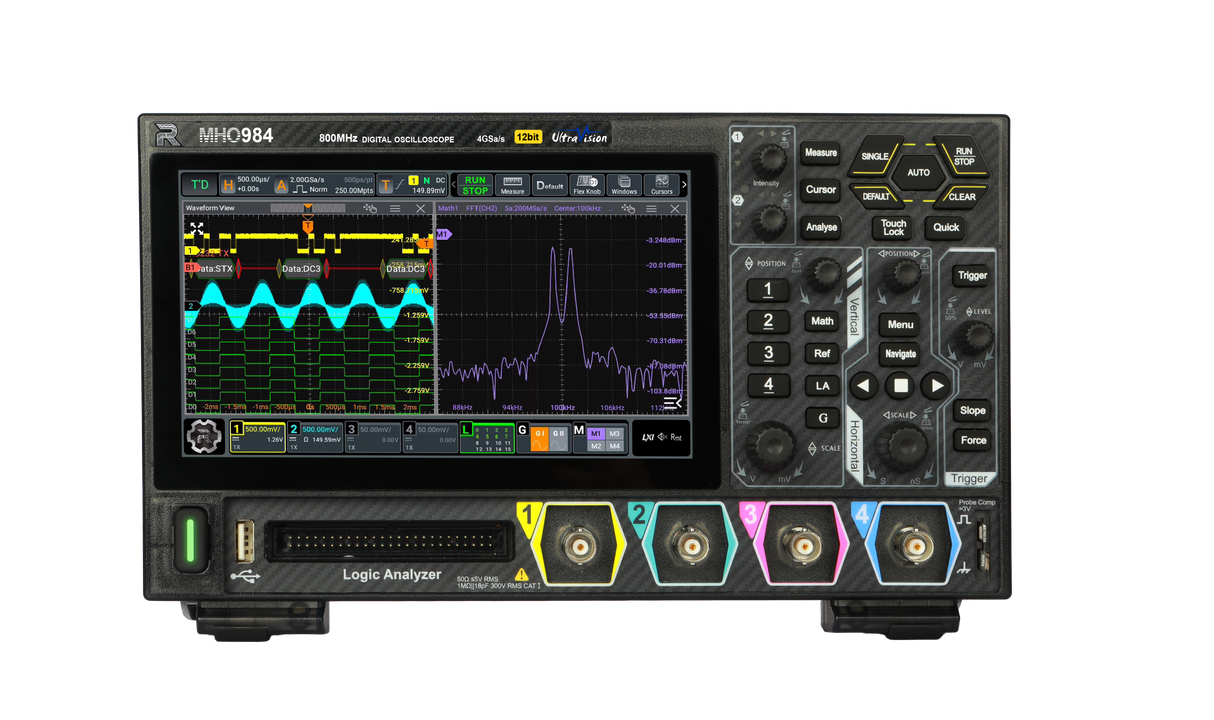

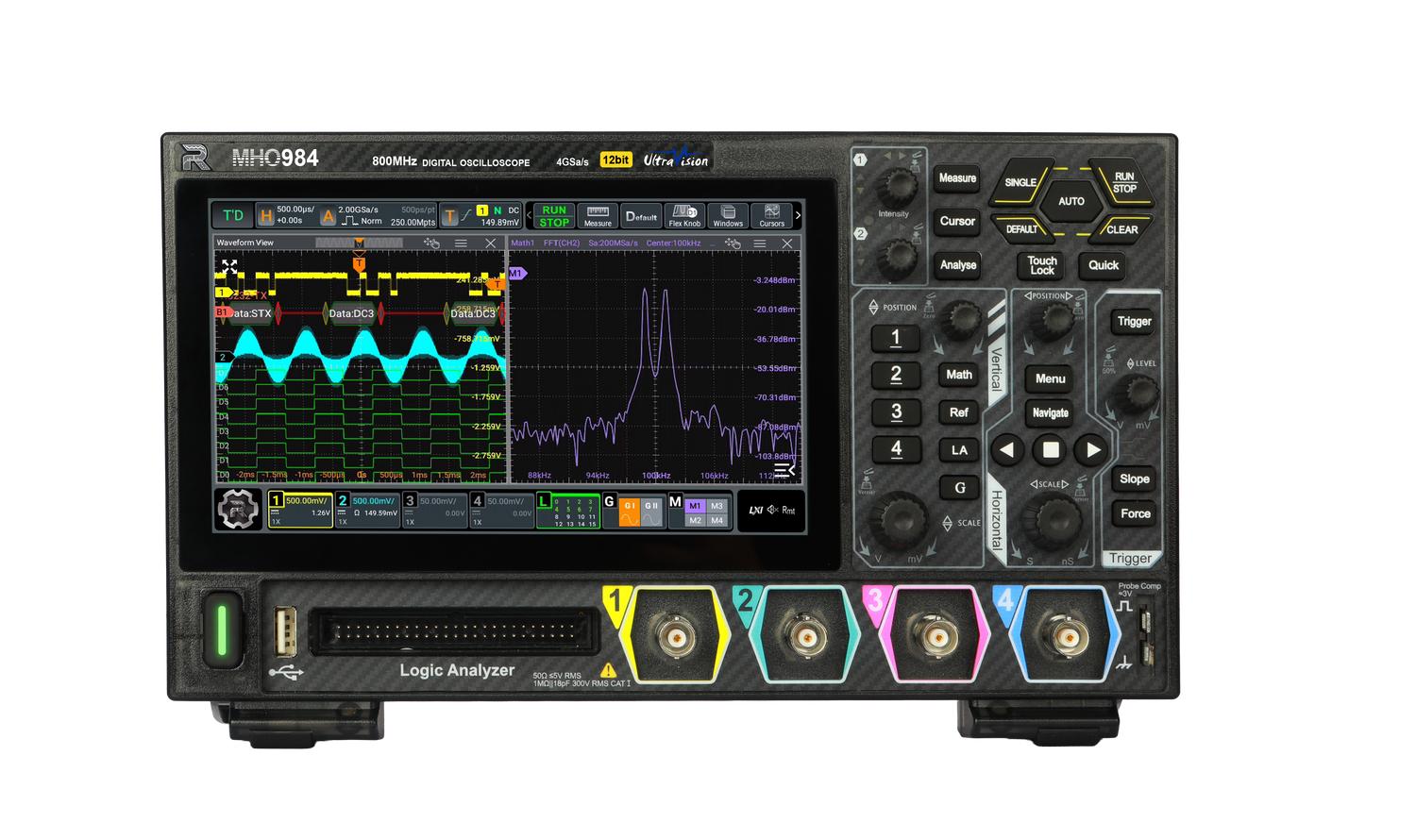

Rigol MHO900

MHO900 Series Ultra-Portable High-Resolution Oscilloscopes is an economical oscilloscope. Compact in size, it features 1,000,000 wfms/s capture rate, max. memory depth of 500 Mpts (option), 12-bit high resolution and low noise.
The product supports 16 digital channels. One instrument can make an analysis on both the analog and digital signals to meet the embedded design and test scenarios. With an affordable price equivalent to purchasing an entry-level instrument, you can access the auto serial and parallel bus analysis, bode plot analysis, and other functions to meet the test demands in the R&D, education, and scientific research fields.

Config

MHO984 MHO954 MHO934

Description

Model	MHO984	MHO954	MHO934
Max. Analog Bandwidth (50 Ω, -3 dB)	800 MHz (singlechannel[1] & halfchannel[2]) 400 MHz (all-channel[3])	500 MHz (singlechannel[1] & halfchannel[2]) 400 MHz (all-channel[3])	350 MHz (for any number of channels)
Calculated Rising Time under 50 Ω (10%-90%, typical)	437 ps	700 ps	1 ns
No. of Analog Channels	4	4	4
Function/Arbitrary Waveform Generator (AFG)[4]	2-Channel, 100 MHz, 1 GSa/s (Opt.) 2-Channel, 50 MHz, 1 GSa/s (Opt.)	2-Channel, 100 MHz, 1 GSa/s (Opt.) 2-Channel, 50 MHz, 1 GSa/s (Opt.)	2-Channel, 100 MHz, 1 GSa/s (Opt.) 2-Channel, 50 MHz, 1 GSa/s (Opt.)
Bode Plot[5] Sweep Range: 10 Hz to 30 MHz	Sweep Range: 10 Hz to 30 MH	Sweep Range: 10 Hz to 30 MH	Sweep Range: 10 Hz to 30 MH
