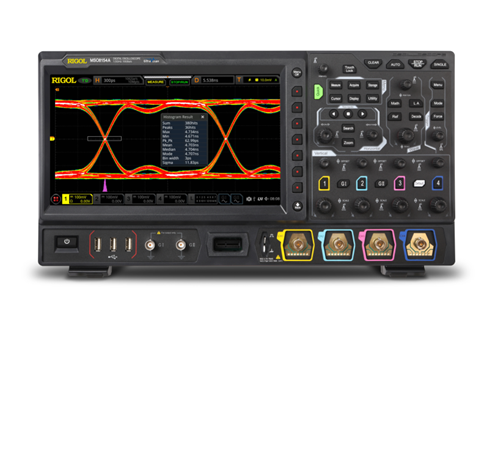

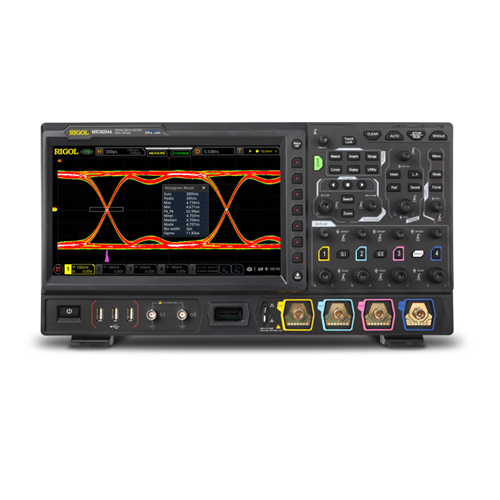

Rigol MSO8000A

Digital oscilloscope, 2GHz bandwidth, 4 analog and 16 digital channels, 10.1-inch touch screen display, acquisition at over 600000 waveforms/sec. Integrates 7 independent instruments in one.

Configuration

Description
Model MSO8074A MSO8154A MSO8204A
Bandwidth 750 MHz 1.5 GHz 2 GHz
Rising Time (50 Ω) ≤556 ps ≤269 ps ≤206 ps
Analog Channels 4 4 4
Max. Sample Rate 10G (Single)
5G (Half)
2.5G (Full)		 10G (Single)
5G (Half)
2.5G (Full)		 10G (Single)
5G (Half)
2.5G (Full)
Memory Depth 500 Mpts 500 Mpts 500 Mpts
Capture Rate ≥600k wfms/s ≥600k wfms/s ≥600k wfms/s
Recording/Playback ≥450k wfms ≥450k wfms ≥450k wfms
Peak Detection 400 ps glitches 400 ps glitches 400 ps glitches
Display 10.1" (1024x600) 10.1" (1024x600) 10.1" (1024x600)

Features

MSO8000A series features

  • Up to 10 GSa/s real-time sample rate
  • Up to 500 Mpts memory depth (standard)
  • High waveform capture rate (over 600,000 waveforms per second)
  • Up to 450,000 frames of hardware real-time and
    ceaseless waveforms recording and playback
  • Integrates 7 independent instruments into 1
  • Analog bandwidth: 750 MHz, 1.5 GHz and 2 GHz
    (single-channel and half-channel modes)
  • 10.1-inch capacitive multi-touch screen, 256-level
    intensity grading display, with color persistence
    100mV
  • Web Control and VNC remote command
  • Waveform histogram analysis (standard)
  • Auto measurement of 41 waveform parameters;
    full-memory hardware measurement function
