Rigol EMI Promotion
Get the RSA5000-EMI option for free with the purchase of a new device, serie RSA5000. (Valid until June 30, 2026)

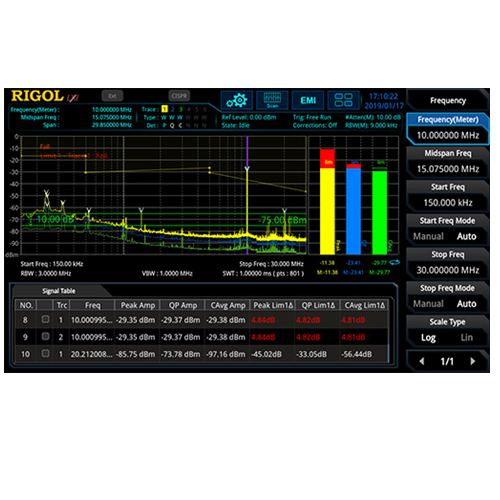

The EMI measurement software application (RSA5000-EMI) provides the measurement functions ,pos-peak, neg-peak, average, quasi-peak, CISPR average, RMS average detector and EMI filter (200 Hz, 9 kHz, 120 kHz, -6 dB bandwidth) . Please refer to the attached EMI specific guide.
| EMI Mode (Option RSA5000-EMI) | |
| EMI Resolution Bandwidth | |
| Resolution Bandwidth (-3 dB) | 100 Hz to 10 MHz, in 1-3-10 sequence |
| Resolution Bandwidth (-6 dB) | 200 Hz, 9 kHz, 120 kHz and 1 MHz |
| EMI Detector | |
| Detector | pos-peak, neg-peak, average, quasi-peak, CISPR average, RMS average |
| EMI Key Features | |
| CISPR 16-1-1 detectors | |
| CISPR 16-1-1 bandwidths | |
| log and linear display | |
| signal table | |
| scan table | |
| simultaneous detectors | |
| automatic limit testing | |
| measure at marker | |
| delta to limit | |
| step and swept scans | |
| report generation |
