Rigol  |  SKU: DP932U

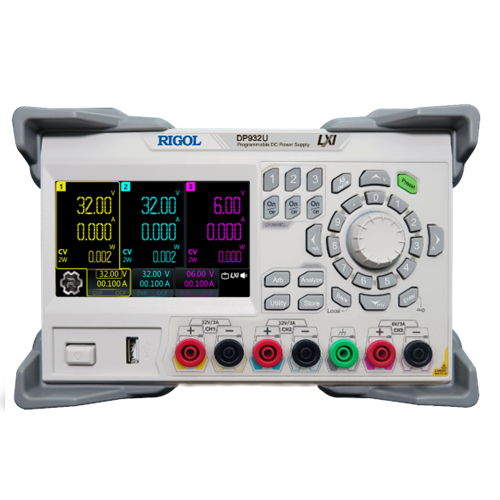

Rigol DP932U DC Power Supply

The latest DP900 series of power supplies, in addition to the advantages of low ripple and high accuracy, also adds a variety of new features such as full channel isolation , a key for parallel series configuration . This enables it to meet a wide variety of needs within 's different fields of application. It also finds considerable use in the field of education.

Description
Model DP932A DP932U(University) DP932E(Economic)
Max Power 210 Watts 210 Watts 198W
Number of Channels 3 3 (safety plug) 3
Rear Output Terminals NO NO NO
Voltage / Current per Channel CH1: 32V/3A
CH2: 32V/3A
CH3: 6V/3A		 CH1: 32V/3A
CH2: 32V/3A
CH3: 6V/3A 		CH1: 30V/3A
CH2: 30V/3A
CH3: 6V/3A
ARB Generation Yes, min dwell time of 100 msec. Yes, min dwell time of 1000 msec. (Optional:100msec.) NO
Aanalysis Real-Time Plot, Trend,Current Pulse Analysis and Datalogging Real-Time Plot, Trend,Current Pulse Analysis and Datalogging Real-Time Plot, Trend,Current Pulse Analysis and Datalogging
Command Processing Time 10msec. 10msec. 10msec.
Read-Back Resolution Current 1mA 10mA (Opt: 1mA) 10mA (Opt: 1mA)
Read-Back Resolution Voltage 1mV 10mV (Opt:1mV) 10mV (Opt:1mV)
Interfaces USB,LAN,Digital IO USB,LAN,Digital IO(Optional) USB,LAN



Features

Three models available in the series:
DP932A (Standard): 32 V/3 A || 32 V/3 A || 6 V/3 A
DP932U (University-with safety sockets): 32 V/3 A || 32 V/3 A || 6 V/3 A
DP932E (E-commerce): 30 V/3 A || 30 V/3 A || 6 V/3 A

Rigol DP900 Series Features:
-3 electrically isolated independent channels with a maximum total power of up to 210W
-4.3-inch LCD color touch screen
-Front-panel safety sockets available on some models
-Internal series/parallel connections for CH1 and CH2
-Excellent programming/readback accuracy
-Transient response time <50 µs
-Low output ripple and noise <350 µVrms/2 mVpp
-Command processing time <10 ms
-Three rack-units (3U), 1/2-rack form factor
-Software control
-Timing output, data logging and analysis.
-A maximum of 512 arbitrary points with dwell time down to 100 ms; various built-in basic waveforms
-Over voltage, over current, and over temperature protection
-Various interfaces available: USB, LAN, and Digital I/O
