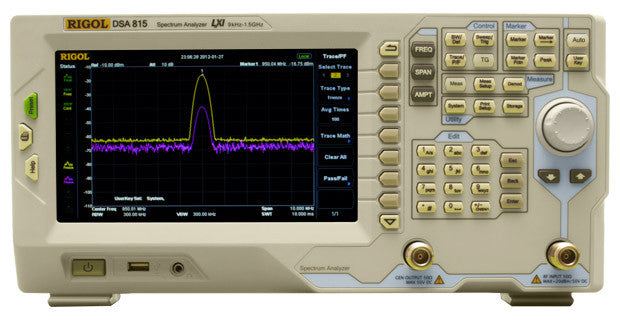

Rigol DSA815-TG 9kHz - 1.5GHz spectrum analyzer (tracking generator)

Ultra-compact and lightweight spectrum analyzer with excellent performance. Digital IF(intermediate frequency) technology ensures reliability and performance to meet most RF applications.
Large high-resolution display, vast number of functions for wide use and maximum flexibility.

1.5GHz tracking generator included.

Description
Model
DSA815-TG
Frequency Range
9kHz - 1.5GHz
DANL*1
-135dBm, typical
Phase Noise
-80dBc/Hz @10kHz offset, typical
Total Amplitude Accuracy*2
<1.5dB
Minimum RBW
10Hz
RF Input Maximum Level
Interfaces
USB host & device, LAN, GPIB (optional), 10 MHz REF In, 10 MHz REF Out, External Trigger In
Trigger Source
Free Run, Video, External
External Trigger Level
5 V TTL Level
Dimensions
Width X Height X Depth = 14.2 in. X 7.0 in. X 5.0 in.
(361.6 mm X 178.8 mm X 128 mm) ;
Weight
9.4 lbs. (4.25 kg)

*1: 100Hz RBW, standard preamplifier on, trace average >= 50, sample detector, typical
*2: 95% confidence level

Features

DSA800 series features:

  • All-Digital IF Technology
  • Frequency Range from 9 kHz up to 7.5 GHz
  • Min. -161 dBm Displayed Average Noise Level (Typ.)
  • Min. < -98 dBc/Hz @ 10 kHz Offset Phase Noise
  • Level Measurement Uncertainty < 0.8 dB
  • 10 Hz Minimum Resolution Bandwidth
  • Up to 7.5 GHz Tracking Generator (DSA8XX/E-TG)
  • Advanced Measurement Functions (Opt.)
  • EMI Filter & Quasi-Peak Detector Kit (Opt.)
  • VSWR Measurement Kit (Opt.)
  • PC Software (Opt.)
  • Optional RF TX/RX Training Kit
  • Optional RF Accessories (Cable, Adaptor, Attenuator, Bridge ...)
  • Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)
  • 8 Inch WVGA (800x480) Display
  • Compact Size, Light Weight Design

Manuals

DSA800 series Datasheet

DSA800 series UserGuide
