Rigol  |  SKU: DG1032Z

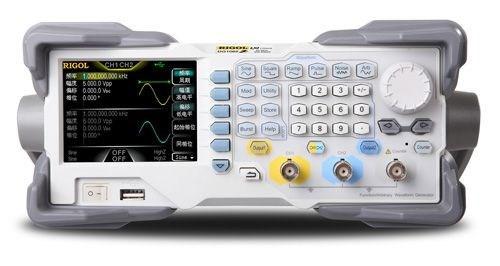

Rigol DG1032Z 30MHz 2Channel Function Generator

DG1000Z series function/arbitrary waveform generator is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter. As a multi-functional, high performance and portable generator, it will be a new selection in education, R&D, production, test and etc.

Description
Model
 DG1032Z
Max Sine Wave Frequency
30 MHz
Max Square Wave Frequency
25 MHz
Channels
2 channels standard
Sample Rate
200 MSa/s
Arbitrary Waveform Length
8Mpts, 16Mpts (optional)
Modulations
AM, FM, PM, ASK, FSK, PSK, PWM





Features

Series Features

  • SiFi (Signal Fidelity) for 100% waveform replication
  • 2Mpts or 8Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform length
  • Standard 2 full functional independent channels
  • ±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitter
  • Built-in 8 orders harmonics generator
  • Built-in 7 digits/s counter up to 200MHz
  • 160 built-in pre-edited waveforms
  • Intuitive arbitrary waveform editing software
  • Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM

Manuals

Datasheet Rigol DG1000Z series

User guide Rigol DG1000Z series
