Rigol DG5352 Pro: 350 MHz bandwidth 2 CHs

Rigol BND Promotion
Get the DG5000 Pro-BND option for free with the purchase of a new device, serie DG5000 Pro. (Valid until June 30, 2026)

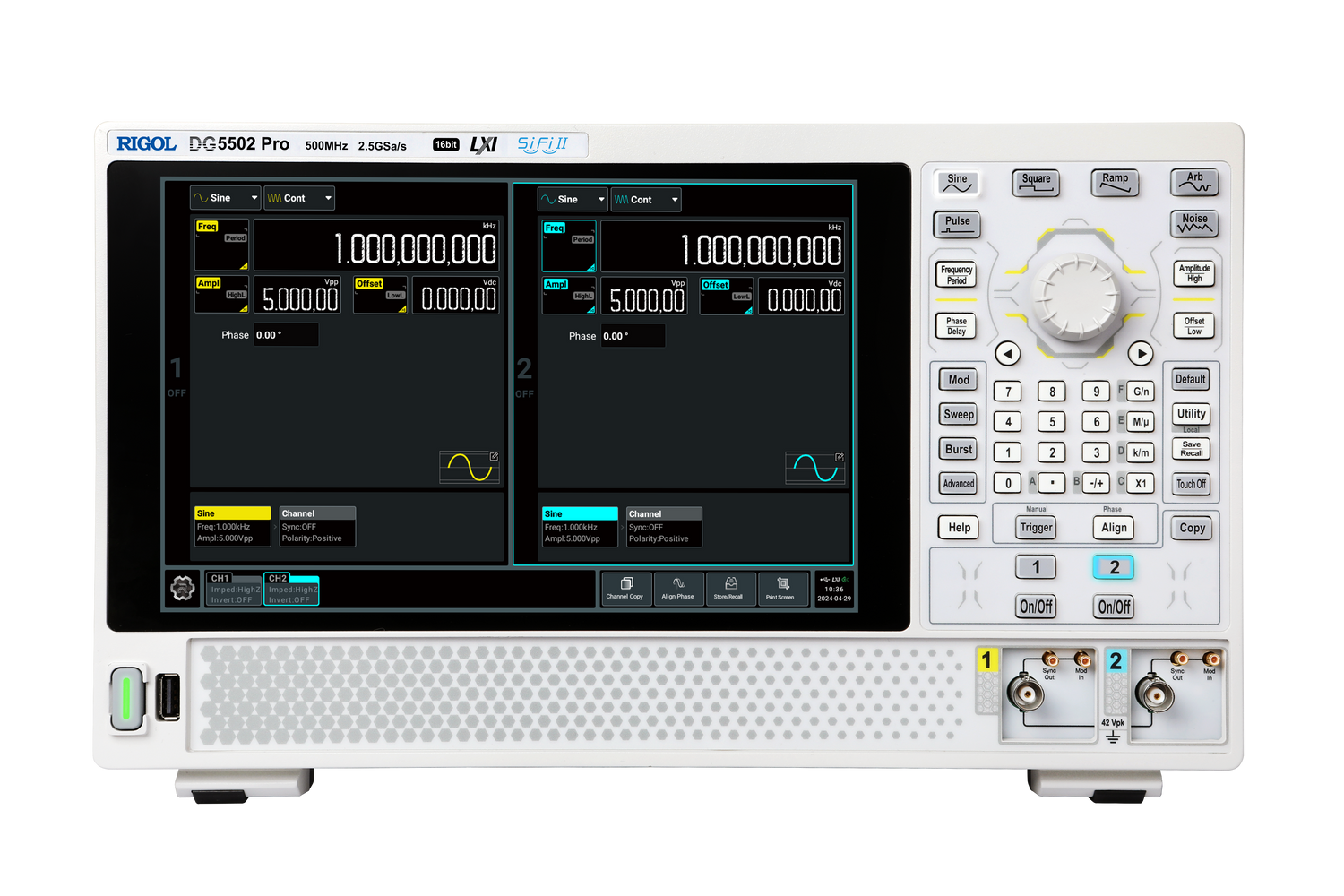

With a sampling rate of up to 2.5 GSa/s and an arbitrary waveform length of 64 Mpts/CH (128 Mpts/CH optional), the DG5000 Pro Series Arbitrary Waveform/Function Generator is an all-in-one generator integrating a function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, and analog/digital modulator. It is a multifunctional, cost-effective, dual-channel arbitrary waveform/function generator.

Description

Rigol BND Promotion
Get the DG5000 Pro-BND option for free with the purchase of a new device, serie DG5000 Pro. (Valid until June 30, 2026)

Model DG5352Pro
Analog Bandwidth 350 MHz
Channels
2 both isolated from the Ground
Vertical Resolution
16 bits
Sample Rate
2.5 GSa/s
Arbitrary Waveform Lenght
64 Mpts/CH (standard) , 128 Mpts/CH (optional)
Min. Rise Time
 0.8 ns
Dimensions (W×H×D)
 358 mm (W) x 215 mm (H) x 122 mm (D)













Features

Series Features

• Dual-channel output, isolated from the ground
• Max. sample rate: 2.5 GSa/s
• Max. output frequency: 500 MHz
• 16-bit vertical resolution
• Square: 170 MHz max. frequency, 0.8 ns min. rise time
• Pulse: 120 MHz max. frequency, 4.2 ns min. pulse width
• Built-in high-order harmonic generator (max. 20th order)
• A maximum Arb waveform length of 64 Mpts/CH (128 Mpts/CH optional)
• Optional functions: Sequence, IQ, Multi-pulse, Pattern, Multi-tone
• Battery holder available to power the instrument, satisfying testing requirements in the field
• 10.1'' HD touch screen, allowing you to configure dual-channel waveforms together from a
single screen
• Standard Web Control function for easier remote cooperation
