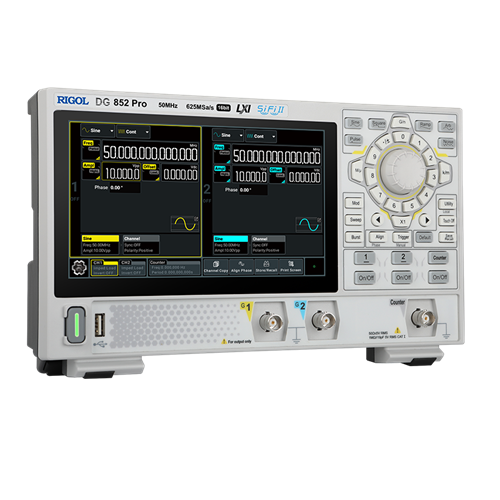

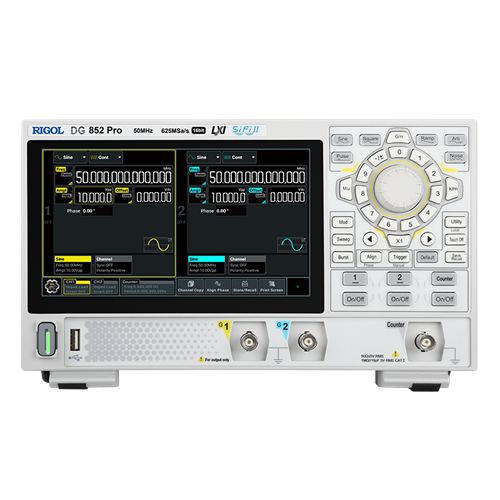

Rigol DG822 Pro function generator (25 MHz. dual-channel)

The DG800 Pro series arbitrary function and waveform generator provides a sampling rate of up to 625 MSa/s and a memory depth of 2Mpts (standard). It is an affordable solution that combines multiple functions including function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator , frequency meter.

Description
Model DG822Pro
Channels
2
Out Frequency
25 MHz
Sample Rate
625MSa/s
Waveform Memory depth
2 Mpts/CH (standard) , 8 Mpts/CH (optional)
Vertical Resolution
16 bits
Monitor

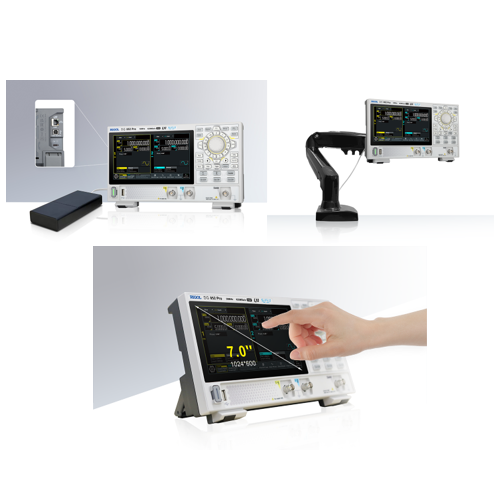

7-inch touch screen, 1024 x 600 resolution
Waveform Output Mode Continuous, Modulation, Sweep, Burst, Sequence
Basic Waveforms Sine, Square, Ramp, Pulse, Noise, Arb, Harmonic
Built-in Arb
Waveform		 148 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gaussian, HaverSine, and Lorentz.
Modulation Type AM, FM, PM, ASK, FSK, PSK, PWM, SUM
Standard Interface
LAN, Web Control, USB Host, USB Device
Optional Accessories RA5040K 40 dB Attenuator (50 Ω, 1 W)
Upgrade Options 8 Mpts/CH Memory Depth Upgrade Option DG800Pro-3RL
Two-channel Upgrade Option (for DG821 Pro only) DG800Pro-DCH
Weight/Dimensions (W×H×D)
Weight Package excluded: <1.78 kg , Dimension 266 mm (W) x 165 mm (H) x 80 mm (D)








Features

Series Features
• Max. sample rate: 625 MSa/s
• Max. output frequency: 50 MHz
• 16-bit vertical resolution
• Arbitrary waveform editing function with a max. Arb waveform length of 2 Mpts/CH (8 Mpts/CH
optional)
• Built-in high-order harmonic generator (max. 20th order)
• Independent signal frequency measurement channel with a max. frequency of 500 MHz
• USB and LAN interfaces for remote connection
• Type-C power interface for powering the instrument with mobile power source, satisfying
testing requirements in the field
• Standard Web Control function for easier remote cooperation

Manuals

DG800Pro_DataSheet_EN

DG800Pro_QuickGuide_EN

DG800Pro_UserGuide_EN

DG800ProDG900Pro_ProgrammingGuide_EN
