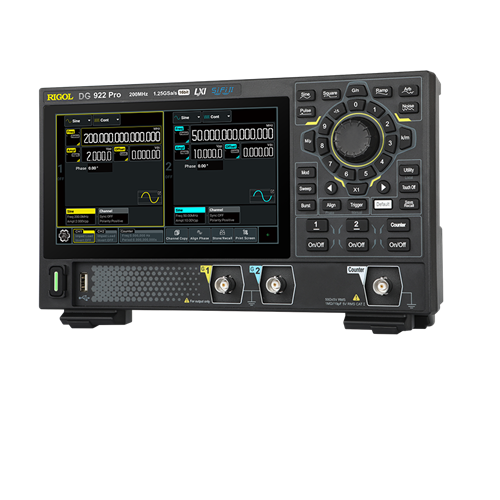

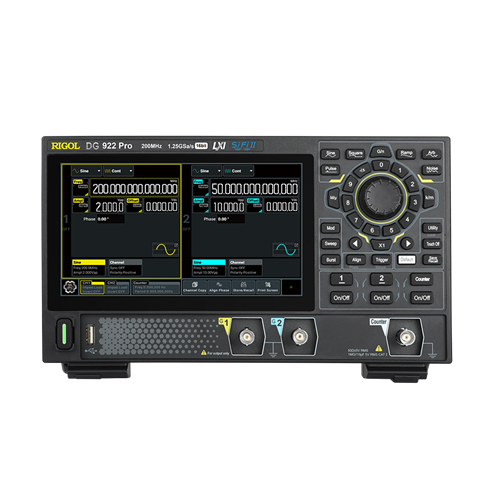

Rigol DG922 Pro function generator (200 MHz. dual-channel)

The DG900 Pro series arbitrary function and waveform generator provides a sampling rate of up to 1.25 GSa/s and a memory depth of 16Mpts (standard). It is an affordable two-channel solution that combines multiple functions including function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator , frequency meter.

Description
Model DG922Pro
Channels
2
Out Frequency
200 MHz
Sample Rate
1.25 GSa/s
Waveform Memory depth
16 Mpts/CH (standard) , 32 Mpts/CH (optional)
Vertical Resolution
16 bits
Monitor
7-inch touch screen, 1024 x 600 resolution
Waveform Output Mode Continuous, Modulation, Sweep, Burst, Sequence
Basic Waveforms Sine, Square, Ramp, Pulse, Noise, Arb, Harmonic
Built-in Arb
Waveform		 148 types of waveforms, including Sinc, Exponential Rise, Exponential Fall, ECG, Gaussian, HaverSine, and Lorentz.
Modulation Type AM, FM, PM, ASK, FSK, PSK, PWM, SUM
Standard Interface
LAN, Web Control, USB Host, USB Device
Optional Accessories RA5040K 40 dB Attenuator (50 Ω, 1 W)
Upgrade Options 32 Mpts/CH Memory Depth Upgrade Option
Weight/Dimensions (W×H×D)
Weight Package excluded: <1.78 kg , Dimension 266 mm (W) x 165 mm (H) x 80 mm (D)








Features

Series Features

• Max. sample rate: 1.25 GSa/s
• Max. output frequency: 200 MHz
• 16-bit vertical resolution
• Arbitrary waveform editing function with a max. Arb waveform length of 16 Mpts/CH (32
Mpts/CH optional)

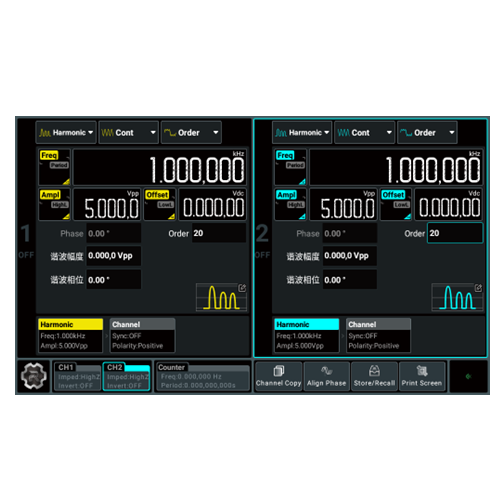

• Built-in high-order harmonic generator (max. 20th order)
• Independent signal frequency measurement channel with a max. frequency of 1 GHz
• USB and LAN interfaces for remote connection
• Type-C power interface for powering the instrument with mobile power source, satisfying
testing requirements in the field
• Standard Web Control function for easier remote cooperation
