GW Instek  |  SKU: 01GP232310GS
10% off

GW Instek GPE-2323

📢 OFFER VALID FROM 15 APRIL 2026 to 30 JUNE 2026

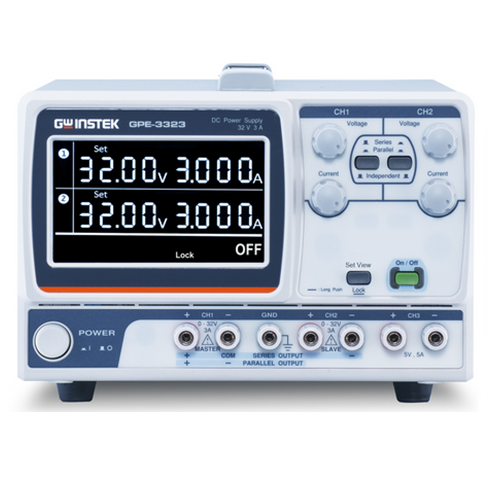

In the market, the GPE-X323 series is recognized as a high-resolution series. It is made according to the highest production quality. The GPE-X323 series offers two output powers 192W to 217W. The three output channels are isolated and independent (GPE-X323). These power supplies feature high resolution, low noise, high reliability, key lock function and compact size.
The GPE-X323 series establishes an excellent solution for high quality and cost.

Model

Description

Offer valid from 15 April 2026 to 30 June 2026

model GPE-2323
Power max 192W
SKU 01GP232310GS
Number of Channels CH1, CH2
Voltage 0-32V
Current 0-3A
CH1+CH2 Series Connection Voltage Range
 0-64V
Range of Current parallel connection CH1+CH2
 0-6A

    Features

    GPE-X323 series features

    • 1 / 2 / 3 / 4 Independent Isolated Output
    • 4.3 Inch LCD Display
    • Setting & Read back Resolution 100mV / 10mA (*1)
    • Output ON/OFF
    • Analog Control (Remote I/O) for Output ON / OFF
    • Set View function for checking an original V / I setting during output on
    • Key Lock Function
    • Tracking series and parallel operation
    • Smart cooling fan achieving low noise
    • Optional European Jack Type Terminal

    Manuals

    GPE-x323_specs
    GPE-x323_datasheet
