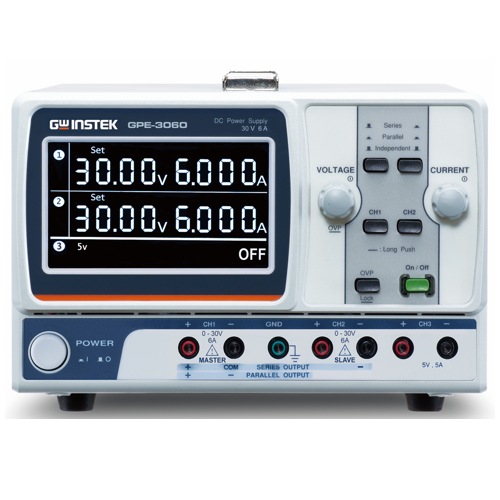

GW Instek GPE-3060

📢 OFFER VALID FROM 15 APRIL 2026 to 30 JUNE 2026

The GPE-3060/6030 models launched by GW Instek are high-resolution linear DC power supplies. Their main goal is to replace the existing GPC-3060D/6030D models. The GPE-3060/6030 provides 385 watts of output power and has three independent isolated output channels.

The GPE-3060 offers CH1/CH2 outputs from 0 to 30 V and 0 to 6 A, while the GPE-6030 supports CH1/CH2 outputs from 0 to 60 V and 0 to 3 A. Both models are equipped with the CH3 5.0 V to 5 A output.
As for high resolution, GPE-3060 provides 10mV/2mA while GPE-6030 offers 20mV/1mA.

The GPE-3060/6030 models use a new hybrid power supply design, which can save 13% power consumption compared to the wattage of conventional linear power supplies. In addition, the volume and weight of the 'power supply are significantly reduced.

Description

Offer valid from 15 April 2026 to 30 June 2026

model GPE-3060
Power max 385W
SKU 01GP306010GS
Number of Channels CH1 [0-30V 0-6A]
CH2 [0-30V 0-6A]
CH3 [5V, 5A]
Display
 4.3" monochrome LCD
Dimension&Weight
 210 (W) x 155 (H) x 362 (D) mm , 10Kg
CE Mark YES

Features

GPE-3060/6030 features

  • 1/2/3 Independent Isolated Output Channels
  • GPE-3060 Provides CH1/CH2: 0 ~ 30V/0 ~ 6A Output; CH3 Supports 5.0V at 5A
  • GPE-6030 Supports CH1/CH2: 0 ~ 60V/0 ~ 3A Output; CH3 Supports 5.0V at 5A
  • Series/Parallel Tracking Function
  • Setting/Read back Resolution :Voltage (4digits) : 10mV (GPE-3060) / 20mV (GPE-6030)Current (4digits) : 2mA (GPE-3060) / 1mA (GPE-6030)
  • Output On/Off Function
  • Simple Analog Control Interface
  • Multiple Protection Apparatuses Such as Overvoltage and Overload Protection Functions
