GW Instek  |  SKU: 01GP332310GS
10% off

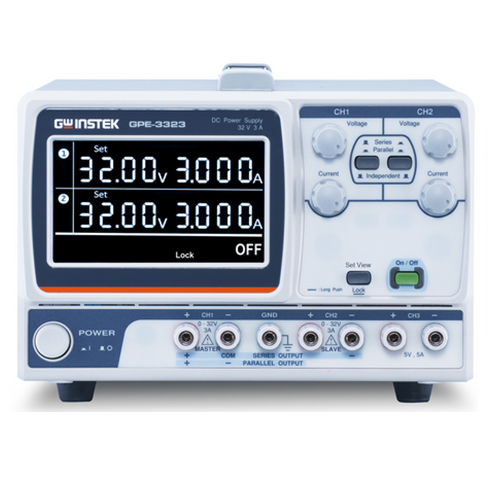

GW Instek GPE-3323

📢 OFFER VALID FROM 15 APRIL 2026 to 30 JUNE 2026

In the market, the GPE-X323 series is recognized as a high-resolution series. It is made according to the highest production quality. The GPE-X323 series offers two output powers 192W to 217W. The three output channels are isolated and independent (GPE-X323). These power supplies feature high resolution, low noise, high reliability, key lock function and compact size.
The GPE-X323 series establishes an excellent solution for high quality and cost.

Model

Description

Offer valid from 15 April 2026 to 30 June 2026

model GPE-3323
Power max 217W
SKU 01GP332310GS
Number of Channels  CH1  [0-32V 0-3A]
CH2  [0-32V 0-3A]
CH3  [0-5V 0-5A]
CH1+CH2 Series Connection Voltage Range
 0-64V
Range of Current parallel connection CH1+CH2
 0-6A

    Features

    GPE-X323 series features

    • 1 / 2 / 3 / 4 Independent Isolated Output
    • 4.3 Inch LCD Display
    • Setting & Read back Resolution 100mV / 10mA (*1)
    • Output ON/OFF
    • Analog Control (Remote I/O) for Output ON / OFF
    • Set View function for checking an original V / I setting during output on
    • Key Lock Function
    • Tracking series and parallel operation
    • Smart cooling fan achieving low noise
    • Optional European Jack Type Terminal

    Manuals

    GPE-x323_specs
    GPE-x323_datasheet
