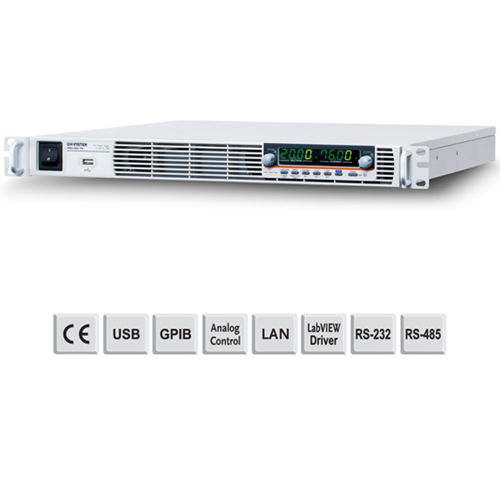

PSU series features
- Voltage Output : 6V/12.5V/20V/40V/60V/100V/150V/300V/400V/600V
- Power Output : 1200W ~ 1560W
- C.V/C.C Priority Mode
- Adjustable Voltage/Current Rise and Fall Time
- Series/Parallel Connection : Max. 2 units (Models Under 300V)/4 units of The Same Model
- High Efficiency and High Power Density
- 1U Height and 19"Rack Mount Size
- Three sets of Preset Function
- Bleeder Control Function
- Internal Resistance Function
- Panel Lock Function
- Protection : OVP, OCP, OHP, UVL, AC Fail, FAN Fail
- Standard : USB, LAN, RS-232, RS-485, Analog Control
- Option : GPIB, Isolated Analog Interface (Voltage Control/Current Control)
Standard Accessories:
CD-ROM x 1(User Manual, Programming Manual), Output terminal cover x 1, Analog connector plug kit x 1, Output terminal M8 bolt set(6V~60V model), Input terminal cover x 1, 1U Handle(RoHS), 1U Bracket(LEFT, RoHS), 1U Bracket(RIGHT, RoHS), Power Cord(10A) provided for certain regions only
Optional Accessories:
GTL-246 USB cable, USB 2.0 A-B type cable, 4P
PSU-01A Joins a vertical stack of 2 PSU units together. 2U-sized handles x2, joining plates x2
PSU-01B Bus Bar for 2 units in parallel operation
PSU-01C Cable for 2 units in parallel operation
PSU-02A Joins a vertical stack of 3 PSU units together. 3U-sized handles x2, joining plates x2
PSU-02B Bus Bar for 3 units in parallel operation
PSU-02C Cable for 3 units in parallel operation
PSU-03A Joins a vertical stack of 4 PSU units together. 4U-sized handles x2, joining plates x2
PSU-03B Bus Bar for 4 units in parallel operation
PSU-03C Cable for 4 units in parallel operation
PSU-232 RS232 Cable with DB9 connector kit
PSU-485 RS485 Cable with DB9 connector kit
GRM-001 Slide bracket 2pcs / set
PSU-GPIB GPIB Interface Card (Factory Installed)
PSU-ISO-I Isolated Current Remote Control Card (Factory Installed)
PSU-ISO-V Isolated Voltage Remote Control Card (Factory Installed)
GPW-001 UL/CSA power cord, 3M
GPW-002 VDE power cord, 3M
GPW-003 PSE power cord, 3M
