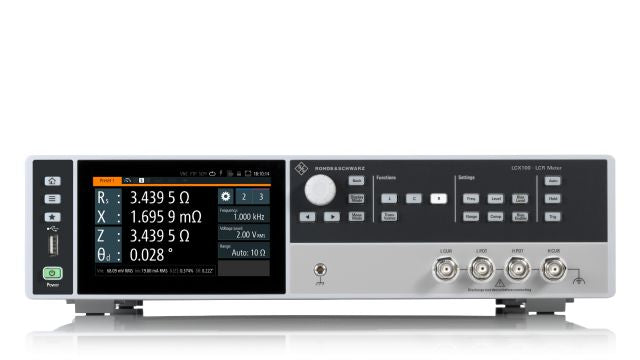

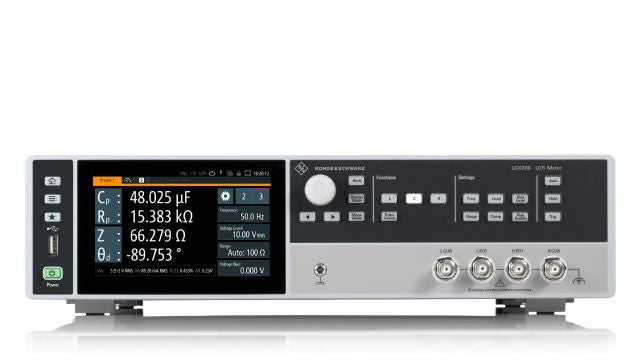

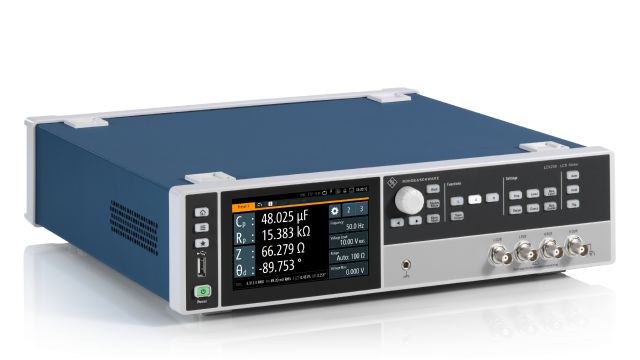

R&S®LCX200COM LCR Meter

The R&S®LCX200 has an upper frequency limit of 500 kHz and can be extended to 1 MHz or 10 MHz using software options when needed.

All instruments also allow for DC measurements. Internally generated voltages up to 10 V cover most applications.

Through an option, voltages up to 40 V can also be applied externally.
A fast data logging function allows all measured values to be recorded up to 10 times per second.
Dynamic impedance measurements can be performed using the advanced analysis function. Using a sweep, impedance values can be determined for a range of frequency values or other parameters.

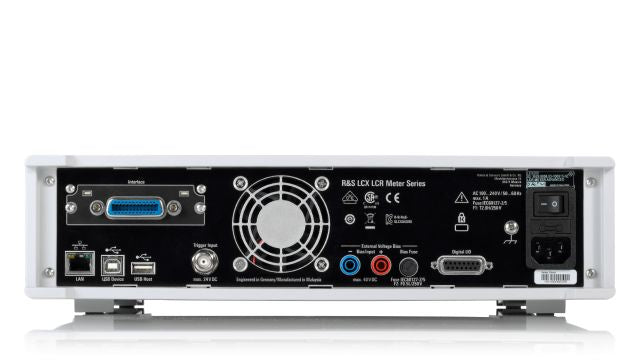

Measurements can be triggered and controlled externally via digital I/O ports. The binning function allows measured components to be sorted and categorized by their values into up to eight categories.
The large capacitive touchscreen is the central element that facilitates instrument operation through a modern and intuitive interface that graphically displays the results of the
measurements.
Remote controllability and the possibility of installation in a rack make the R&S®LCX meter perfect for integration into automated testing systems.

promo valid until September 30, 2025

Package includes :

R&S®LCX200 LCR METER ADVANCED
R&S®LCX-K106 ADVANCED ANALYSIS OPTION
R&S®LCX-K107 BINNING OPTION
R&S®LCX-K108 EXTENDED BIAS OPTION
R&S®LCX-K210 FREQUENCY UPGRADE 10 MHZ

Key Features

R&S®LCX200
DC test signal frequency, 4 Hz to 10 MHz (option)
Test signal voltage < 1 MHz: 100 mV to 10 V,
> 1 MHz: 100 mV to 2 V
DC bias voltage (internal) 0 V to +10 V
DC bias current (internal) 0 mA to 200 mA
External DC bias voltage, input 0 V to +40 V
Source impedance 100 Ω, 10 Ω
Measurement range 100 mΩ to 100 MΩ
Basic accuracy for impedance measurements 0.05 %
