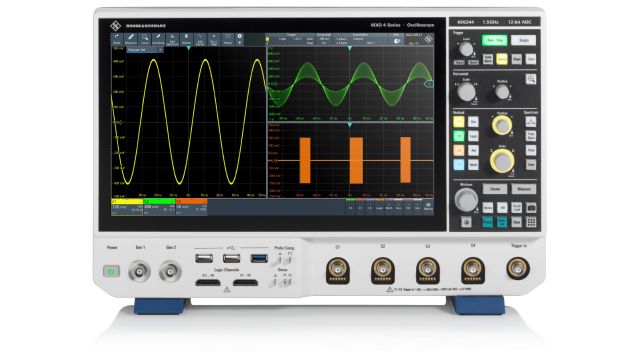

R&S® MXO44-ULTM 1.5GHz Oscilloscope, 4 Channels

Package includes :
MXO 44: low-speed serial buses (I 2 C/SPI/QuadSPI/UART/RS-232/RS-422/RS-485), automotive protocols (CAN/CAN FD/CAN XL/LIN), automotive Ethernet bus (10BASE-T1S), power analysis, frequency response analysis, low-speed MIPI protocols, arbitrary generator, mixed signals option (MSO), memo-ria 800 Mpoints option

----------------------------------------------------------------------------------------

MXO 4 series 4 channel oscilloscope ultimate package Contains serialized product+options:
MXO 4 series 4 channel oscilloscope 1335.5050K04 consisting of: -
MXO 4 series 4 channel oscilloscope -
MXO4-B2415 1.5 GHZ OPTION -
MXO4-B6 ARB Generator -
MXO4-K510 LOW SPEED SERIAL BUSES -
MXO4-K520 AUTOMOTIVE PROTOCOLS -
MXO4-K560 AUTOMOTIVE ETHERNET BUS -
MXO4-K31 POWER ANALYSIS -
MXO4-K36 FREQ. RESPONSE ANALYSIS -
MXO4-K550 MIPI LOW SPEED PROTOCOLS -
MXO4-K530 AEROSPACE PROTOCOLS -
MXO4-B108 MEMORY OPTION 800MPTS

Features common to the entire series

• Channels: 4 on all models
• Bandwidth: 200 MHz - 1.5 GHz
• Sampling rate: up to 5 Gsample/s
• Display refresh rate: 4.5 million waveforms per second
• Vertical resolution: 12 bits standard up to 18 bits in HD mode
• Acquisition memory: 400 Mpt per channel (optional up to 800 Mpt interleaved)
• Trigger: digital with reset frequency <21ns and jitter equal to 1ps
• Screen: 13.3" Full HD capacitive touchscreen
