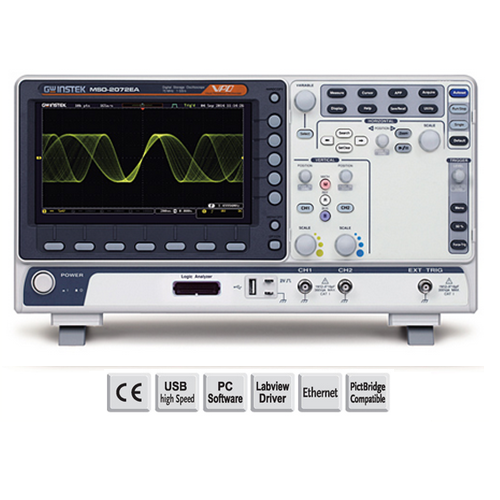

GW-Instek MSO-2104EA 100MHz Signal-Mixed Oscilloscope. 4+16 Channels

📢 OFFER VALID FROM 15 APRIL 2026 to 30 JUNE 2026

The MSO-2000E series identifies mixed-signal oscilloscopes that offer two analog channels + 16 digital channels or 4 analog channels +16 digital channels.

The MSO-2000E series altogether includes both the MSO-2000E family and the MSO-2000EA family. The MSO-2000E family has a built-in 16-channel logic analyzer while the MSO-2000EA family has a built-in 16-channel logic analyzer and a dual-channel 25 MHz AWG arbitrary waveform generator. The entire series features bandwidth selections of 200MHz, 100MHz and 70MHz.

The two-channel analog models provide a real-time sampling rate of 1GSa/s per channel. while the four-channel analog models provide a maximum real-time sampling rate of 1GSa/s. The 8-inch 800*480 TFT LCD display and minimum vertical range of 1mV/div enable the MSO-2000E series to measure complex weak signals and clearly display measurement results.

Description

Offer valid from 15 April 2026 to 30 June 2026

model MSO-2104EA
SKU 01MS214EA0GT
Bandwidth
 100MHz
Channels 4
Record lenght 10M / ch
Real time sampling rate Max 1 GSa/s
Builtin 16 Channel Logic Analyzer and Dual Channel 25MHz Arbitrary Waveform Generator











Features

MSO-2000E series features

  • 200/100/70MHz Bandwidth Selections : 2 or 4 Channels
  • Real Time Sample Rate Per Channel : 1GSa/s (2 Channel Models); Maximum Real Time Sample Rate : 1 GSa/s (4 Channel Models)
  • MSO-2000E Equips with a 16 Channel Logic Analyzer
  • MSO-2000EA Equips with a 16 Channel Logic Analyzer and a Dual Channel 25MHz Arbitrary Waveform Generator
  • Free Frequency Response Analyzer Software for MSO-2000EA
  • Per Channel 10M Memory Depth and VPO Waveform Ddisplay Technology
  • Waveform Update Rate up to 120,000 wfm/s
  • 8 ” WVGA TFT LCD
  • Maximum 1M FFT Provides Higher Frequency Domain Resolution Measurements
  • High Pass, Low Pass and Band Pass Filter Functions
  • 29,000 Segmented Memory Sections and Waveform Search Function
  • I²C/SPI/UART/CAN/LIN Serial Bus Trigger and Decoding Functions
  • Data Log Function is Able to Track Signal Changes up to 1000 Hours
  • Mask Test Function
  • Network Storage Function
