Rigol  |  SKU: DHO802SKU

Rigol DHO800

The DHO800 series is RIGOL's new launched high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise. The DHO800 series is a brand new economical digital oscilloscope designed for the vast
mainstream digital oscilloscope market to meet their design, debugging, and test demands

Configuration

Description

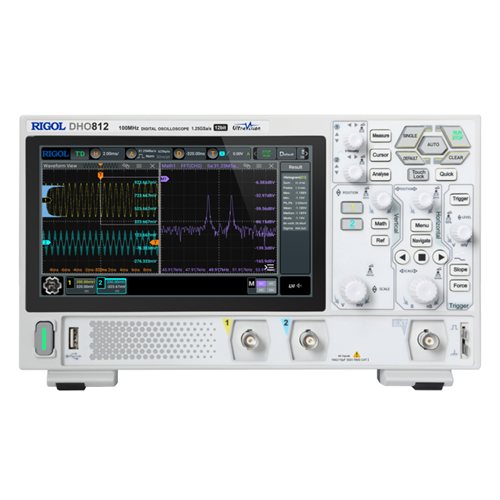

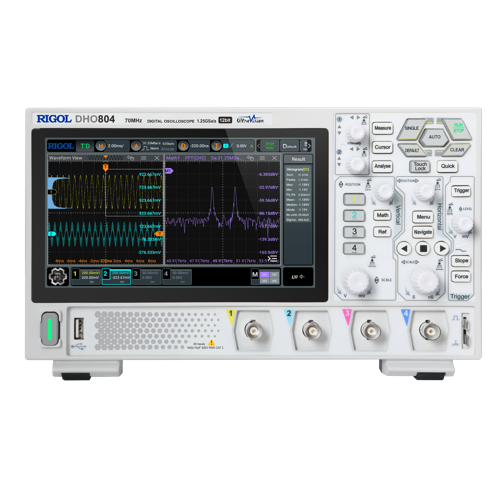

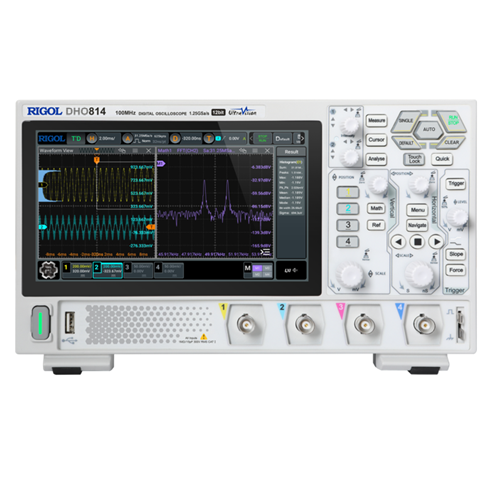

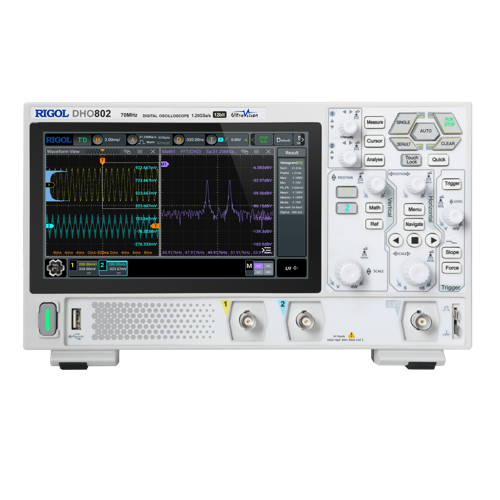

Model DHO802 DHO804 DHO812 DHO814
Bandwidth 70 MHz 70 MHz 100 MHz 100 MHz
Analog Channels 2 + EXT 4 2 + EXT 4
Rise Time ≤5 ns ≤5 ns ≤3.5 ns ≤3.5 ns
Vertical Res. 12 bits 12 bits 12 bits 12 bits
Max Sample Rate 1.25G (S)
625M (F)		 1.25G (S)
312.5M (F)		 1.25G (S)
625M (F)		 1.25G (S)
312.5M (F)
Memory Depth 25 Mpts 25 Mpts 25 Mpts 25 Mpts
Capture Rate 30k (Vect)
1M (Ultra)		 30k (Vect)
1M (Ultra)		 30k (Vect)
1M (Ultra)		 30k (Vect)
1M (Ultra)
Rec/Playback 500k frames 500k frames 500k frames 500k frames
Peak Detection 1.6 ns 1.6 ns 1.6 ns 1.6 ns
Display 7" (1024x600) 7" (1024x600) 7" (1024x600) 7" (1024x600)

Features

DHO800 series features

  • Ultra-low noise floor, purer signal, never miss the small signals
  • Up to 12 bits resolution for all the models of this series
  • Max. analog bandwidth of 100 MHz, 4 analog channels, external trigger output (std.) available for the dual-channel model
  • Max. real-time sample rate of 1.25 GSa/s
  • Max. memory depth of 25 Mpts
  • Vertical sensitivity range: 500 μV/div to 10 V/div
  • Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
  • Digital phosphor display with real-time 256-level intensity grading
  • Waveform search and navigation function allows you to debug the signal anomalies faster
  • 7" (1024x600) capacitive multi-touch screen
  • Brand new Flex Knob brings user-friendly experience
  • USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
  • Novel and delicate industrial design, easy to operate
  • Unique online upgrade
