Rigol DHO900

The DHO900 series just introduced by Rigol , identifies the new economical high-performance digital oscilloscope.
Although compact in design, it has high performance. It features an acquisition speed of up to 1,000,000 wfms/s (in UltraAcquire mode), a memory depth of 50 Mpt, 12-bit resolution and low noise.
This series supports 16 digital channels. An instrument can perform both analysis with analog and digital channels , It is suitable in design and testing scenarios. With a reasonable price you can access serial and parallel bus analysis , bode analysis and other functions typical of R&D . education , scientific research environments.

Configuration

Description

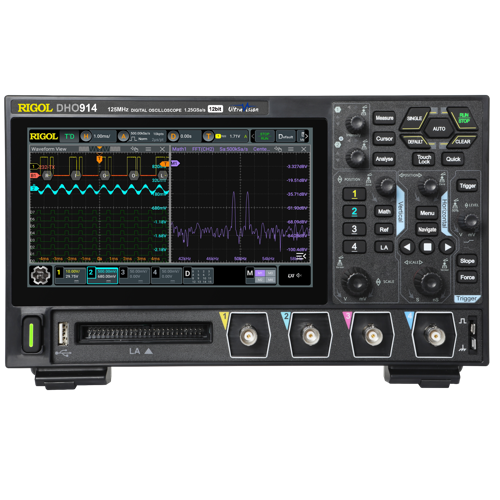

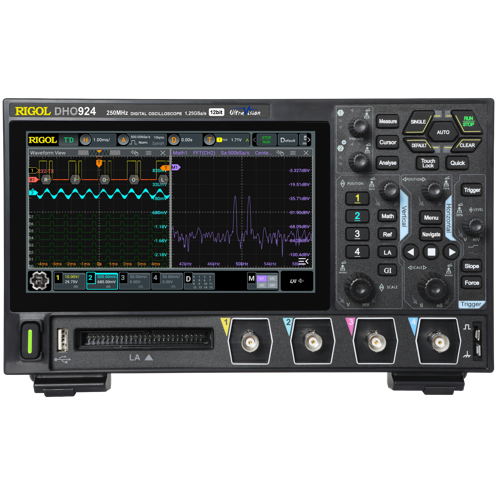

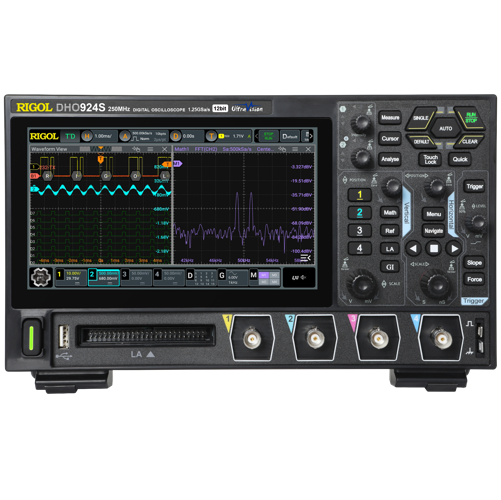

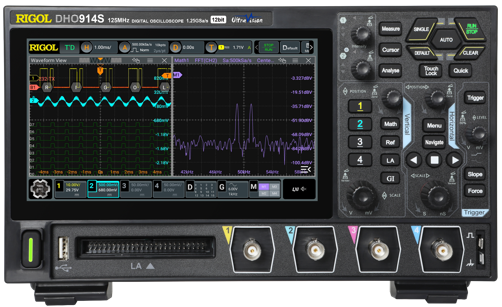

Model DHO914 DHO914S DHO924 DHO924S
Bandwidth 125 MHz 250 MHz
Rise Time ≤2.8 ns ≤1.4 ns
Channels 4 Ana + 16 Dig 4 Ana + 16 Dig + AFG 4 Ana + 16 Dig 4 Ana + 16 Dig + AFG
Vertical Res. 12 bits
Sample Rate 1.25G (S) | 625M (D) | 312.5M (F)
Memory Depth 50 Mpts (S) | 25 Mpts (D) | 10 Mpts (F)
Capture Rate 30k (Vector) | 1M (UltraAcquire)
Peak Detection 1.6 ns glitches
Rec/Playback Max. 500,000 frames
Display 7" Touch (1024x600)

Features

DHO900 series features

  • Ultra-low noise floor, purer signal, never miss the small signals
  • Up to 12 bits resolution for all the models of this series
  • Max. analog bandwidth of 250 MHz, 4 analog channels
  • 16 digital channels (std.), logic probe required to be purchased if needed
  • Max. real-time sample rate of 1.25 GSa/s
  • Max. memory depth of 50 Mpts
  • Vertical sensitivity range: 200 μV/div to 10 V/div
  • Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
  • Digital phosphor display with real-time 256-level intensity grading
  • Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc
  • Waveform search and navigation function allows you to debug the signal anomalies faster
  • 7" (1024x600) capacitive multi-touch screen
  • Brand new Flex Knob brings user-friendly experience
  • USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
  • Novel and delicate industrial design, easy to operate
  • Unique online upgrade
