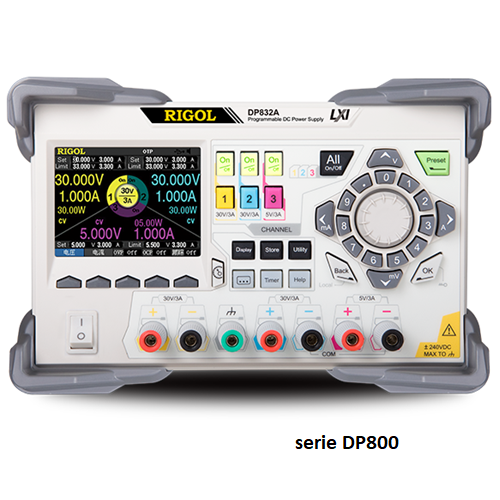

Rigol DP832A

DP832A/DP832: 3 outputs, 30V/3A || 30V/3A, 5V/3A, total power up to 195W

Differences between +A and Non-A models:
- Support for multiple advanced functions: timer output and delay (are standard for all models), while recorder/analyzer/monitor/trigger functions (are standard for "+A" models and optional for other models)
- Support for various interfaces: USB Host&Device (standard for all models ), USB-GPIB (optional for all models ), LAN/RS232/Digital IO (standard for "+A" models and optional for other models)
- The +A and Non-A models also differ in the values of some specifications , refer to the values in the datasheet.

Description
Model DP832A
Channels 3
CH1,CH2,CH3 30V/3A ||30V/3A ||5V/3A, with remote sense , maximum power up to 195W
Low ripple and noise
Normal mode voltage <350uVrms/2mVpp
Normal mode current <2mArms

Features

- Excellent linear and load regulationspeed
- Fast transient response time: <50us
- Standard OVP/OCP/OTP protection functions
- Standard timing output
- Built-in V,A,W measurements and waveform display
- Independent control for each channel
- 3.5-inch TFT display
