Rigol  |  SKU: DS1102Z-ESKU

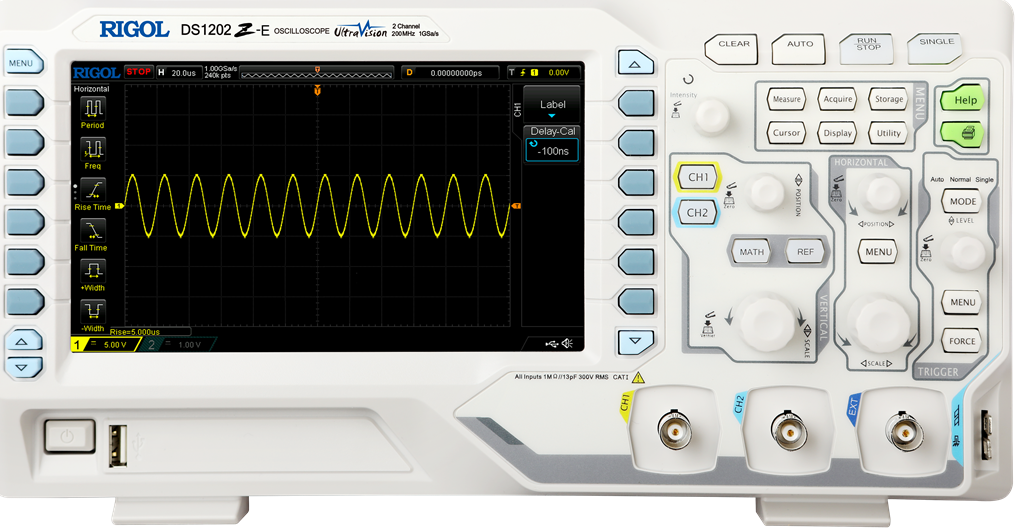

Rigol DS1000Z-E

DS1000Z-E series is a high-performance and economic digital oscilloscope designed for the designing, debugging and educational requirements of the mainstream digital oscilloscope market. This manual takes DS1202Z-E as an example to introduce DS1000Z-E series.

Configuration

Description
Model DS1102Z-E DS1202Z-E
Bandwidth 100 MHz 200 MHz
Channels 2 2
Rising Time 3.5 ns 1.75 ns
Sample Rate 1 GSa/s (S)
500 MSa/s (D)		 1 GSa/s (S)
500 MSa/s (D)
Memory Depth 24 Mpts (S)
12 Mpts (D)		 24 Mpts (S)
12 Mpts (D)
Capture Rate 60,000 wfms/s 60,000 wfms/s
Peak Detect 4 ns 4 ns
Sample Mode Real-time Real-time
Display 7" (800x480) 7" (800x480)

Features

DS1000Z-E series features

  • Analog channel bandwidth: 200 MHz (DS1202Z-E): 100 MHz (DS1102Z-E)
  • 2 analog channels
  • Real-time sample rate up to 1 GSa/s
  • Memory depth up to 24 Mpts(Std.)
  • Up to 30,000 wfms/s waveform capture rate
  • Up to 60,000 frames hardware real-time waveform recording and playback functions
  • Innovative "UltraVision" technology
  • Various trigger and bus decoding functions
  • Low noise floor, vertical scale range: 500 uV/div to 10 V/div
  • Various interfaces: USB Host&Device, LAN (LXI), AUX
  • Novel and delicate industrial design, easy to use
  • 7-inch WVGA (800x480) TFT LCD, intensity graded color display

Manuals

DS1000ZEDataSheet

DS1000ZEQuickGuide

DS1000ZEProgrammingGuide
