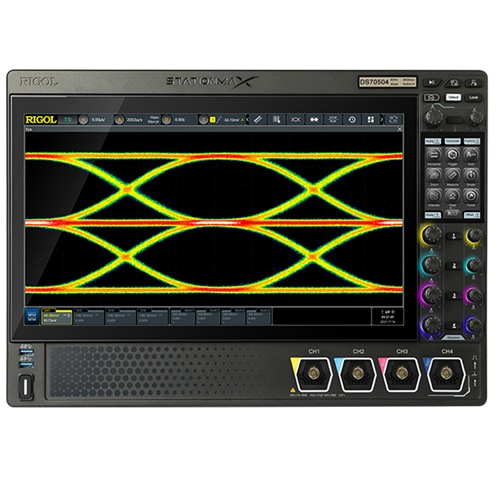

The RIGOL DS70000 series of digital oscilloscopes integrates 5 independent instruments into 1, including a digital oscilloscope, a spectrum analyzer, a digital multimeter, a high-precision frequency counter and totalizer, and a protocol analyzer. The DS70000 series offers an optimal choice to meet the user's real needs.

With the brand new UltraVision III platform, the DS70000 series digital oscilloscope offers industry-leading performance for its key specifications such as memory depth, waveform acquisition rate, and vertical resolution. It supports computer, embedded, automotive electronics, and other serial bus analyses; it meets power integrity test analysis; and it improves the efficiency of joint time and frequency domain analysis.

Model

Description

📢 Rigol Promotion - Model DS70504
15 % additional margin by lead registration. (Valid until June 30, 2026)

Model DS70504 DS70304
Bandwidth (50 Ω) 5 GHz 3 GHz
Bandwidth (1 MΩ) 500 MHz
Rise Time (50 Ω) ≤108 ps ≤130 ps
Input Channels 4 Analog + 1 EXT
Sampling Mode Real-time Sampling

Features

Digital Oscilloscope

  • Bandwidth models from 3 GHz and 5 GHz
  • Real-time sampling rate up to 20 GSa/s
  • 4 analog channels and 1 EXT channel
  • Memory depth up to 2 Gpts
  • Maximum waveform acquisition rate of 1,000,000 wfms/s

Digital Voltmeter

  • 3-digit DC/AC rms voltage measurement
  • Alarm for reaching or exceeding limit

High-Precision Frequency Counter and Totalizer

  • High-precision frequency counter from 3 to 8 digits (selectable)
  • Supports statistics on maximum and minimum frequency values
  • 48-bit totalizer (standard)

Real-Time Spectrum Analyzer (optional)

  • Standard configuration of advanced FFTs, real-time operation for a maximum of 16 Mpts of waveform data
  • Maximum frequency range: oscilloscope analog bandwidth
  • Up to 4 groups of operations can be displayed simultaneously
  • Independent FFT color persistence display
  • Up to 15 peaks available for the peak search function; event table available for export

Protocol Analyzer (optional)

  • Supports RS232 / UART, I2C, SPI, CAN, LIN, I2S, FlexRay, and MIL-STD-1553 serial buses
  • Supports triggers and decodings on the analog channel
  • Operation with waveform recording, pass/all

Manuals

DS70000_datasheet
DS70000_usermanual
DS70000_programming_guide
