Rigol  |  SKU: MHO2024SKU

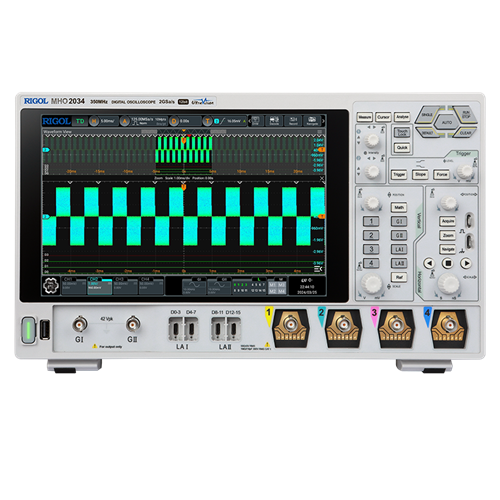

Rigol MHO2000

📢 Rigol BND Promotion - Model MHO2034
Get the MHO2000-BND option for 499,50 € BND Option, serie MHO2000 Pro. (Valid until June 30, 2026)

The MHO2000 series is a high-resolution 4-CH digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet the design, debugging, and test demands. It is developed based on RIGOL's brand new self-developed Centaurus technical platform. Its 1,000,000 wfms/s waveform capture rate (in fast recording mode), 500 Mpts memory depth, 12-bit resolution, excellent noise floor and vertical measurement accuracy can meet the test demands for higher accuracy. The MHO2000 series digital oscilloscope supports AFG, digital signal analysis, Bode plot, and other functions. It is powered by battery pack, applicable for various complex test
scenarios.

Configuration

Description

📢 Rigol BND Promotion - Model MHO2034
Get the MHO2000-BND option for 499,50 € BND Option, serie MHO2000 Pro. (Valid until June 30, 2026)

Model MHO2024 MHO2034
Bandwidth 200 MHz 350 MHz
Rise Time (50 Ω) 2 ns 1.4 ns
Channels 4 Analog + 1 EXT
Sample Rate 2 GSa/s
Memory Depth 500 Mpts (Half) | 250 Mpts (Full)
Vertical Res. 12-bit (up to 16-bit High Res)
Capture Rate 200k (Vector) | 1M (Record)
Peak Detection 500 ps glitches
Waveform Recording Max. 500,000 frames
Display 10.1" Touch (1280×800)

Features

MHO2000 series features

  • Based on RIGOL's brand new self-developed Centaurus technical platform
  • 12-bit resolution[1]
  • Max. 350 MHz bandwidth, 4 analog channels, and 1 external trigger channel
  • Standard configuration of 16 digital channels (required to purchase the logic analyzer probe)
  • Real-time sample rate: up to 2 GSa/s
  • Max. memory depth 500 Mpts
  • Vertical sensitivity up to 100 μV/div
  • Max. waveform capture rate of 1,000,000 wfms/s (in fast recording mode)
  • Arbitrary/Function Waveform Generator (AFG)[2], power analysis, histogram, digital signal analysis, Bode plot, and protocol decodings
  • Search and navigation functions enable users to quickly search for the signals with exceptions and locate them accurately
  • 256-level intensity grading display, with digital real-time fluorescence technology
  • 10.1 1280*800 high-definition touch screen
  • Brand new Flex knob brings friendly user experience
  • Standard configuration of USB Device, USB Host, LAN, HDMI interfaces
  • Battery pack-powered, convenient to charge anytime and anywhere, providing great feasibility for measurement
  • Online upgrade
  • Standard configuration of the photoelectric encoder operating knob to improve the service life of the instrument

Manuals

MHO2000_Datasheet

MHO2000_UserGuide
