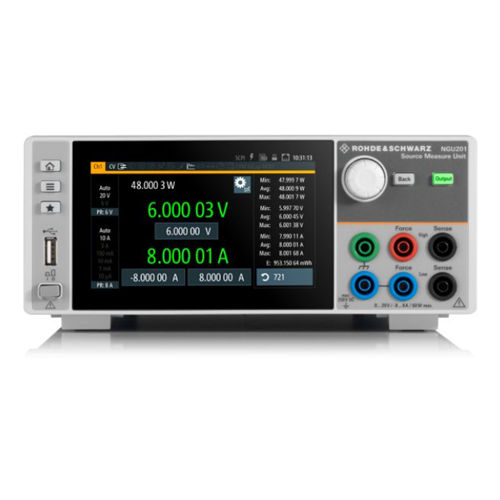

R&S®NGU201COM SMU Power and Measurement Unit

Price valid while supplies last in stock

1 Channel , 60 W , 0-20 V , 0-3 or 8 A

Due to their extreme accuracy and fast recovery time, R&S®NGU source measure units (SMUs) are designed for very important applications.

One ammeter measures currents from nA to A in a single acquisition , not requiring multiple sweeps , like other products.

The product's short recovery time allows it to measure fast load changes that occur , for example , when devices switch from sleep mode to transmit mode.

Data acquisition occurs with a speed of less than 2 μs resolution , called FastLog.

The R&S®NGU source measure units ( SMU ) are designed with two- or four-quadrant architecture , allowing operation as both source and sink to simulate batteries and loads.

The package includes :

NGU201 2-Q SOURCE MEASURE UNIT
NGU-K103 DIGITAL TRIGGER I/O
NGU-K104 DIGITAL VOLTMETER FUNCTIONALITY
NGU-K106 BATTERY SIMULATION

• Two/four quadrants: operates as source and sink
• High speed data acquisition (FastLog function)
• Voltage priority and current priority mode
• High-capacitance mode
• Intuitive, price-transparent online product configurator
