JapanUnix  |  SKU: FR_scara

Japan Unix: UNIX-FR serie Scara

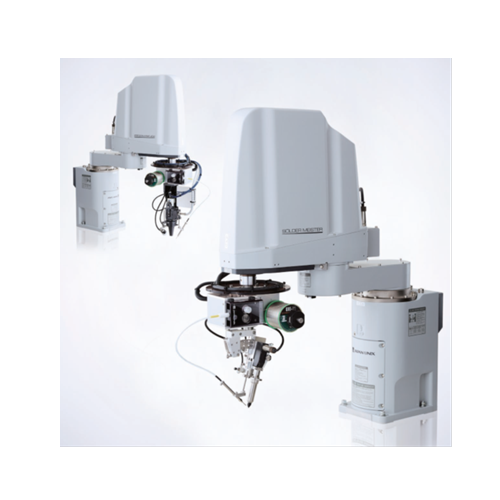

UNIX-FR Robot

Horizontal multiple-Joint soldering robot. Supports not only soldering by iron but also laser soldering.
Equipped with servo motors. The pinnacle of soldering robots.
The SOLDER MEISTER FR series, the highest-end model eveloped for automated soldering.
High reliability quality, IoT, safety, workability, line tact, and all automation line issues are solved. Various applications can be added to realize automation of difficult soldering.

Description



New Generation of Horizontal Multiple-joint Soldering Robot
for the Era of Full Automation

Enhanced communication network function for output and storage of soldering-related data, and comprehensive software that can be used regardless of operator skill.
Of course, it is also compatible with SolderingManager for enhanced traceability. The new robot is designed to be more manpower-saving and easier to use. Supports laser soldering as well as soldering with an iron.

Features
Soldering Condition Software
Soldering Configurator M3

Software for saving and editing soldering data. The software has an intuitive interface that allows step-by-step editing on a PC, enabling editing of soldering conditions regardless of operator skill.

Monitoring Software
Soldering Manager for FR

Real-time monitoring and tracing of soldering robot operation status. Production status can be constantly monitored even in in-line production to reduce manpower. A camera mounted on the soldering head can also record video, and together with serial management by reading 2D code information, enhanced traceability is possible.

External Communication Function via Ethernet

Ethernet communication enables not only monitoring and tracing of operating conditions, but also external modification of solder condition settings. This makes it possible to edit conditions via a line-specific interface, enabling a more integrated automation line to be built.
Industrial Ethernet (Ethernet/IP) is also supported.
