GW Instek  |  SKU: 03LLSP8K801S

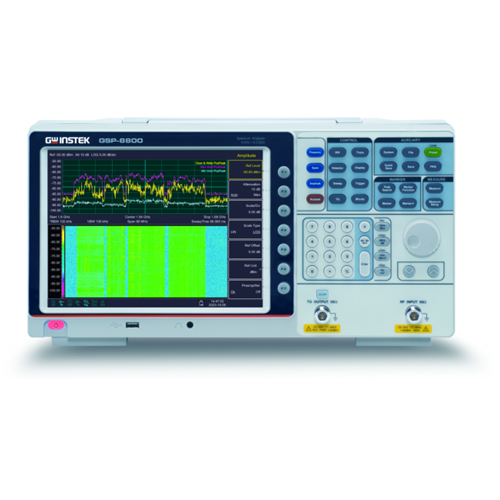

GW Instek GSP-8800(TG) 8.0GHz Spectrum Analyzer

GW-Instek's new GSP-8000 series presents three brand new spectrum analyzers with three different ranges namely 8.0 GHz, 3.8 GHz and 1.8 GHz. The series is suitable for teaching , in research and development areas , meets The test requirements for radio frequency products during production and development stages.

Description
Model GSP-8800(TG)
SKU 03LLSP8K801S
Frequency Range
9kHz ~ 8.0GHz
RBW
 1Hz ~ 1MHz in 1-3-5-10 steps
VBW 10Hz ~ 3MHz in 1-3-5-10 steps
Phase Noise -104 dBc/Hz
Sensitivity -160dBm/Hz Typical @PreAmp On
Built-in AM/FM Demodulation
Built-in Time Spec Function
Measurement Function ACPR/OCBW/CHPW, NdB BW, Pass-Fail, Freq. Counter, Noise Marker
Built-in 20dB Preamplifier
Communication Interface LAN, USB Host/Device
Display 10.4" XGA Output (1024*768)
Tracking Generator Included
EMI Filter Option


Features

The series provides resolution bandwidth (RBW) from 1 Hz to 1 MHz, video bandwidth (VBW) from 10 Hz to 3 MHz, phase noise of -104 dBc/Hz, a 20 dB preamplifier and the lowest noise floor 160 dBm/Hz (typical).As for measurement applications, the GSP-8000 series is equipped with built-in Time Spec function, AM/FM signal demodulation function, channel test function (channel power measurement), Pass-Fail function, etc. The Time Spec function can simultaneously observe and display the correlation between power, frequency and time. ACPR/OCBW/CHPW tests can be used to test adjacent channels, bandwidth occupancy ratio and channel power. The Pass-Fail function can be used to determine whether the signal is within the set range. The GSP-8000 uses a large 10.4-inch TFT LCD screen with XGA (1024*768) resolution to allow easy observation of test signals. For the communication interface, GSP-8000 provides two interfaces: USB and LAN. Through the USB host, users can quickly retrieve files stored during measurements, while the USB device and LAN interface allow users to control the instrument through dedicated PC software or use the corresponding command set to design the required program.GSP-8000 also provides two options, namely Tracking Generator TG and EMI filter. When placing an order, customers must decide on the TG function (GSP-8800). To further improve the efficiency of use other options can be activated through the corresponding software license (Soft-Key).

Manuals

GSP-8000_Quick_start_guide
GSP-8000_BrochureGSP-8000_DatasheetGSP-8000_User_Manual_ENGSP-8000_Programming_Manual
GSP-8000_activation_license_EMI
