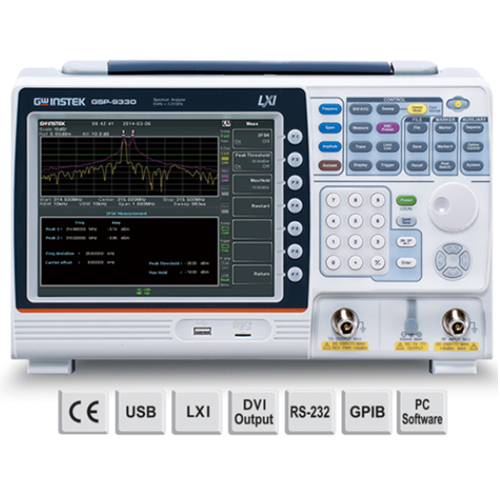

GW Instek GSP-9330 3.25GHz Spectrum Analyzer

GSP-9330 is a high-speed test spectrum analyzer with 3.25 GHz, offering the maximum scan rate of 204 μs. Users, through the high-speed scan time, can easily handle and analyze modulation signals. The keys to handling modulated signals are the fast scan time and signal demodulation functions. In addition to the AM / FM analog demodulation and analysis function, GSP-9330 also offers ASK / FSK and 2FSK digital signal demodulation and analysis functionality. Nowadays, electromagnetic compatibility issues are fundamental to product design processes. To this end, GSP-9330 has incorporated the EMC pretest solution to facilitate EMC testing. GSP-9330's simple and easy EMC pretest procedures can greatly reduce users' product launch times.

Description
Model GSP-9330
SKU 01SP933000GT
Frequency
Range 9 kHz to 3.25 GHz

Resolution 1 Hz
Frequency Reference Accuracy ±(period since last adjustment X aging rate) + stability over temperature + supply voltage stability
Aging Rate ±1 ppm max.
Frequency Stability over Temperature ±0.025 ppm
battery pack battery pack option 02 ( option )



Features

GSP-9330 Series Features

  • Frequency Range: 9kHz ~ 3.25GHz
  • 0.025ppm Frequency Stability and 1ppm aging Rate
  • RBW: 1Hz ~ 1MHz (3dB), 6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz
  • Fastest sweep time: 204us
  • Sensitivity: -149 dBm/Hz (@PreAmp on)
  • Built-in Preamplifier, 50dB Attenuator, and Sequence Function
  • Built-in EMC pretest function, Quasi-Peak/Average EMI detect mode
  • Built-in 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis
  • Built-in P1dB point, Harmonic, CHPW, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, N-dB bandwidth, Noise Marker, Frequency Counter, TDP, Gated Sweep
  • Built-in Spectrogram, Topographic and Split-Window Display Modes
  • Remote control EMI measurement software: SpectrumShot
  • Remote Control Interface: LAN, USB, RS-232
  • Options: Tracking Generator, GPIB Interface
