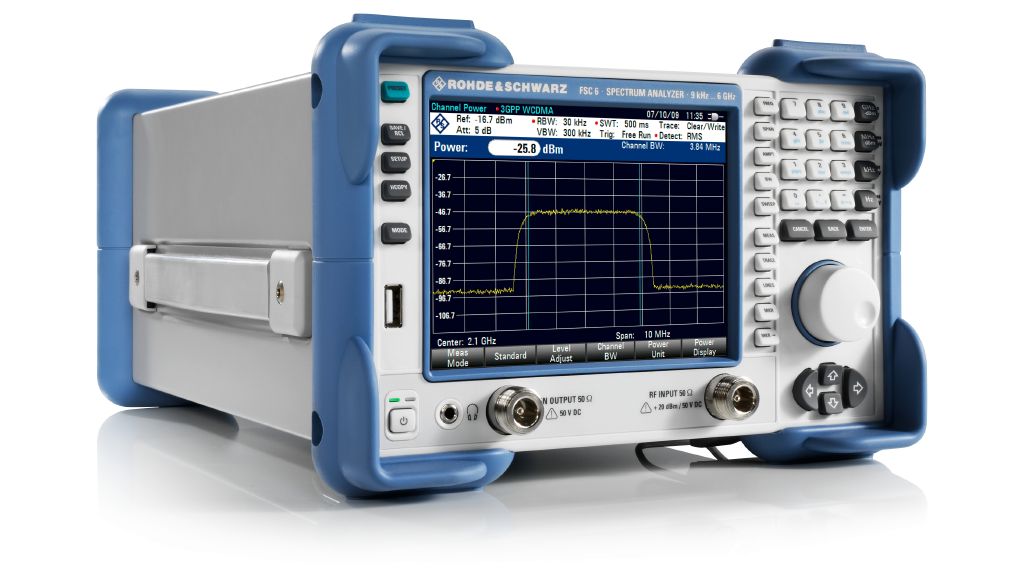

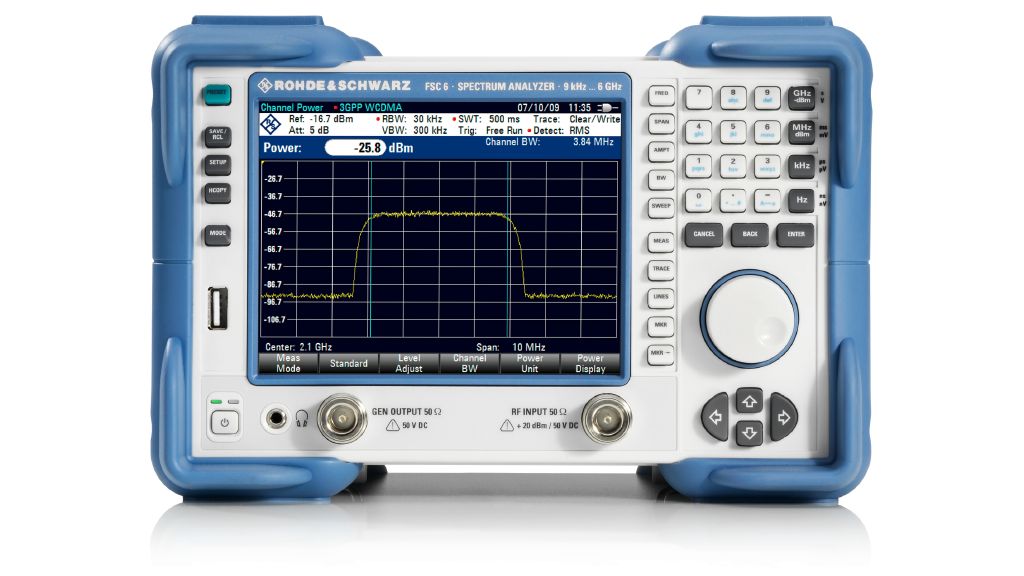

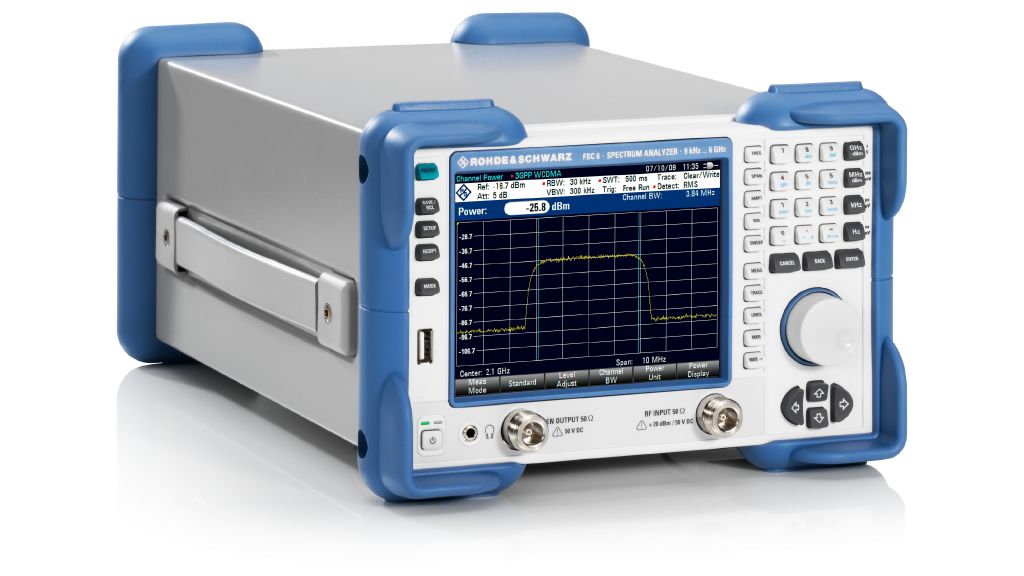

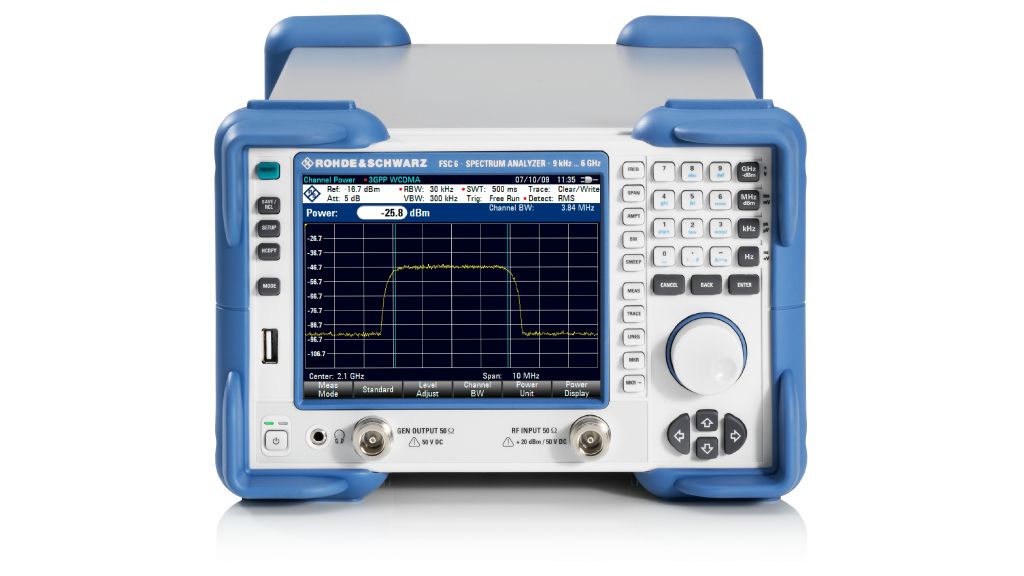

R&S® FSC3 spectrum analyzer

Compact and efficient analyzer

Offers all the essential functions of a professional spectrum analyzer with Rohde and Schwarz quality. It covers a wide range of applications, from simple development tasks, production or can be used for training RF professionals. It is ideal for service or maintenance applications.
R&S®FSC is equipped with numerous features to simplify and accelerate the development and testing of RF products. RF features and high accuracy ensure reliable and reproducible results.
Four different R&S®FSC models are available in the frequency range of 9 kHz to 3 GHz or 6 GHz, with or without tracking generator. An optional preamplifier available for all models increases sensitivity for measuring weak signals. Thanks to its compact design, R&S®FSC occupies minimal space on a lab bench.

Technical Features.

• Frequency range from 9 kHz to 3 GHz or 6 GHz
• Resolution bandwidths from 10 Hz to 3 MHz
• High sensitivity (< -141 dBm (1 Hz), with optional preamplifier < -161 dBm (1 Hz)
• High third-order intercept (> 10 dBm, typ. 15 dBm)
• Low measurement uncertainty (< 1 dB)
• Internal tracking generator (model .13/.16)
• Compact size
• Low power consumption (12 W)
• Storage of measurement results on USB flash drive

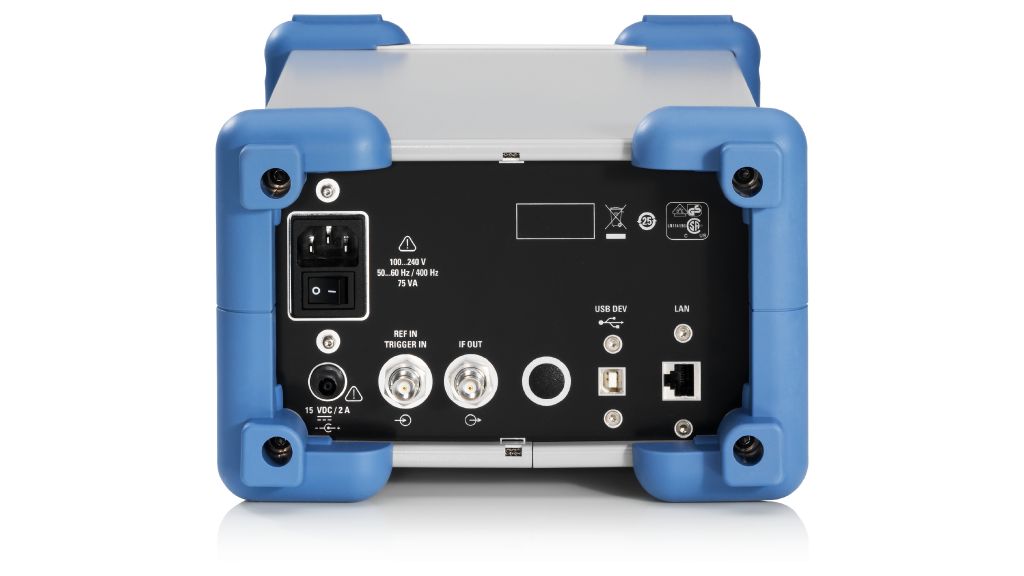

• LAN and USB interface for remote control and transfer of measurement data
• R&S®FSCView software for easy documentation of measurement results
