R&S® FSC6 Spectrum Analyzer - 6 GHz

Compact and efficient analyzer

Offers all the functions of a professional spectrum analyzer . It covers a wide range of applications, from development activities, to production or can be used for training RF professionals. It is ideal for service applications or maintenance work.
It is equipped with numerous functions to simplify and accelerate RF product development and testing. RF features and high accuracy ensure reliable and reproducible results.
An optionally available preamplifier increases sensitivity for measuring weak signals.

Features

• Frequency range from 9 kHz to 3 GHz or 6 GHz
• Resolution bandwidths from 10 Hz to 3 MHz
• High sensitivity (< -141 dBm (1 Hz), with optional preamplifier < -161 dBm (1 Hz)
• High third-order intercept (> 10 dBm, typ. 15 dBm)
• Low measurement uncertainty (< 1 dB)
• Internal tracking generator (model .13/.16)
• Compact size
• Low power consumption (12 W)
• Storage of measurement results on USB flash drive

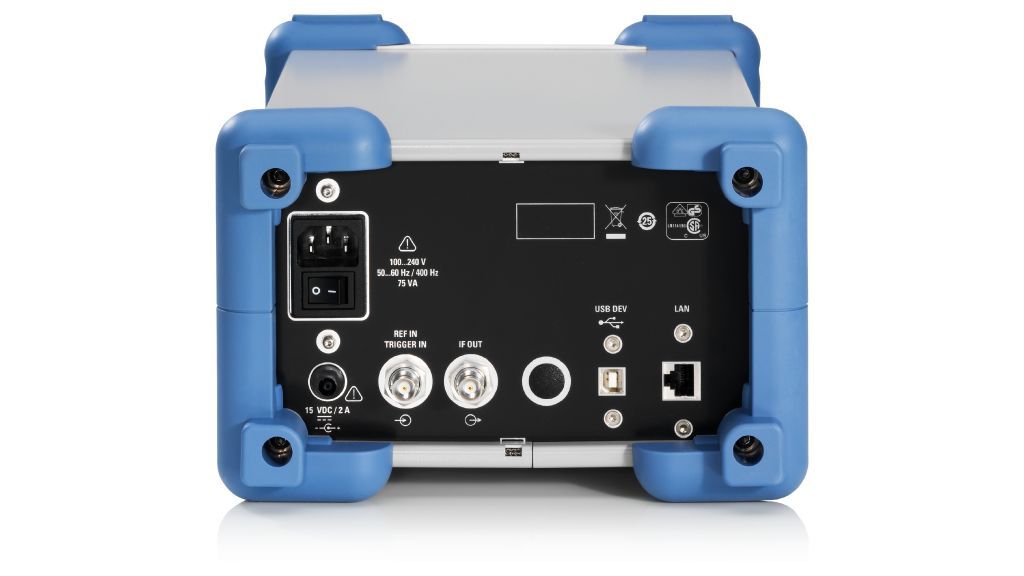

• LAN and USB interface for remote control and transfer of measurement data
• R&S®FSCView software for easy documentation of measurement results

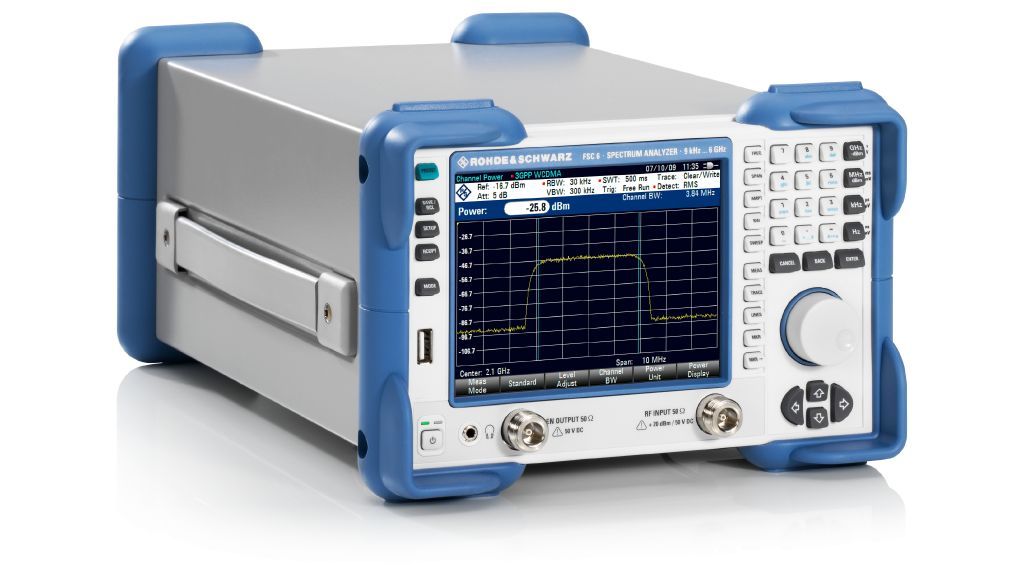

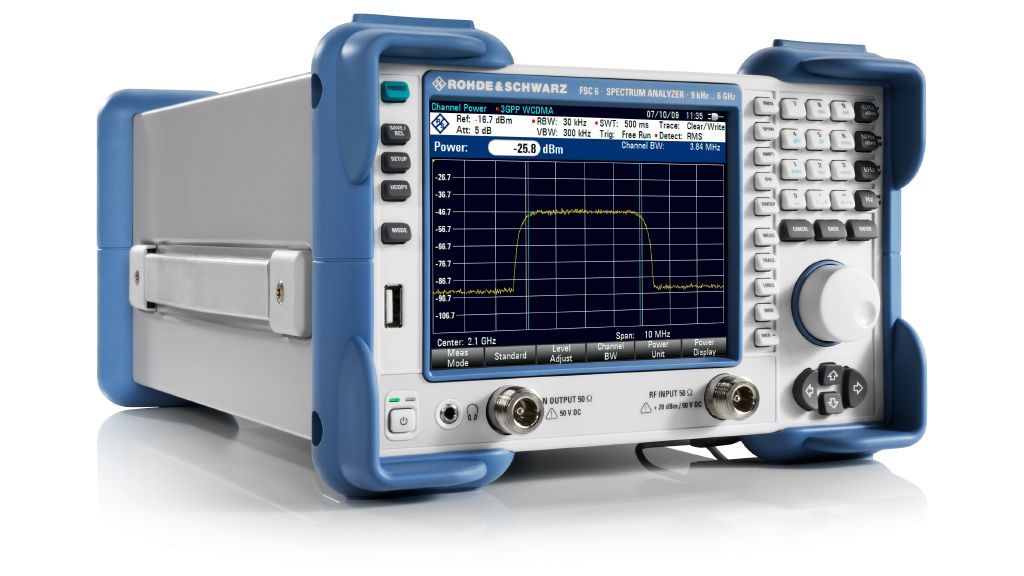

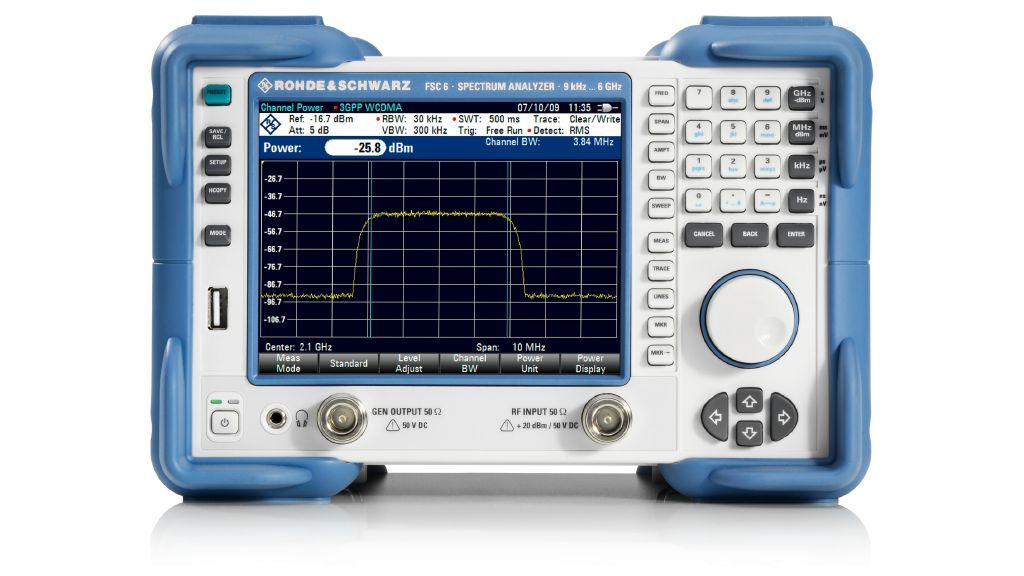

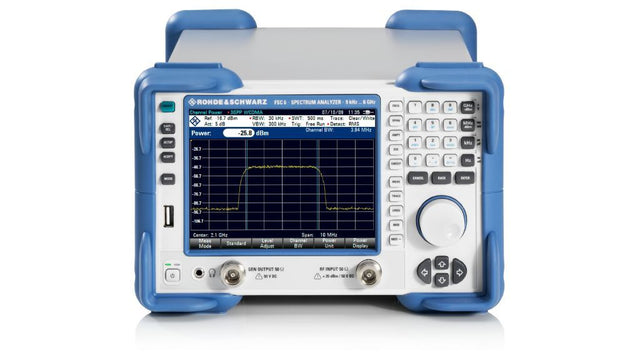

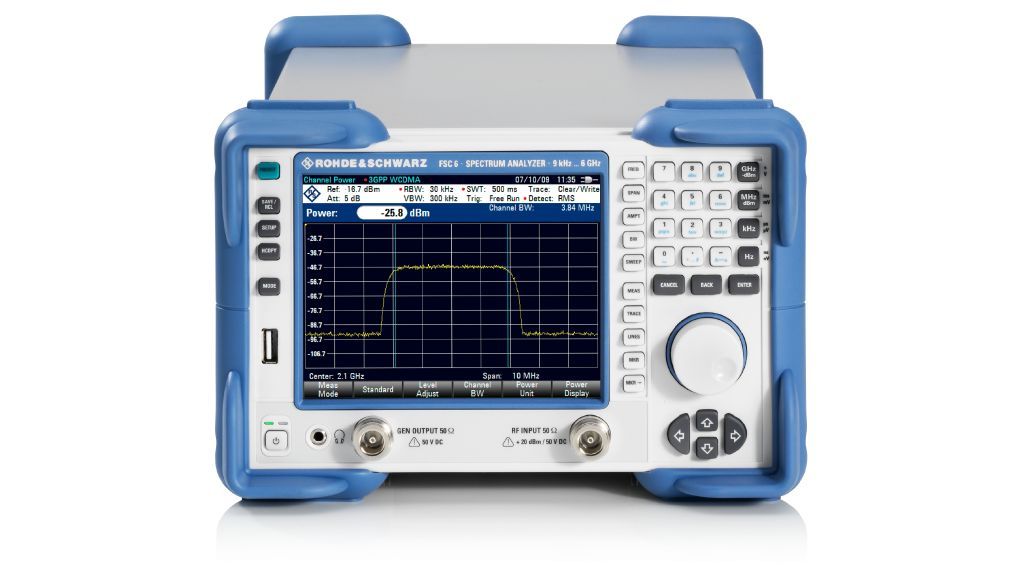

R&S® FSC6 - 6 GHz spectrum analyzer

PDF Brochure

Datasheet PDF
