Rigol  |  SKU: RSA3015N

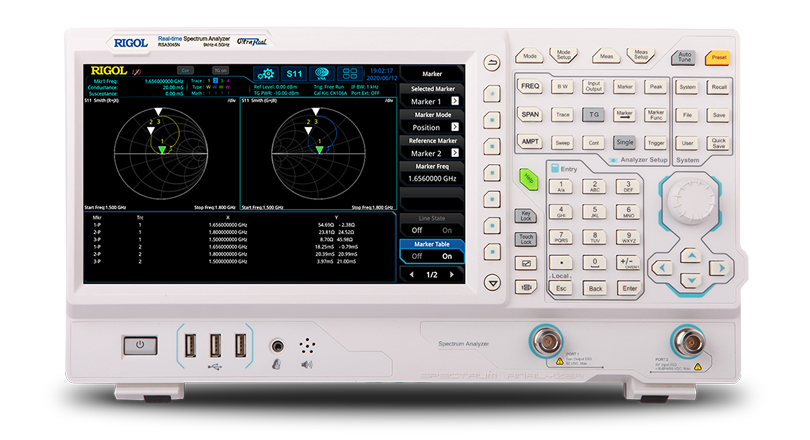

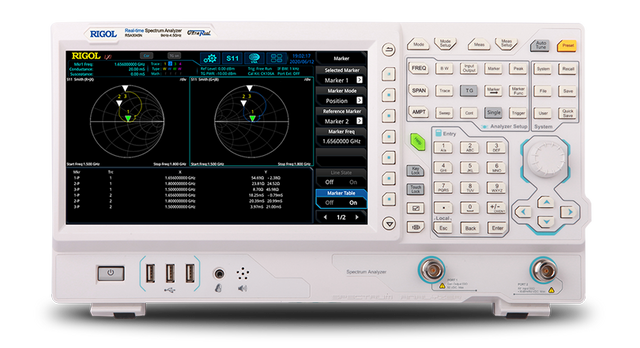

Rigol RSA3015N Real-time spectrum analyzer 9kHz~1.5GHz (includes TG and VNA)


The RSA3000 series , real-time spectrum analyzer integrates four measurement modes in a single instrument to most comprehensively address all the demands posed by recent and increasingly sophisticated RF test requirements.
In addition to the traditional GPSA mode, EMI, RTSA and VNA modes are offered. This tool reduces the time and cost of RF test development and with its performance greatly improves the development and testing of RF products. The 'user interface is clear and allows operation in several ways , front panel buttons , touch screen , mouse and keyboard. Remote communication interfaces are also available.
It is a very versatile tool and can be used with excellent results indifferently in education , R&D , industrial production .


Description

Measurement Mode
General-Purpose Spectrum Analyzer (GPSA)
Real-Time Spectrum Analyzer (RTSA)
EMI Measurement Application (EMI)
Vector Network Analyzer Application(VNA)





Features

Common models specifications:

MODEL: RSA3015N
freq. 9kHz~1.5GHz

-Ultra-Real technology
-Displayed average noise level (DANL): <-161 dBm (typical)
-Phase noise: <-102 dBc/Hz (typical)
-Level measurement uncertainty: <1.0 dB
-4.5 GHz tracking generator
-Up to 40 MHz real-time analysis bandwidth
-Multiple measurement modes
-Various advanced measurement functions
-EMI measurement application (option)
-Vector network analyzer application
-Multiple trigger modes and trigger masks
-Density, Spectrogram, and other display modes
-PC software options
-10.1'' capacitive multi-touch screen; supporting touch gestures
-USB, LAN, HDMI and other communication and display interfaces
