RSA5000-VSA "VSA Vector Signal Application" option for Rigol RSA5000 series spectrum analyzers

The VSA application is a comprehensive tool for demodulation and vector analysis of signals. It helps to analyze in detail every aspect of a signal . It allows finding the main causes of problems in the time, frequency and modulation domains. Measurement displays are editable and visible at the same time. The 'application is of fundamental help throughout the design cycle.

The 'option is chargeable and compatible with RSA5000 series spectrum analyzers . It is licensed through code provided by the parent company .

Description



Features

RSA5000-VSA Key Features

- Spectrum analysis based on Ultra Real
- I/Q waveform RF envelope analysis
- Flexible digital modulation analysis
- FMT trigger based on Ultra Real for acquisition and modulation analysis
- Measurement and analysis of wireless communication and wireless connection standards
- BER test for known signal sequences

Modulation formats

- FSK2,FSK4,FSK8
- MSK
- BPSK, QPSK, OQPSK ,DQPSK, 8PSK, π/4-DQPSK,
- π/8-D8PSK , D8PSK
- QAM16, QAM32, QAM64
- ASK2, ASK4

Cellular and wireless networking
- Cellular: GSM, NADC , W-CDMA, PDC, PHP(PHS)
- Wireless Networking: Bluetooth, WLAN(802.11b),
- ZigBee
- Others: TETRA, DECT, APCO 25

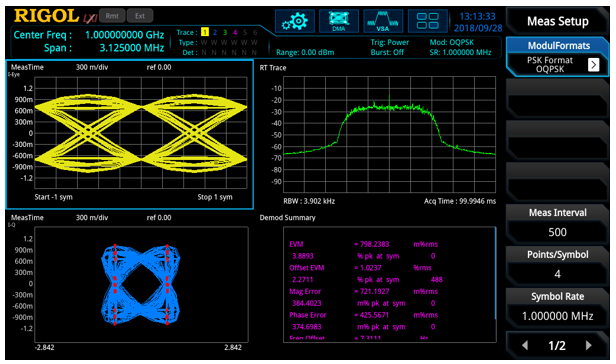

Traces and modulation analysis quality results display
- Signal amplitude in time domain
- Spectrum
- Eye diagram
- Constellation and vector diagram
- Error vector magnitude
- Quadrature error
- Amplitude error
- Phase error
