Rigol | SKU: RSA6140

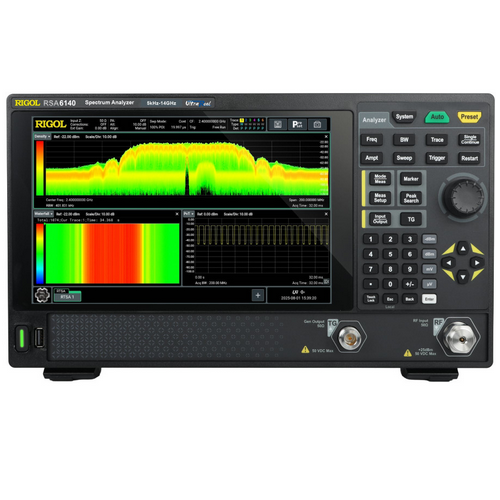

Rigol RSA6140 Real-time Spectrum Analyzer 5kHz~14GHz

Name: Rigol RSA6140 Real-time Spectrum Analyzer 5kHz~14GHz
Brand: Rigol
SKU: RSA6140
Price: 15999.00 EUR
Availability: InStock

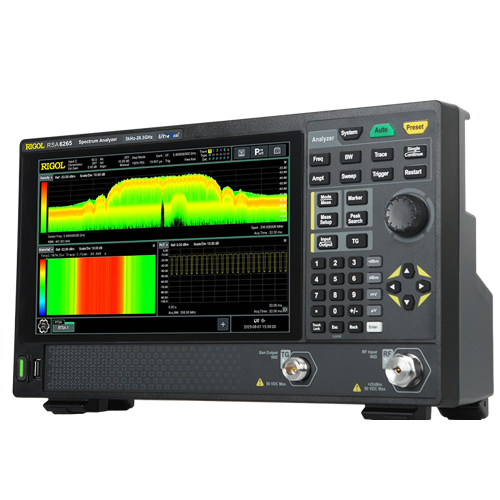

RSA6000 series is RIGOL's newly launched spectrum analyzer product. Its excellent performance in SFDR, phase noise, amplitude accuracy and test speed makes it applicable in various test scenarios such as spectrum analysis, real-time spectrum analysis, vector signal analysis, pulse analysis.
RSA6000 series real-time spectrum analyzer has a strong expansion capability, allowing you to build the test system or perform user-defined development via various digital and analog output interfaces. With its excellent performance and flexible configuration, it can meet your test demands in various application scenarios such as wireless communication, automobile electronics, Internet of Things (IoT), and etc.

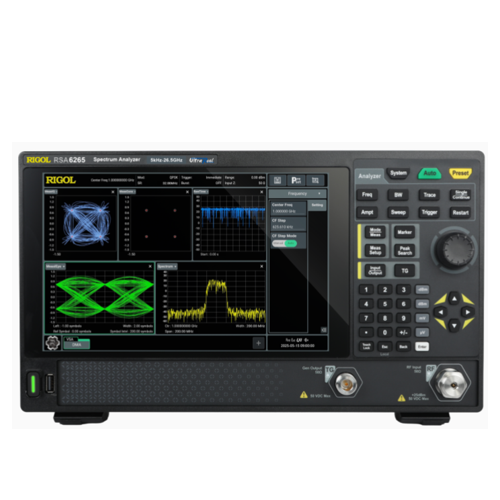

The RSA6000 Series Real-Time Spectrum Analyzer is equipped with real-time analysis (RTSA) and swept analysis (GPSA) functions, and offers optional vector signal analysis application software (VSA), analog signal analysis application software (ADM), and EMI measurement application software (EMI), boasting excellent performance and specifications.

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Description

Model	RSA6140
Frequency Range	5 kHz to 14GHz
Max. Analysis Bandwidth	80 MHz (Std.), 200 MHz (Opt.)
Max. Real-Time Bandwidth	80 MHz (Std.), 200 MHz (Opt.)
1 GHz Phase Noise	10 kHz offset, <-108 dBc/Hz (typ.)
Displayed Average Noise Level (DANL), Normalized from 1 GHz to 1 Hz	-143 dBm (typ.), with PA off , -163 dBm (typ.), with PA on
RBW	1 Hz to 10 MHz
VBW	1 Hz to 10 MHz
Third-order Intercept (TOI) 1GHz	+15 dBm (typ.)
Amplitude Range	DANL to +25 dBm (single-tone)

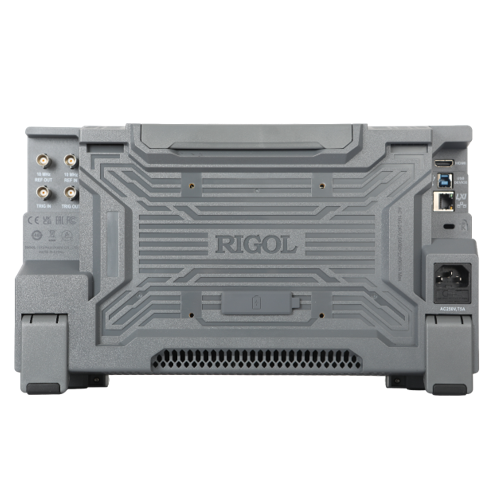

I/O	LAN, USB, and HDMI
Screen	10.1'' capacitive multi-touch screen
Programming Control Instruction Sets	Supports SCPI commands control, compatible with Keysight PXA series commands

Features

RSA6000 series features

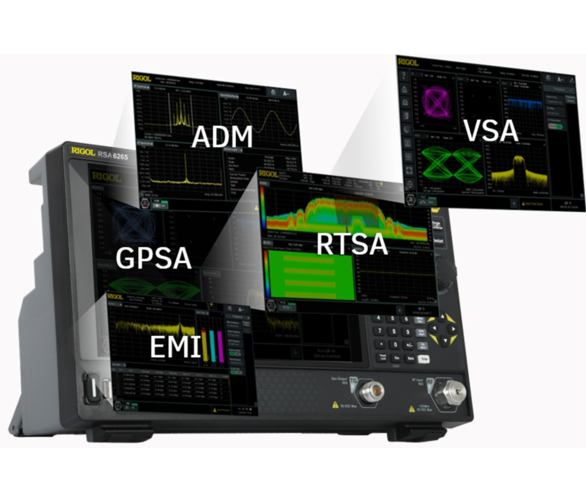

• Five working modes: GPSA, RTSA, VSA, EMI, and ADM
• Frequency range: 5 kHz to 26.5 GHz
• Excellent DANL (Displayed Average Noise Level)
• Good phase noise performance
• High-precision amplitude measurement error
• Multiple analysis bandwidth options
• Excellent SFDR
• Powerful real-time spectrum analysis function
• Display different types of measurement values in multi-pane windowing form
• Support USB, LAN, and HDMI interfaces
• Support standard SCPI instruction sets
