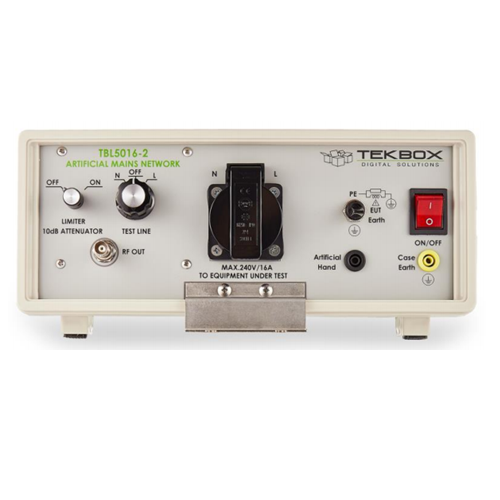

TekBox TBL5016-2 50UH LISN (line impedance stabilization network) - CISPR 16-1-2

The TBL5016-2 is a line impedance stabilization device . It performs measurement of conducted line interference in the range of 9 kHz to 30 MHz, according to the CISPR 16-1-2 standard.
The device is designed to test single-phase AC-powered equipment with supply voltages up to a maximum of 240 V and 16 A.
Conducted noise on the phase and neutral conductor can be measured. The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial manual connection.
The device is available with country-specific DUT sockets.

Features

• Frequency range: 9 kHz to 30 MHz
• Impedance: 50 Ω ║ (50 µH + 5 Ω)
• Artificial hand: 220 pF + 511 Ω
• Switchable PE: 50 Ω ║ 50 µH
• Limiter / attenuator: 150 kHz to 30 MHz; 10 dB
• Air core inductors
• Line voltage: max. 240V / 50 - 60 Hz, CAT ‖‖
• Max. current: 16A @ 23°C
• DUT socket: country specific
• Measurement connector: 50 Ω BNC
• Power connector: IEC 60320 C19
• Operating Temperature Range: +5°C to + 40°C; 5% to 80% RH
• Safety: Safety Class I, IEC 1010-01
