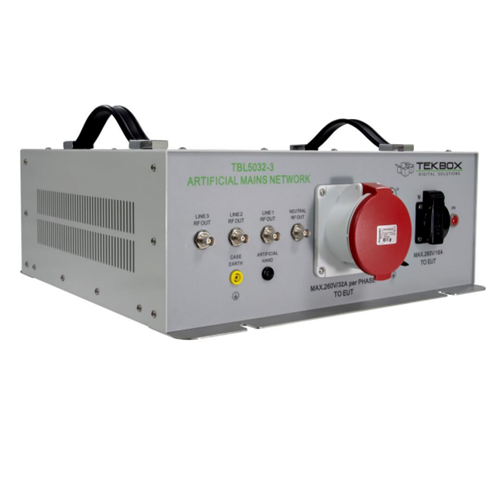

TekBox TBL5032-3-EU 50μH LISN (single and three phase) - CISPR 16-1-2 450V/260V, 32A

The TBL5032-3 is a line impedance stabilization device . It performs measurement of conducted line interference in the range of 9 kHz to 30 MHz, according to the CISPR 16-1-2 standard.
The device is designed to test three-phase and single-phase AC-powered equipment with supply voltages up to a maximum of 450V/260V and 32 A.
Conducted noise can be measured on each phase and neutral conductor. The TBL5032-3 has separate RF outputs for each phase and neutral and consequently can be coupled with the TBLM1 to split emissions into its common mode and differential mode components.
The device is available with country-specific DUT sockets.
The single-phase DUT socket is available in country-specific variants.

Features

• Frequency range: 9 kHz to 30 MHz
• Impedance: 50 Ω ║ (50 µH + 5 Ω)
• Artificial hand: 220 pF + 511 Ω
• Switchable PE: 50 Ω ║ 50 µH
• 250µH pre-filter
• Separate RF outputs for each line and neutral
• Air core inductors
• Line voltage: max. 540V/260V / 50 - 60 Hz, CAT ‖
• Max. current per line and neutral: 32A @ 23°C each
• 3-phase DUT socket: CEE/IEC60309, 3L+N+PE, 32A, female
• Single-phase DUT socket: country specific
• Power connector: CEE/IEC60309, 3L+N+PE, 32A, male
• Measurement connectors: 50 Ω BNC
• External 9 kHz high pass filter, N-male / N-female
• Operating Temperature Range: +5°C ... + 40°C; 5% to 80% RH
