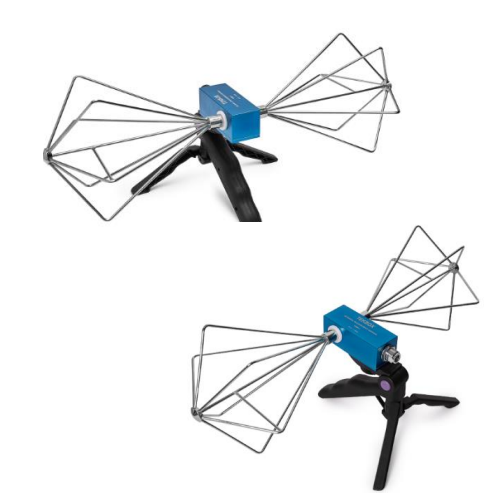

TekBox TBMA1 Biconical Measurement Antenna 30MHz - 1000 MHz

Description

The TBMA1 is a small, lightweight, broadband biconical antenna. Its features and The modest price make it ideal for pre-compliance testing of EMC radiated noise .
It features an antenna for frequencies from 30 MHz to 1 GHz and has a dipole-like directional pattern.

Specifications:

  • Type: passive biconical
  • Frequency range: 30 MHz - 1000MHz
  • Nominal impedance: 50 Ω
  • Maximum continuous input RF power: 2 W
  • Connector: N type female
  • Isotropic gain: -42.15 ... 1.78 dBi
  • Antenna factor: 16.30 ... 41.91 dB/m
  • Voltage Standing Wave Ratio (VSWR) Max < 2.8
  • Length: 430 mm (17 ") tip-to-tip
  • Diameter: 160 mm (6.3 ")
  • Depth: 163 mm (6.4 ") including housing
  • Weight: 0.46 kg (1.01 lbs)
  • Tripod Adapter Thread Size: ¼"
