The right bench DC power supply is the one that matches your actual voltage and current envelope, not the one with the most channels on the spec sheet. A lab that mostly powers 12 to 24 V digital and analog prototypes has very different needs from one that regularly pushes 150 V or more into a motor drive or a DC-DC converter under test, and the wrong choice shows up as either wasted budget or a supply that cannot cover the next project.
What Multi-Range Means in Practice

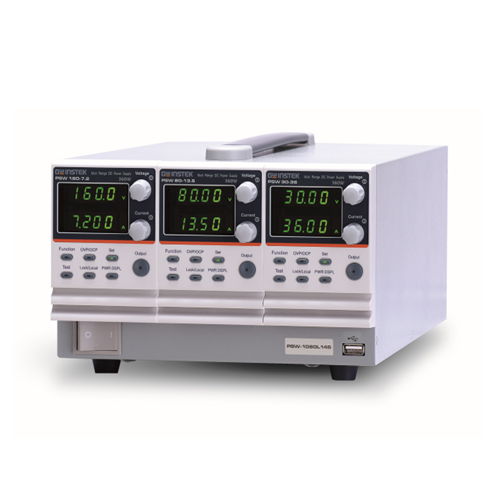

A «multi-range» bench supply does not give you unlimited voltage and current at the same time. Instead, it works within a fixed total power budget and lets each channel trade voltage for current inside that budget, which is what makes a single unit useful across several project types instead of one. The GW Instek PSW-1080L555 is a good example: three independent channels, each rated 160 V / 7.2 A, sharing a 1080 W total output. Other models in the same family redistribute that same 1080 W budget differently across the three channels, for example the PSW-1080L445 (80 V / 13.5 A on two channels, 160 V / 7.2 A on the third) or the PSW-1080L255 (40 V / 27 A on one channel for high-current, low-voltage work, 160 V / 7.2 A on the other two).
Matching the Model to the Bench
- High-current, low-voltage work (LED strings, battery-powered prototypes, motor windings): a channel configuration like the PSW-1080L255's 40 V / 27 A range gives you current headroom without paying for voltage you will not use.
- Mixed-signal benches that need one channel for a digital core and two for analog rails at different voltages: the three-channel layout lets you power a whole board from a single instrument instead of stacking supplies.
- Higher-voltage design work (power electronics prototyping, DC-DC converter input rails): the 160 V channels cover most bench-level work without stepping up to a dedicated high-voltage source.
Why Independent Channels Matter
Three genuinely independent channels mean you are not sharing a single regulation loop across your whole board, so noise or a transient on one rail does not couple into another the way it can when a single-output supply is split with an external network.
What to Check Before You Buy
Beyond the voltage and current numbers, two things are worth confirming before ordering: whether the model's fixed channel combination actually matches your target application, since the PSW-1080L range covers several combinations precisely so you are not forced to over-spec, and whether you need remote programming for automated test sequences rather than manual bench use.
